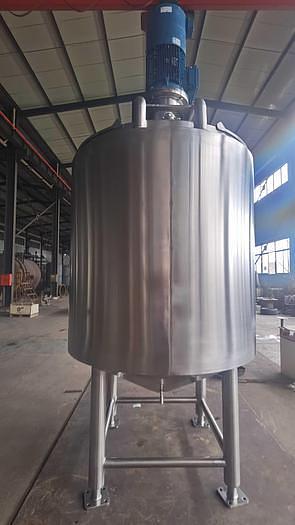

Customized 600 USG mixing tank with sweep and disperser agitator

600 USG working capacity

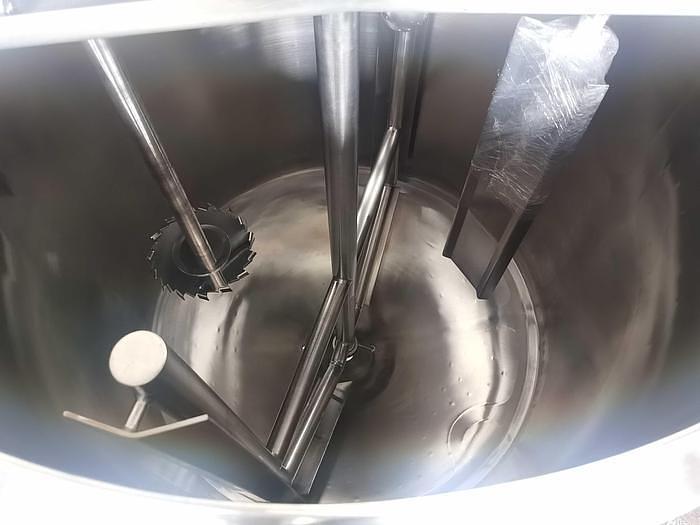

Surface #4 finish. Heat transfer surface: Side and bottom stainless steel dimple jacket for water/oil heating/cooling with ASME stamp at 75 Psi. Insulation: Rock wool 2" thick. Triple Agitation: one is side and bottom scraper blade type with 10HP 29 RPM; the second one is paddle type with 4HP 54RPM, the third one is high shear disperser type with 30HP 1750RPM. Motor: UL listed brand. Tank Top: Inverted cone with 15 degree slope head with double open hinged lids, CIP cleaning. Tank Bottom: Conical with 15 or 30 degree slope and center outlet. Legs: Adjustable stainless steel legs. Inlet/Outlet Ports: Sanitary clamp connections.

Delivery time: 3 months
