25 USG commercial tilting jacketed kettle with double agitators
25 USG commercial tilting jacketed kettle with double agitators
Contact us for price
Location:Ontario, CA
or
Call +1(626)320-2070
Description

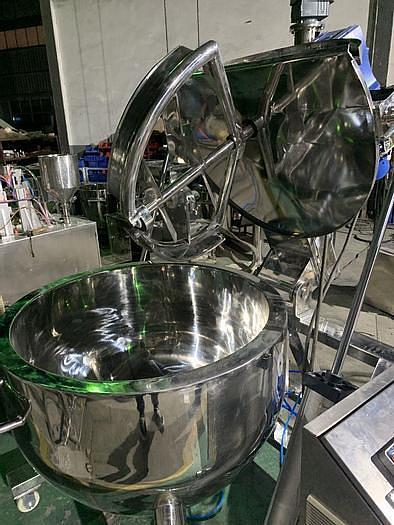

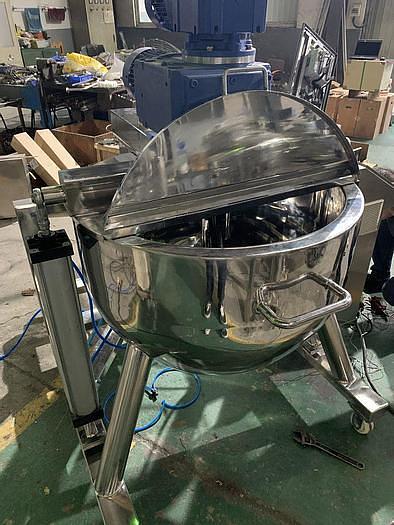

New 25 Gallon 304 SS Kettle - Jacket rated for 95 degree C hot oil - Hemispherical style kettle with Tri-leg configuration with flanged feet, - 2" bottom center flush mount ball valve - Single motion side and bottom scraper agitator - Secondary agitator paddle type with own motor - Tilt out agitator air operated rated for 6Mpa
Specifications
| Manufacturer | Hongda |
| Model | Tilting kettle |
| Year | 2021 |
| Condition | New |
| Jacket | Hot oil jacket rated for 90 degree C |
| Mixers | Single motion side and bottom scraper agitator, secondary agitator paddle type with own motor |
| Agitator | Tilt out agitator air operated rated for 6Mpa |
| Drive | Control panel with two AC drives: one for each agitator |
| Insulation | Insulation added to outside of kettle |
| Motors | Two motors a are 2HP at 45 rpm and 3HP at 31 RPM |
| Voltage | 3 phase, 60 cycle, 220 volts |
| Others | (2) locking casters and (2) swivel casters |
| Material | 304 SS |
