New 150 USG Steam Jacketed Dual Mixing Kettle in stock in Ontario, CA, USA

New 150 USG Steam Jacketed Dual Mixing Kettle in stock in Ontario, CA, USA
Contact us for price
Location:Ontario, CA
or
Call +1(626)3202070
Description

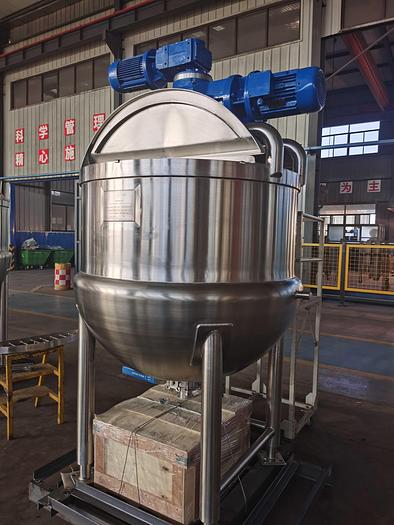

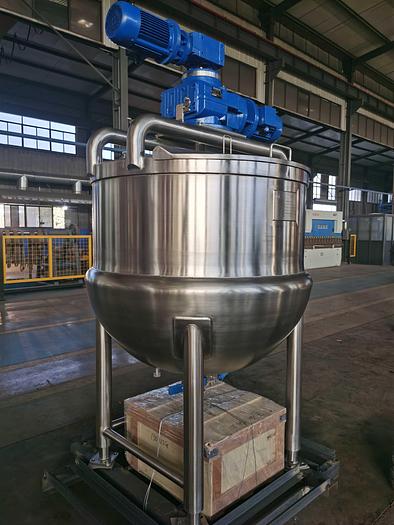

This Hemispherical Kettle is designed for optimal hygiene and efficient performance. Built with 316 stainless steel for all product-contact areas and 304 stainless steel for non-contact components, it ensures both durability and sanitary conditions.
Key Features:

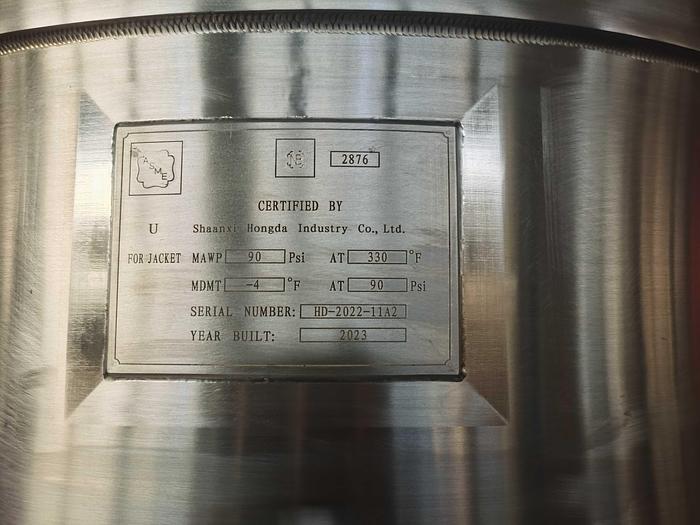

- ASME-U Certified Steam Jacket – Rated at 90 Psi, NB registered, with steam in and condensate out.

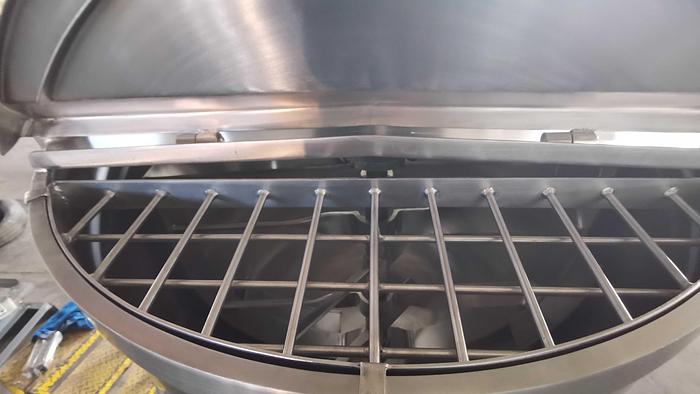

- Safety Grate & RTD Sensor – For enhanced safety and precise temperature monitoring.
- Sturdy Kettle Body – Featuring a four-leg configuration with flanged feet for added stability.
- Efficient Discharge – 3” bottom flush mount ball valve for easy drainage.

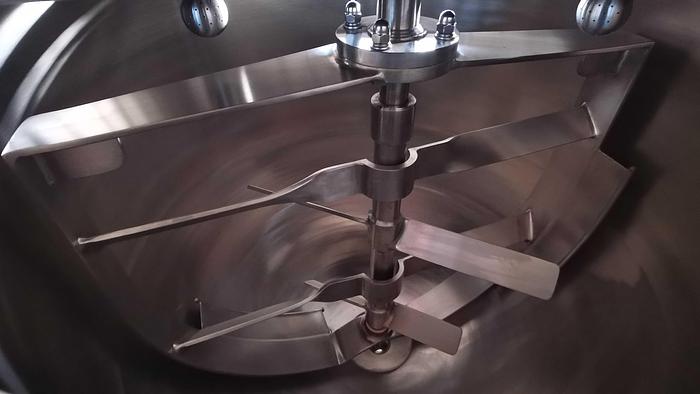

- Bridge-Mounted Agitation – Equipped with scraping surface and paddle-type agitation for consistent mixing.
- Heavy-Duty Dual Drive:
- 3 HP three-phase motor (230/460V, 60HZ) with UL listing – Current rating: 230V 8.4A, 208V 9.3A.
- 2 HP three-phase motor (230/460V, 60HZ) with UL listing – Current rating: 230V 6A, 208V 6.6A.
- Tri-Clamp Additive Ports – For easy addition of ingredients.
- Stainless Steel Hinged Cover – Durable and easy to access from both sides.

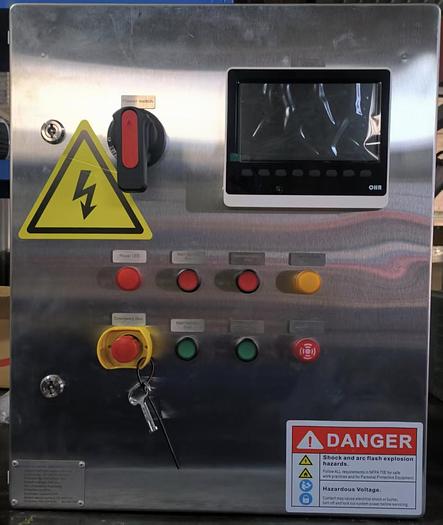

- Pre-Wired Controller – Uses 230V three-phase power for easy installation.
- Digital Temperature Recorder – With solenoid steam valve control for precise operation.
- Safety Interlock and Emergency Stop – For maximum user protection.
- Overcurrent Protection – To prevent electrical damage.
Specifications
Manufacturer | Hongda |
Model | Kettle |
Year | 2025 |
Condition | New |
Stock Number | 1 |
Material | Stainless steel 316 for product contact area, 304 for other parts. |
Heat transfer | Jacket rated at 90 Psi with ASME-U stamped and NB registered. CRN Optional. |
After-sales service | 2 Year warranty |
Surface treatment | Sanitary internal polished finish |
Drive | UL listed drive |
Agitator | Coaxial double agitators, Scraping and Paddle type. |
Controller | Inlcuded, digital temperature recorder, solenoid steam valve control feature. |
CIP cleaning | Spray balls included |
Discharge | Flush mount ball valve, Pneumatic operate optional |
Termperature sensor | Flush mount RTD sensor |
Safety | With safety grate. |
Packing size | 53"*53"*98" 2094lbs |
Optionals | Brake wheels, Steam regulating valve Controller |
