New 100 USG Steam Jacketed Automatic Tilting Kettle in stock in Ontario, CA, USA

New 100 USG Steam Jacketed Automatic Tilting Kettle in stock in Ontario, CA, USA

Contact us for price

Location:Ontario, CA

Description

Hongda provides complete processing and packaging equipment and solutions, with robotic integration for fully automated production lines. Learn more at www.hongdaamerica.com.


*Hemispherical style kettle.

*Sanitary configuration.

*Constructed of stainless steel 304.

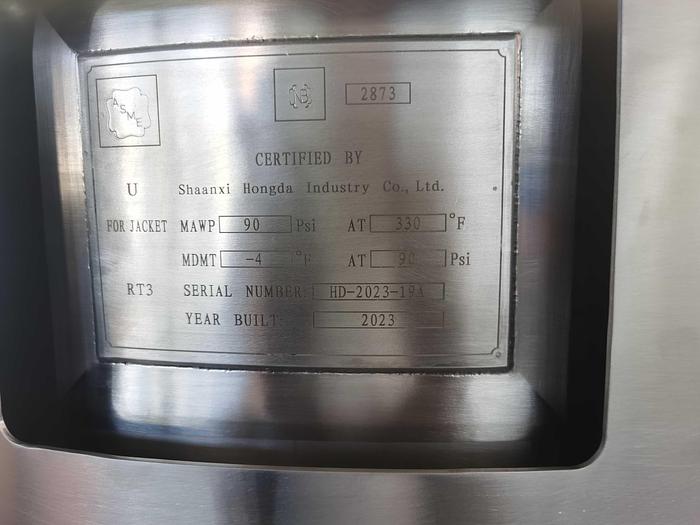

*Steam jacket is ASME-U Stamped at 90 Psi and NB registered.  Equipped with steam in, condensate out.

*With safety grate and flush mount RTD sensor

*Kettle body to have four legs configuration with flanged feet.

*Kettle body to have 3" center bottom flush mount ball valve discharge.

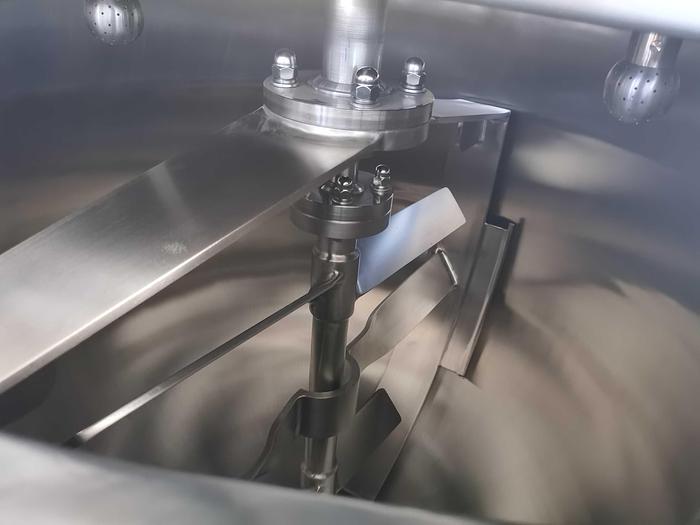

*Agitation is bridge mounted. scraping surface and paddle type.

*Heavy Duty drive

-2 HP three phase, 230V 60HZ UL listed Drive.

-3 HP three phase, 230V 60HZ UL listed Drive.

*Tri‐Clamp type additive ports.

*Stainless steel, hinged cover on both sides.

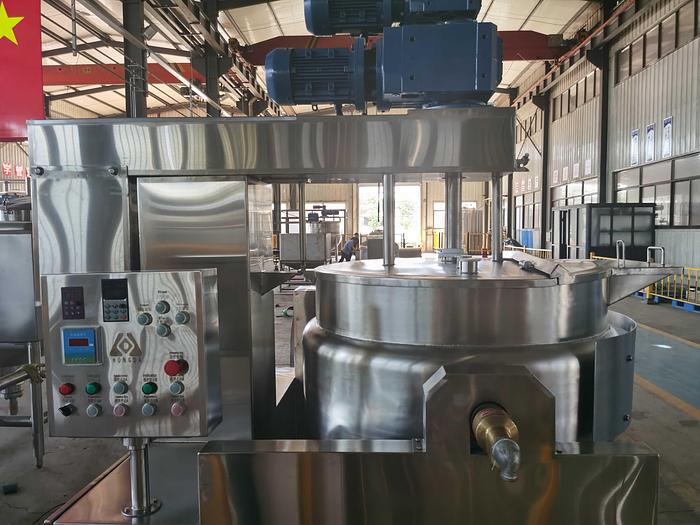

*Controller included, pre-wired using 230V three phase power.

*Digital temperature recorder, solenoid steam valve control feature.

*Safety grate interlock.

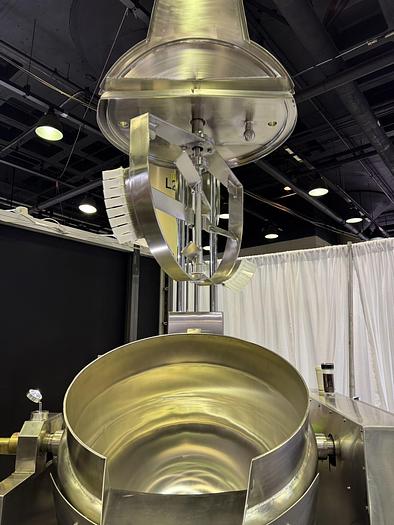

*Agitator could be lifting out of the kettle and kettle body tilting for discharge.

*Emergency Stop.

*Overcurrent protection.


Specifications

ManufacturerHongda
ModelKettle
Year2023
ConditionNew
Serial NumberKettle-100
Stock Number1
OptionalsBrake wheels, Steam regulating valve Controller
Packing size87"*71"*81" 2204lbs
SafetyWith safety grate.
Termperature sensorFlush mount RTD sensor
DischargeAutomtatic tilting for discharge
ControllerInlcuded, digital temperature recorder, solenoid steam valve control feature.
AgitatorOne agitator is scraper blade type, the other is offset Paddle type.
Surface treatmentSanitary internal polished finish
Heat transfer surfaceJacket rated at 90 Psi with ASME-U stamped and NB registered. CRN Optional.
Stock number1
ConditionNew
Year2023
ModelKettle
ManufacturerHongda
