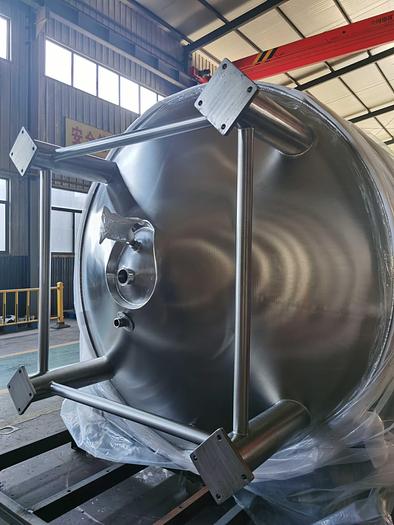

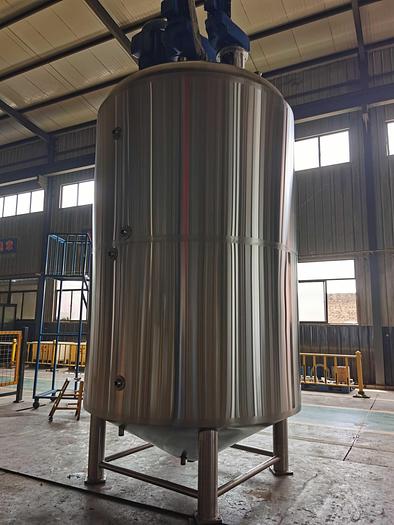

2024 New Customized 2500 USG vacuum triple agitation high shear emulsion tank

Hongda provides complete processing and packaging equipment and solutions, with robotic integration for fully automated production lines. Learn more at www.hongdaamerica.com.

Interior Construction: 316L Stainless Steel, with RA25 finish. Exterior Construction: 304 Stainless Steel, with RA28-32 finish.

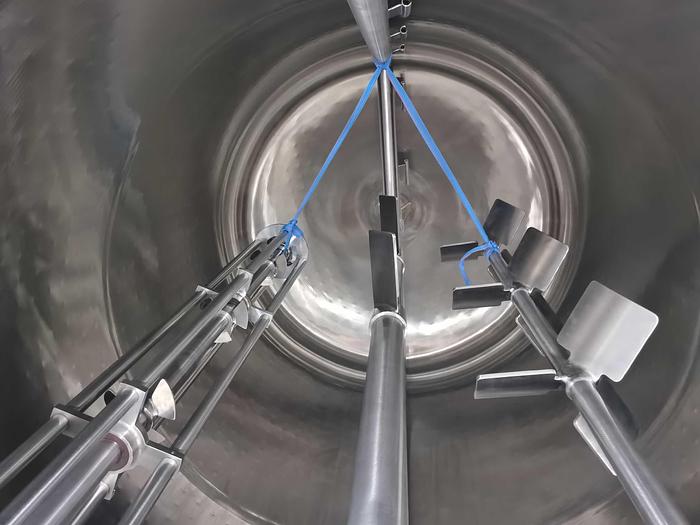

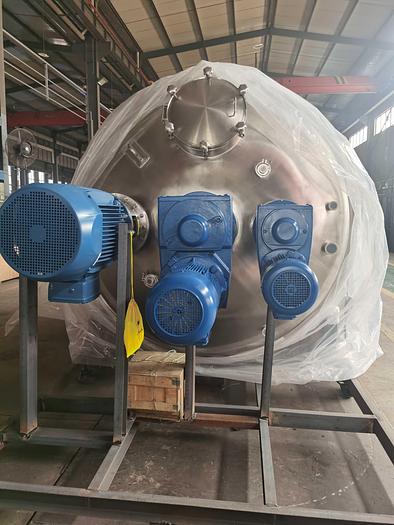

Full Vacuum. Working capacity: 2500 gallon. Heαt Transfer Surface: Side and bottom stainless steel dimple jacket rated for 75 psi and NB registered.  Insulation: Rock wool 2" thick, with outer sheathing. Agitation: double agitator, one is scraper blade type(20HP 27RPM), another is paddle type(10HP 55RPM).

Emulsion mixer: 50HP 1750 RPM high shear emulsion.

Dished top with cone bottom.

Inlet/Outlet Ports: Sanitary Clamp Connections.
