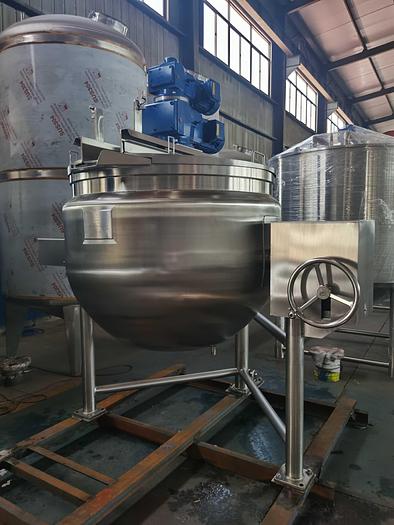

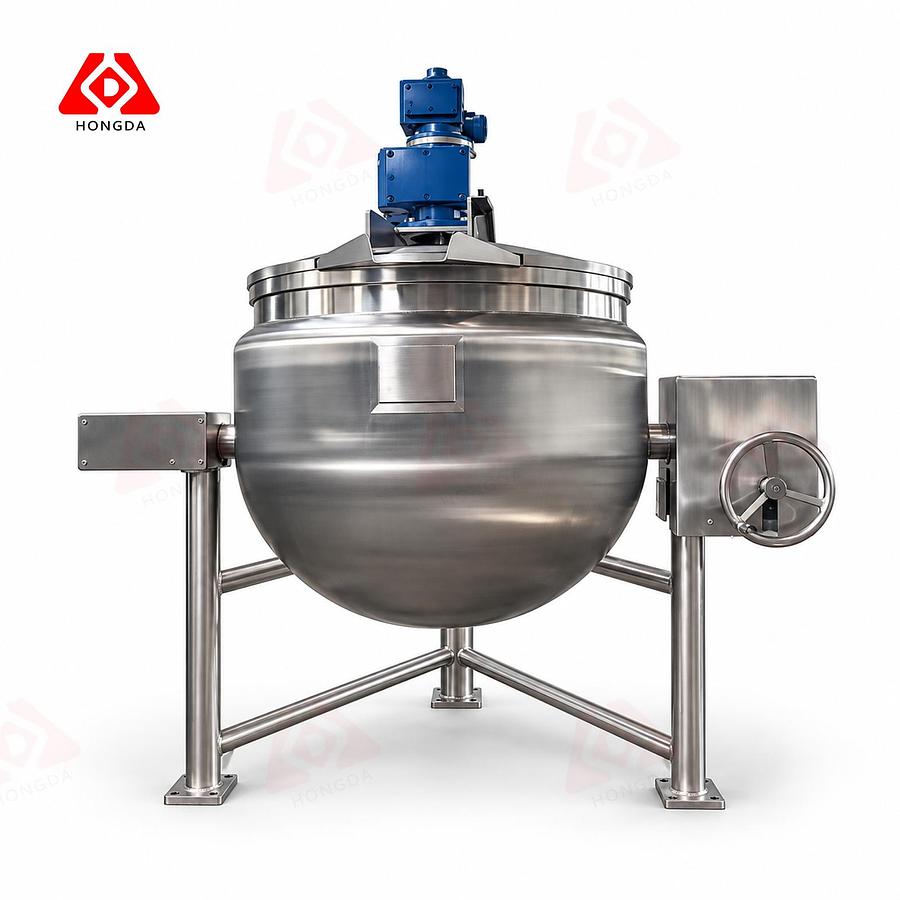

150 USG Tilting Steam Jacketed Mixing Kettle

Hongda provides complete processing and packaging equipment and solutions, with robotic integration for fully automated production lines. Learn more at www.hongdaamerica.com.

This Hemispherical Kettle is designed for optimal hygiene and efficient performance. Built with 316 stainless steel for all product-contact areas and 304 stainless steel for non-contact components, it ensures both durability and sanitary conditions.

Key Features:

• ASME-U Certified Steam Jacket – Rated at 90 Psi, NB registered, with steam in and condensate out.
• Safety Grate & RTD Sensor – For enhanced safety and precise temperature monitoring.
• Sturdy Kettle Body – Featuring a four-leg configuration with flanged feet for added stability.
• Efficient Discharge – 3” bottom flush mount ball valve for easy drainage.
• Bridge-Mounted Agitation – Equipped with scraping surface and paddle-type agitation for consistent mixing.
• Heavy-Duty Dual Drive:
• 3 HP three-phase motor (230/460V, 60HZ) with UL listing – Current rating: 230V 8.4A, 208V 9.3A.
• 2 HP three-phase motor (230/460V, 60HZ) with UL listing – Current rating: 230V 6A, 208V 6.6A.
• Tri-Clamp Additive Ports – For easy addition of ingredients.
• Stainless Steel Hinged Cover – Durable and easy to access from both sides.

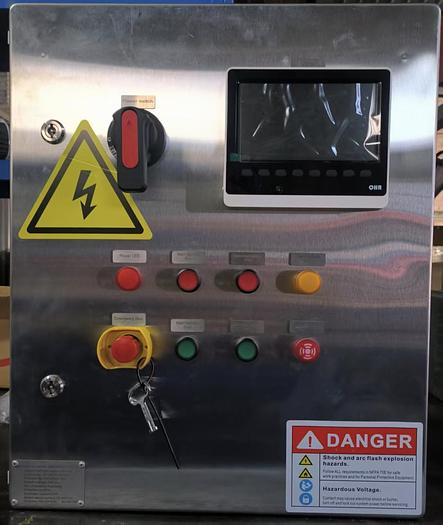

• Pre-Wired Controller – Uses 230V three-phase power for easy installation.
• Digital Temperature Recorder – With solenoid steam valve control for precise operation.
• Safety Interlock and Emergency Stop – For maximum user protection.
• Overcurrent Protection – To prevent electrical damage.
