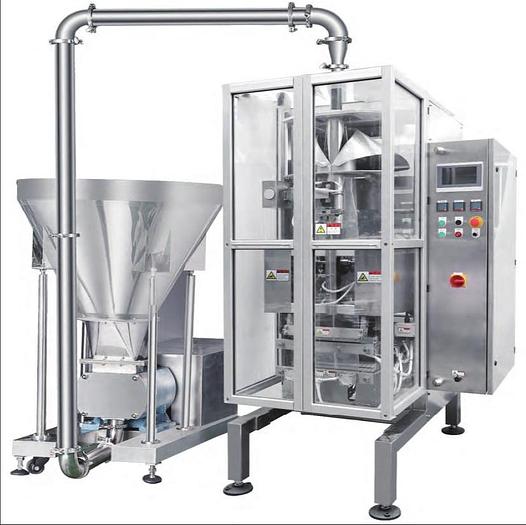

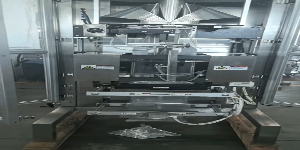

YL400 Vertical Film Fill Seal Packaging Machine for Sauce/Liquid
YL400 Vertical Film Fill Seal Packaging Machine for Sauce/Liquid
Contact us for price
Location:Ontario, CA
Description
Hongda provides complete processing and packaging equipment and solutions, with robotic integration for fully automated production lines. Learn more at www.hongdaamerica.com.
This machine is suitable for packaging liquid soups, sauces, cosmetics, liquid detergents, and other similar materials.

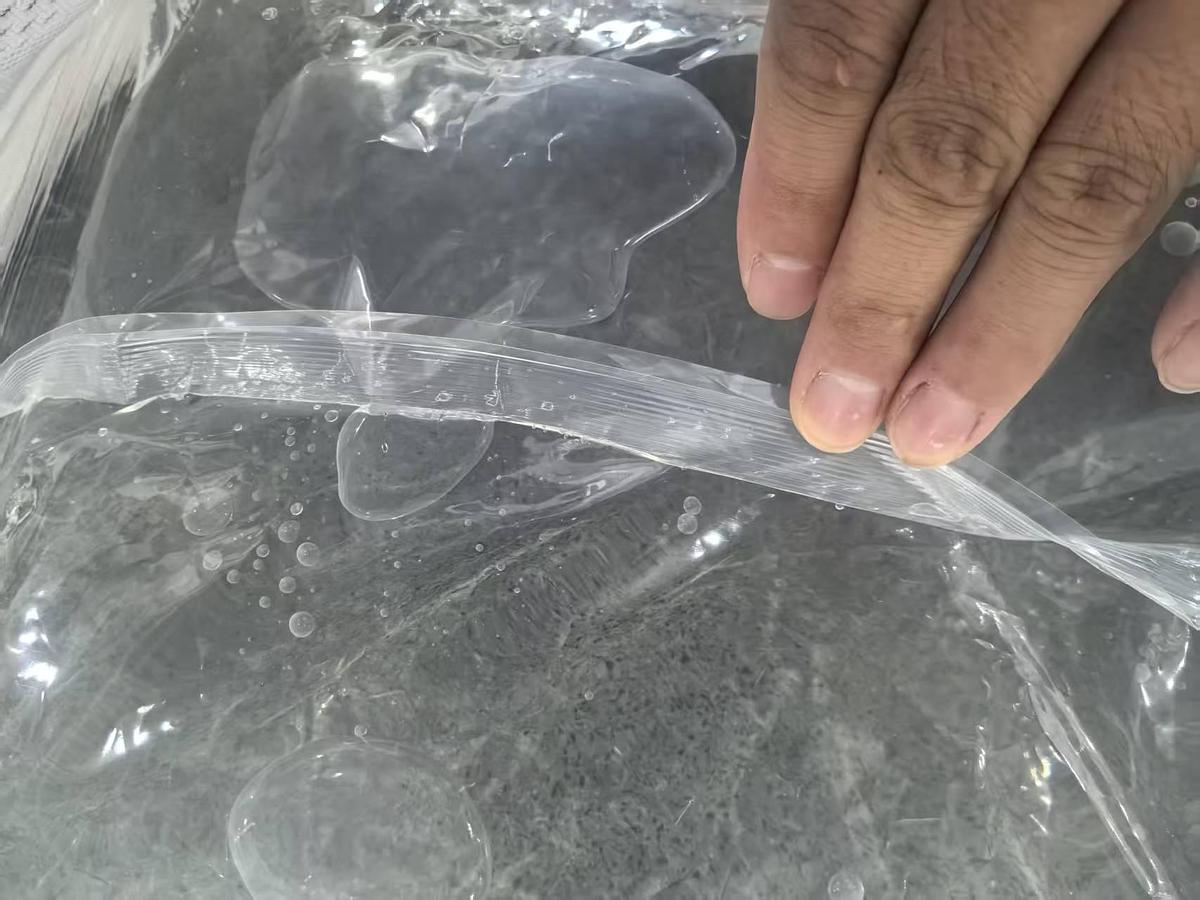

➢ The machine has good sealing properties, clear sealing, fast operation, compact structure,
stable performance, and low noise.
➢ The main structure is sturdy with a multi-language human-machine interface.
➢ Capable of automatically measuring, forming bags, filling, and packaging various pure
liquids, general viscosity, and high-viscosity materials.
➢ Uses imported electrical and pneumatic components with an independently sealed design
structure, ensuring durability.
➢ User-friendly film placement mechanism for easy operation.
➢ Adopts extrusion air removal packaging method with a broad range of adaptable packaging
specifications.

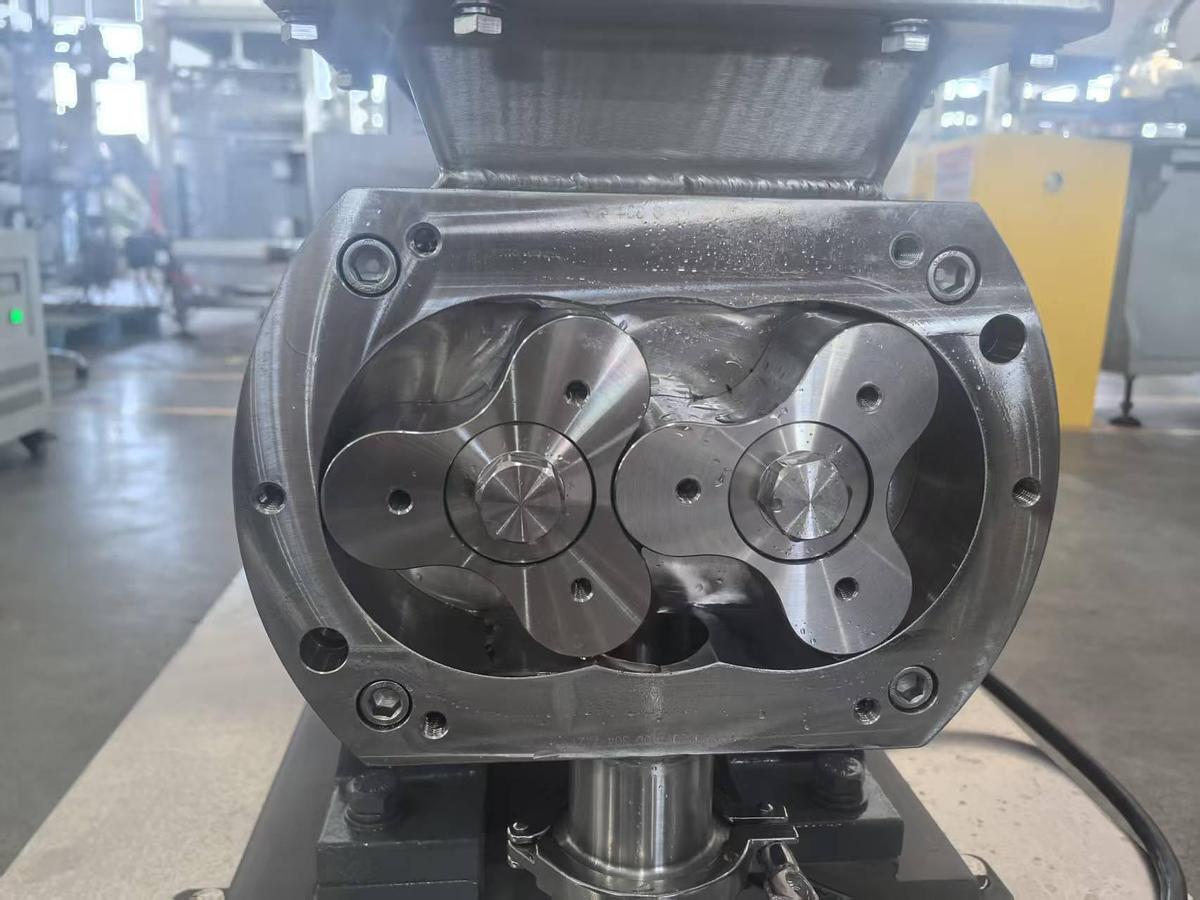

➢ Can be optimally combined with various types of filling systems.
Specifications
| Manufacturer | Hongda |
| Model | Vertical Packaging Machine |
| Year | 2025 |
| Condition | New |
| Stock Number | 2 |
| Packaging Speed (packs/min) | 4-20 |
| Filling Material | Liquid, High-viscosity Material |
| Filling Capacity (g) | 500-5000 |

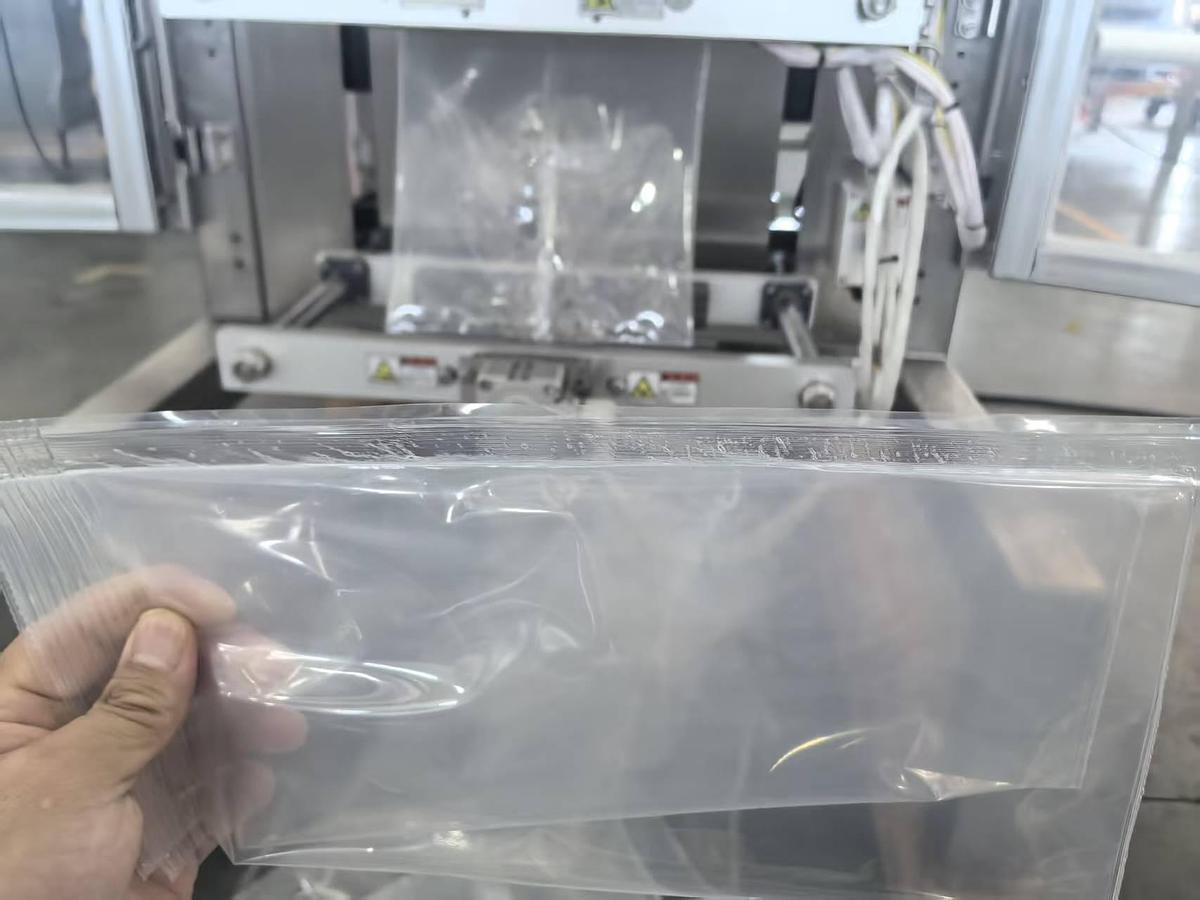

| Packaging Type | Pillow Bag (Back Seal), Rhombus Bag |
| Packaging Parameters (mm) | Bag Length:100-450, Bag Width:105-260 |
| Total Power (kW) | 4 (excluding filling system) |
| Machine Net Weight (kg) | Approx. 700 |
| Machine Noise (dB) | ≤75 |
| Compressed Air Consumption | 6kg/cm³ 300L/min |

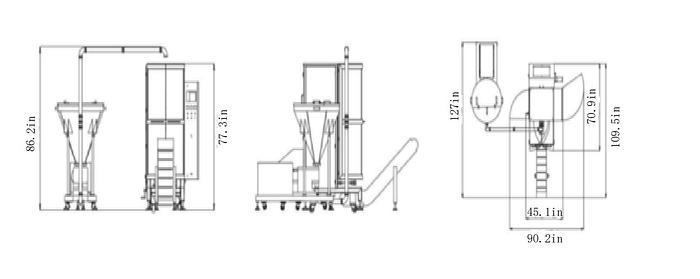

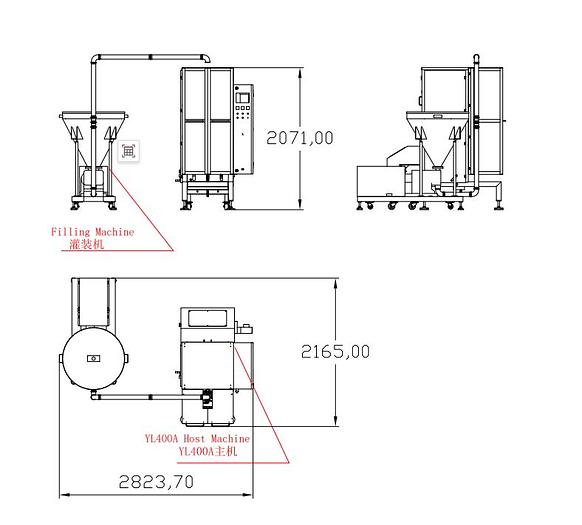

| Main Machine Dimensions (LWH) (mm) | Approx. 180011501960 |
| Power Supply Type | 230V 3-Phase 50/60HZ |
