Inkjet Date Coding Machine S6610
Inkjet Date Coding Machine S6610
Contact us for price
Location:Ontario, CA
or
Call +1(626)320-2070
Description
Hongda provides complete processing and packaging equipment and solutions, with robotic integration for fully automated production lines. Learn more at www.hongdaamerica.com.
Product Features:
- Refillable Ink System: Built-in filtration system for convenient ink and makeup refilling.
- User-Friendly Interface: 8-inch color touchscreen with multilingual support.
- Auto-Heated Printhead: Maintains a stable temperature and helps prevent condensation.
- Easy Maintenance: Simplified ink system allows quick cleaning and servicing.
- Reliable Performance: Designed for continuous operation with reduced downtime.
- Flexible Coding: Prints text, dates, batch numbers, logos, and other production information.

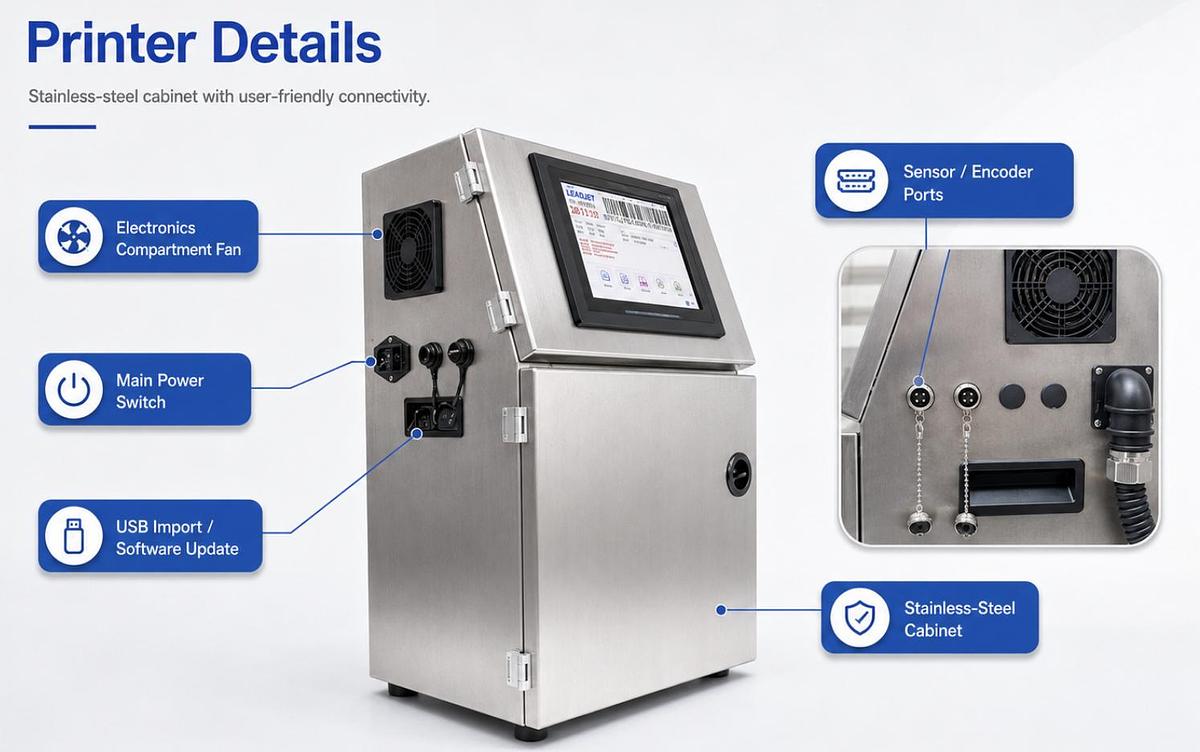

Printer Details:
- Stainless steel cabinet for durability and easy cleaning
- Cooling fan for stable electronic performance
- USB port for image import and software updates
- Sensor and encoder support for accurate print positioning
Font Matrix Configuration：
- 1 Line: 5×5 to 24×32
- 2 Lines: 5×5 to 10×16
- 3 Lines: 5×5 to 7×9
- 4 Lines: 5×5 or 5×7
- 5 Lines: 5×5
Specifications
| Year | 2026 |
| Condition | New |
| Stock Number | 42 |
| Line Speed | Up to 984 ft/min for 1–4 lines |
| Language | Multiple languages supported |
| Character Height | 0.06–0.79 in; recommended: 0.39 in |
| Message Storage | Up to 1000 messages |
| Maximum Print Distance | 1.18 in |
| Display | 8-inch touch screen |
| Logo and Graphics | Created directly on the printer or imported via USB |
| Interfaces | USB, encoder, and sensor |
| Printhead Umbilical Length | 8.9 ft; custom lengths available |

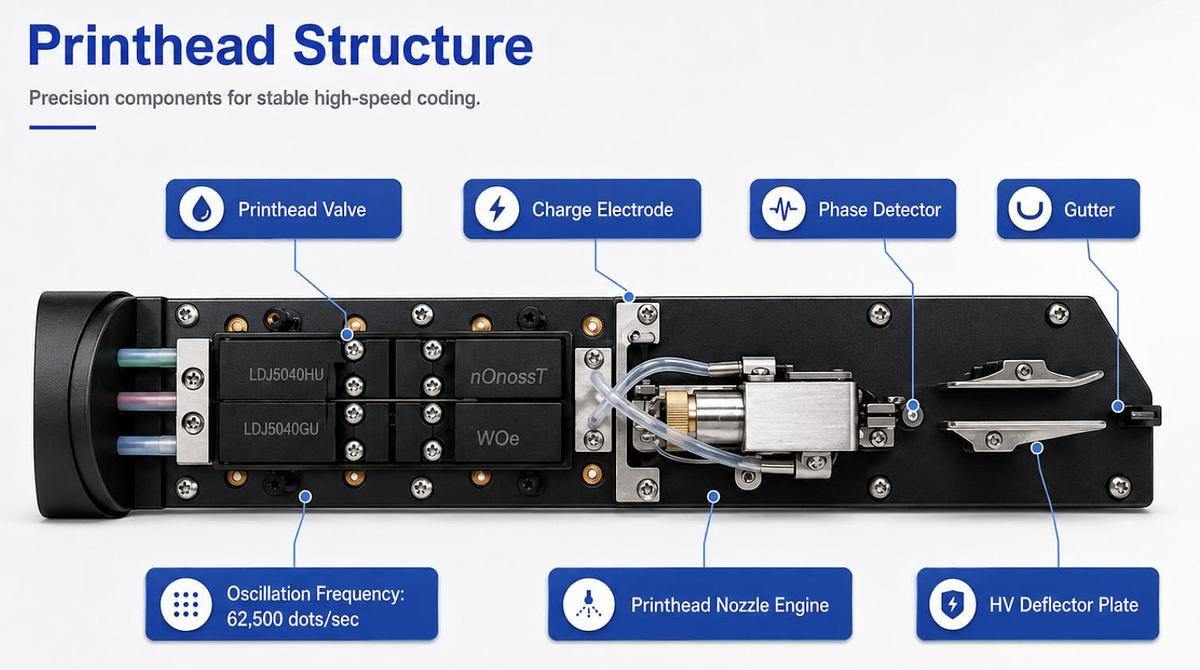

| Printhead | Heated printhead with standard 60 μm nozzle |
| Ink and Make-Up Capacity | 16.9 fl oz |
| Available Ink Colors | Black, blue, red, and yellow |
| Electrical requirements | 100–220 VAC,50/60 Hz,0.1 kW |
