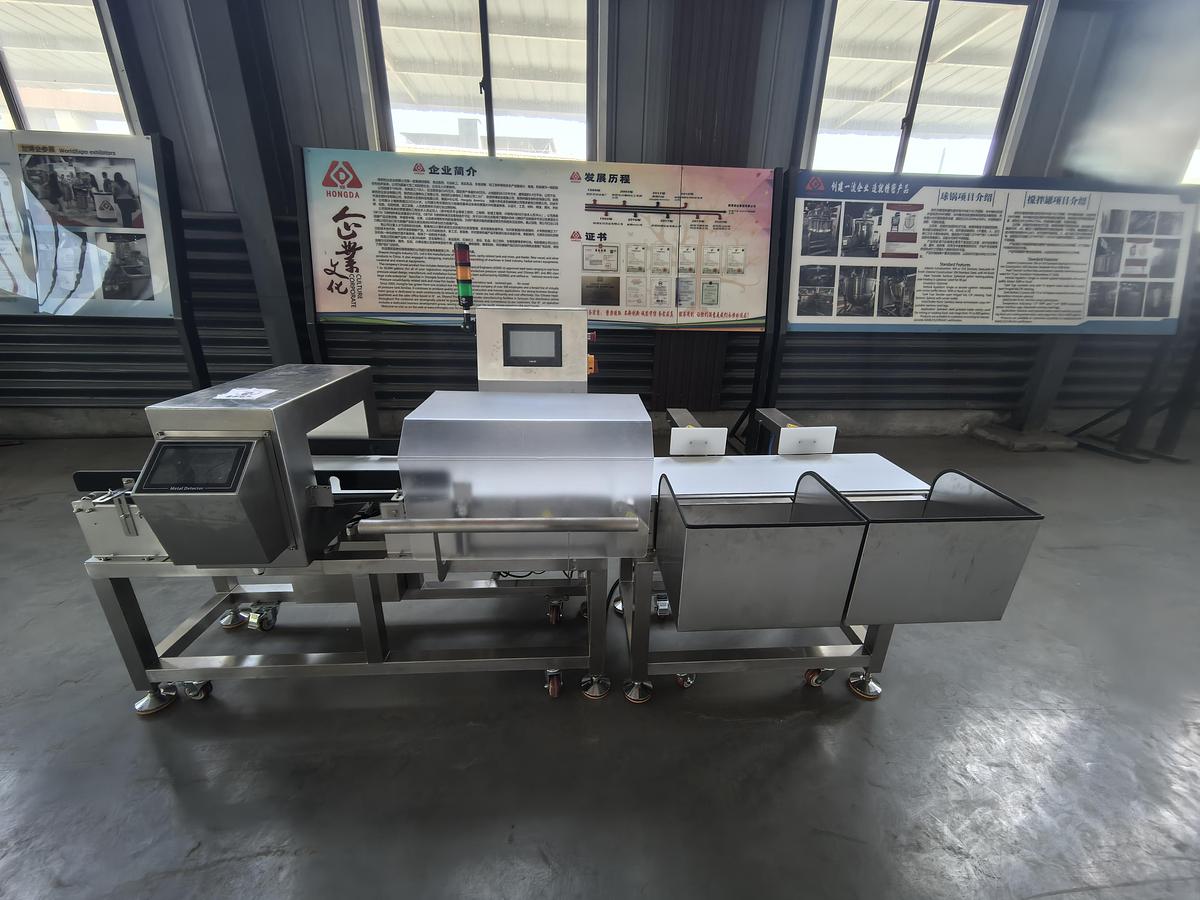

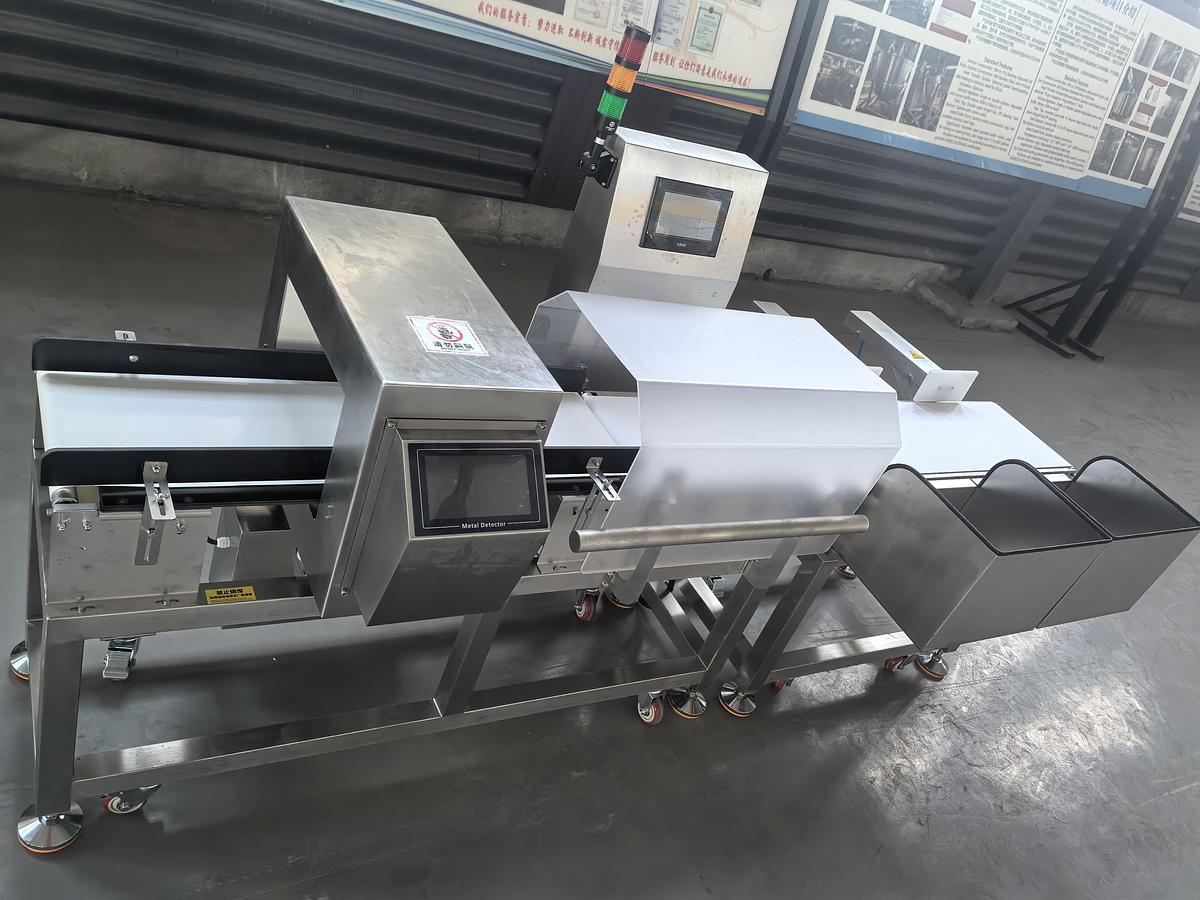

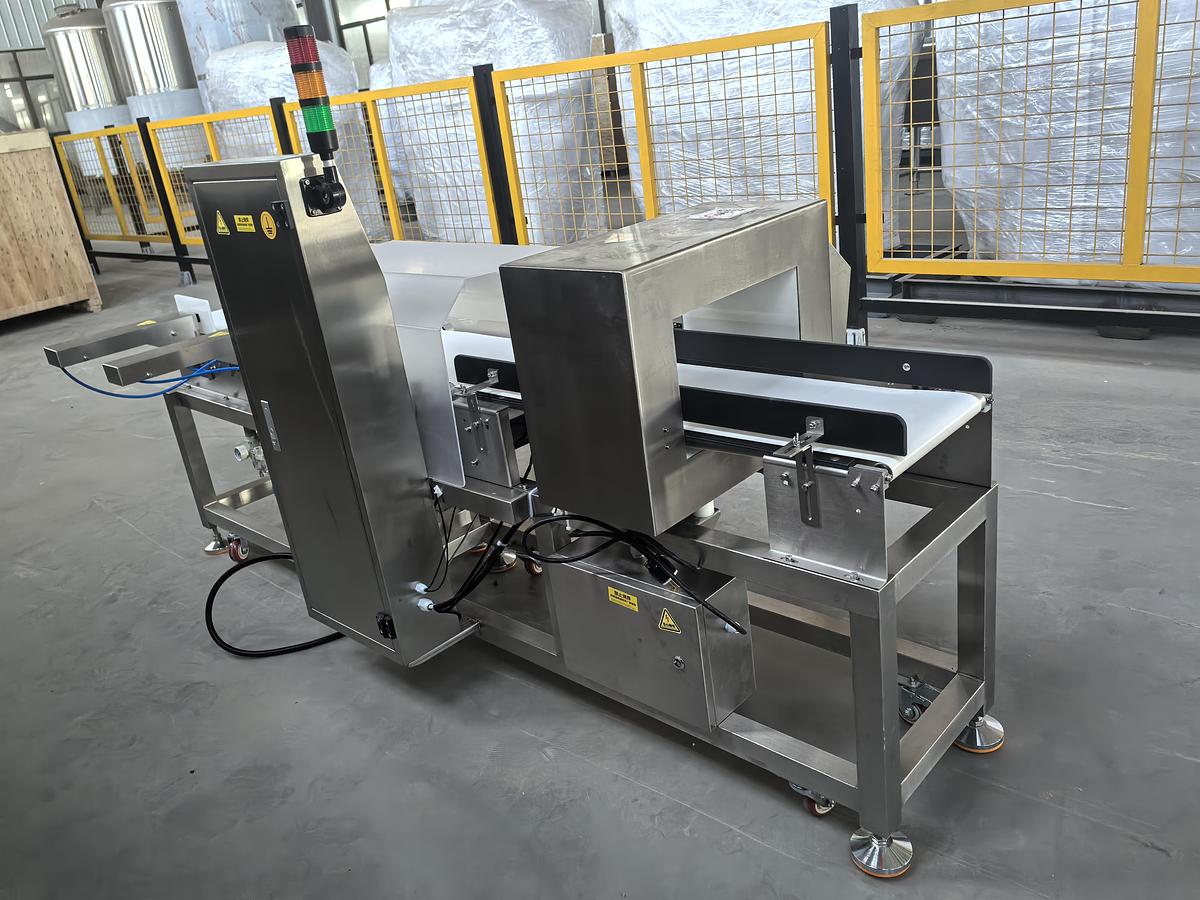

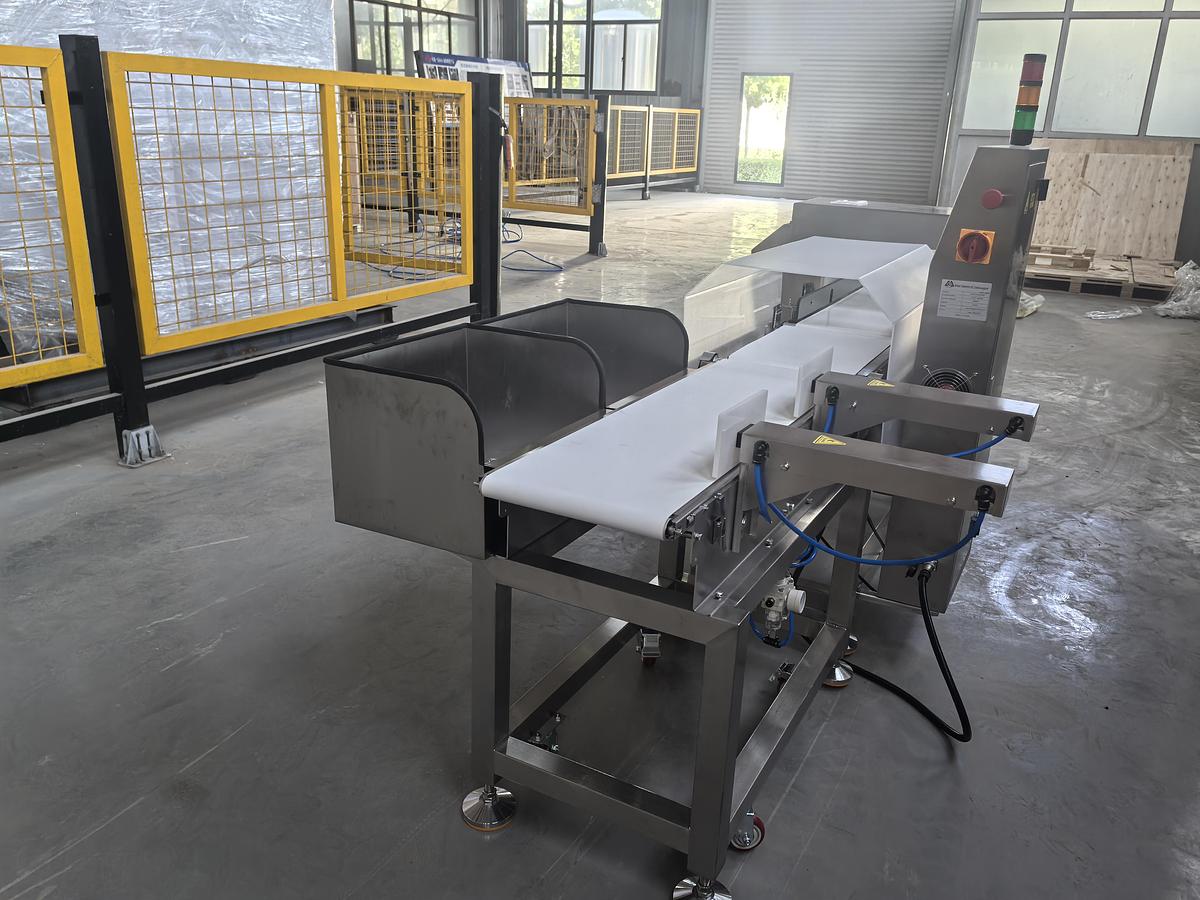

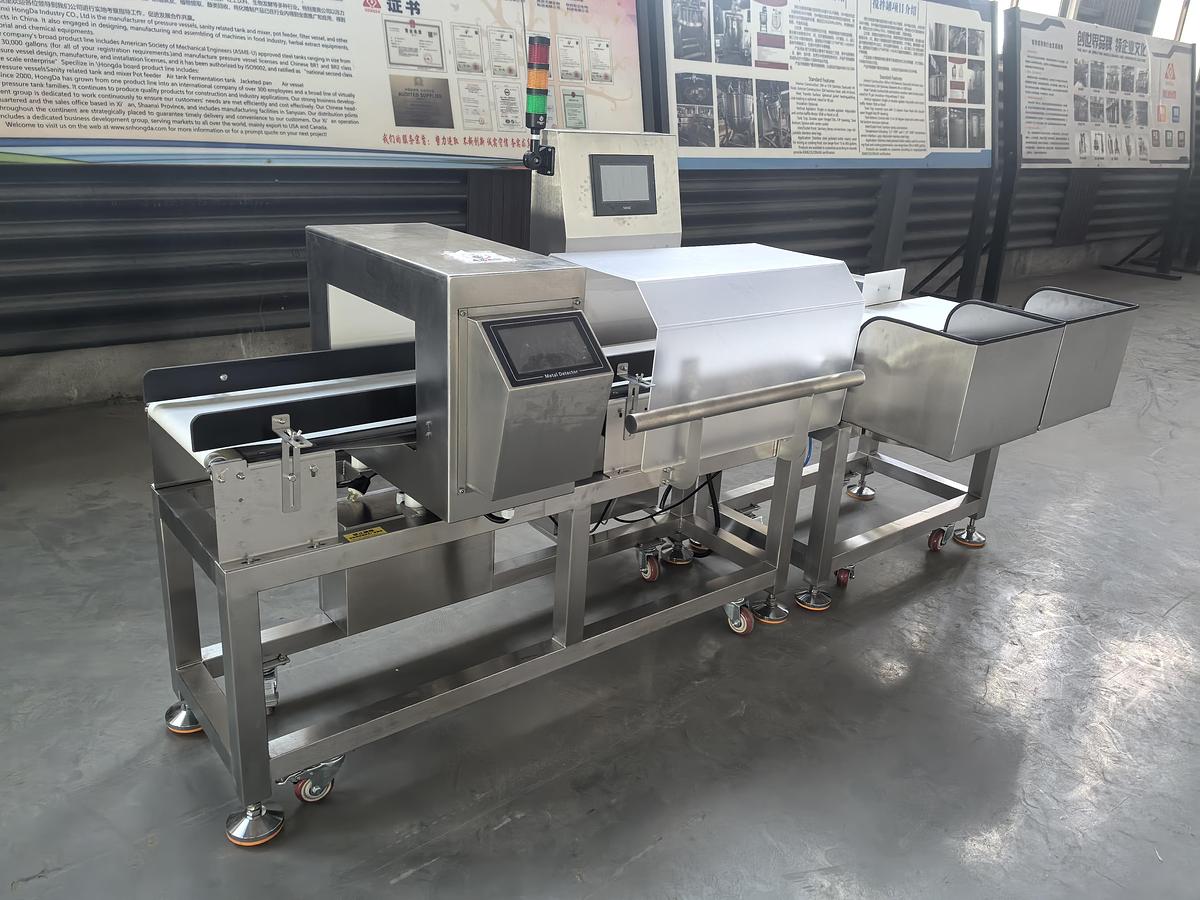

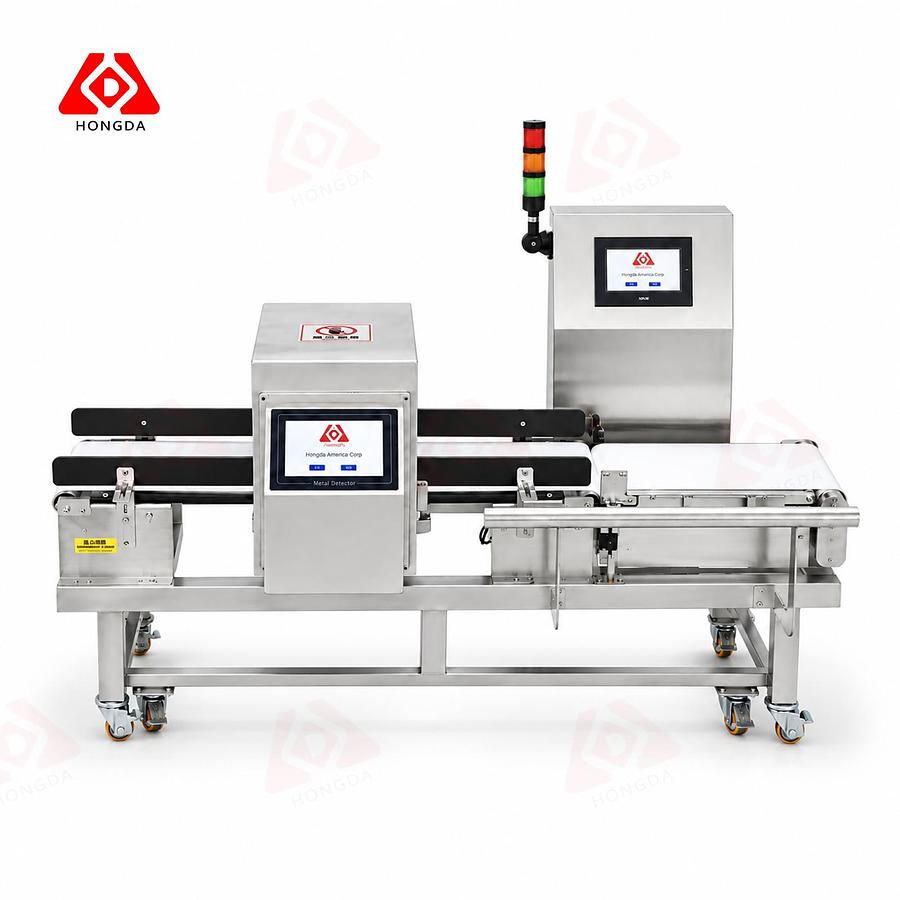

Metal Detector and Checkweigher Combination Machine CM-300

Model：CM-300

Equipment components：

Metal Detector CQ-818:

• Application
• Metal foreign object detection for various products, including textiles, plastic products, toys, seafood, food (food additives, seasonings), pharmaceuticals, health products, cosmetics, etc.
• Metals such as iron, copper, aluminum, stainless steel
• Other metal particles can be detected in bulk, bagged, bottled, or boxed products.
• Specification
• Detection Window Height: 4.72"/5.91"/7.87" (Optional)
• Detection Window Width: 11.81"
• Maximum Load Capacity: 33 lbs
• Detection Sensitivity (Belt surface under no-load condition):
• FE φ0.03-0.06 inches
• CU φ0.06-0.1 inches
• SUS φ0.08-0.12 inches
• Metal detector length: 39.4 inches
• Weighing table length: 17.7 inches
• Reject section length: 35.4 inches
• Total machine length: approximately 92.5 inches.
• Product Features
• Advanced Technology:High accuracy, stability, and resistance to interference with digital tech and imported chips.
• Versatile & Data Storage:Supports multiple frequencies and stores data for up to 100 products.
• Intelligent Recognition:Auto-adapts to product characteristics, eliminating interference.
• Easy Setup:User-friendly LCD display and simple controls for quick setup.
• Modular Maintenance:Quick and easy component replacement.
• Durable Design:Shockproof, waterproof, and resistant to harsh environments.
• Custom Rejection Devices:Flexible options for rejection systems and body designs.

Checkweigher XP300

• Scope of Application:This product is used to check the weight of individual items, widely applied in industries such as electronics, pharmaceuticals, food, beverages, health products, daily chemicals, light industry, and agriculture.
• Specification
• Weighing platform dimensions:17.7" L * 11.8" W
• Maximum capacity: 6.6 lbs
• Weighing range: 0.02 lbs - 6.6 lbs.
• Highest accuracy: ±0.02 - 0.04 oz.
• Minimum graduation: 0.0035 oz.
• Conveyor speed: 98.4 - 295.3 ft/min.
• Weighing material dimensions: ≤17.7 inches (L) * 11.8 inches (W).
• Product Features
• Versatile: Standardized structure and interface support various materials for weighing.
• Easy Operation: Color touchscreen with user-friendly design; conveyor belt is easy to disassemble and clean.
• Adjustable Speed: Frequency-controlled motor allows speed adjustment as needed.
• High Speed & Accuracy: High-precision digital sensors ensure fast sampling and accurate results.
• Zero Tracking: Manual or automatic zeroing with dynamic zero tracking.
• Reporting Function: Built-in reporting system generates real-time Excel reports; USB storage for over a year of data.
• Connectivity: Standard interface for easy data management and integration with PCs or smart devices.
• Self-Learning: Automatically sets optimal parameters for new products and stores up to 2,000 configurations.
