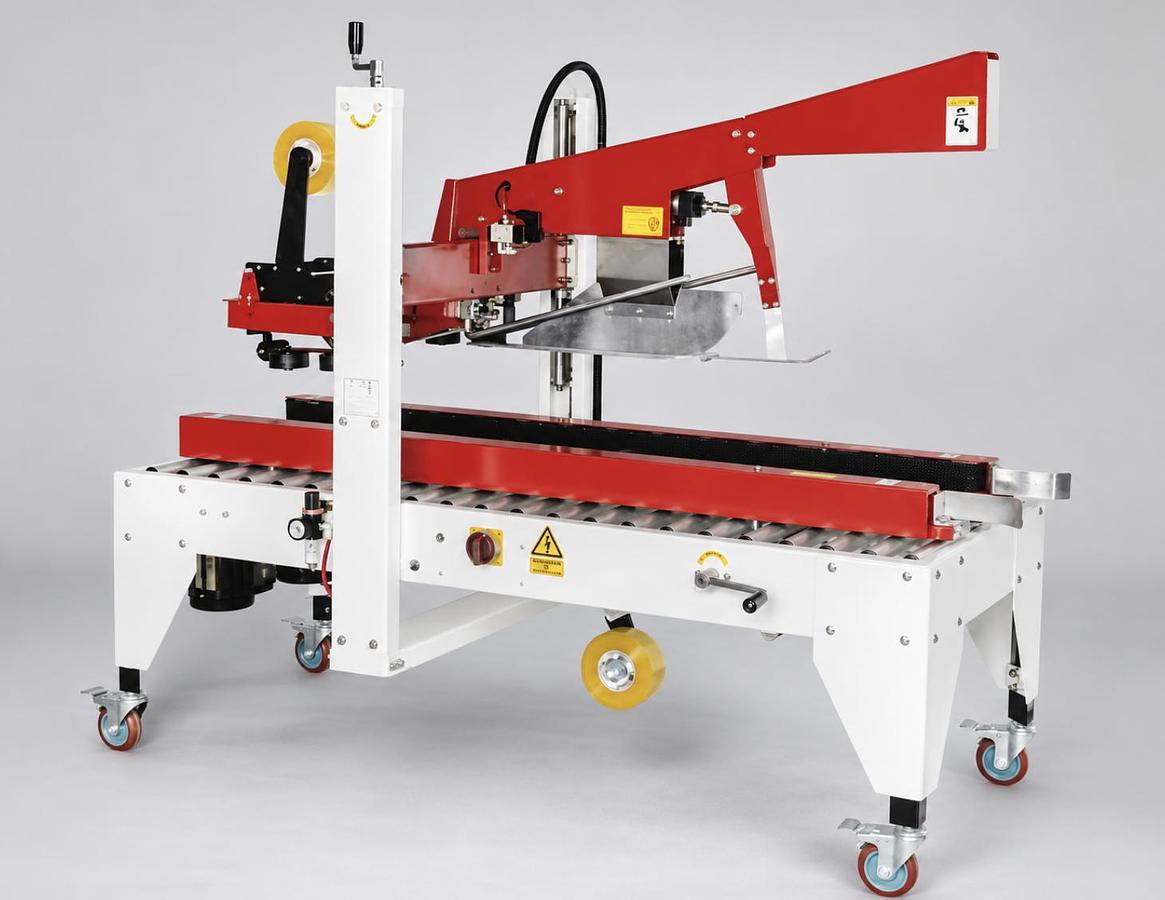

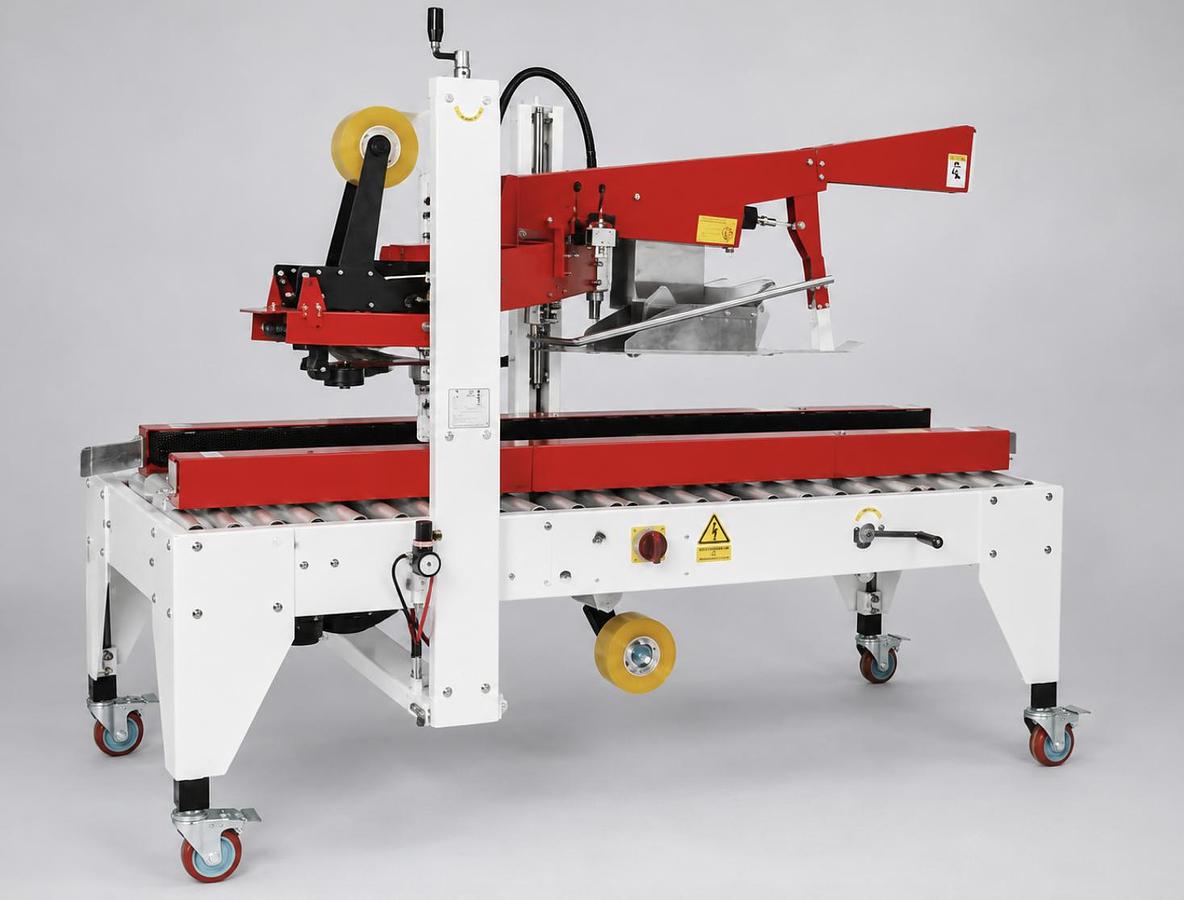

Flap Folding and Top Case Sealer F20
Flap Folding and Top Case Sealer F20
Contact us for price
Location:Ontario, CA
or
Call +1(626)320-2070
Description
Hongda provides complete processing and packaging equipment and solutions, with robotic integration for fully automated production lines. Learn more at www.hongdaamerica.com.
Machine Features
- Manual height and width adjustment for different specifications
- Belt-driven system on both sides
- Operates with or without a production line

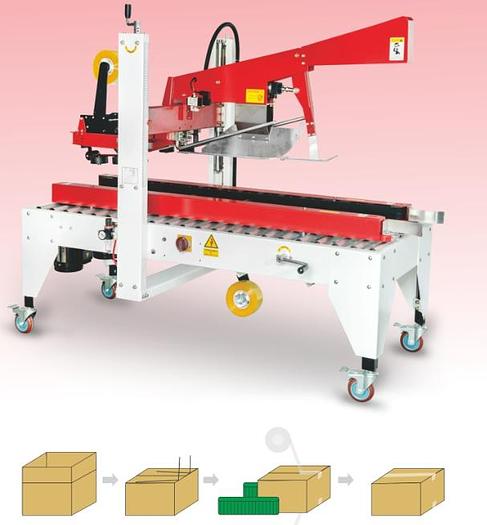

- Automatically folds the top flap and seals the box in a single pass
Specifications
| Manufacturer | Hongda |
| Model | F20 |
| Year | 2026 |
| Condition | New |
| Stock Number | 74 |
| Air Pressure | 85 psi |
| Power Supply | 110 VAC, 50/60 Hz, 0.5 kW |
| Machine Dimensions (L × W × H) | 67 × 37 × 60 in |
| Compatible Tape | Kraft Paper Tape or BOPP Tape |
| Tape Width | 1.9, 2.4, or 2.8 in |
| Adjustable Conveyor Height | 23.6–25.6 in |
| Maximum Carton Size (L × W × H) | 23.6 × 19.7 × 19.7 in |
| Minimum Carton Size (L × W × H) | 7.9 × 5.9 × 5.9 in |
| Conveyor Speed | 66 ft/min |
| Carton Sealing Speed | 10–15 cartons/min |
