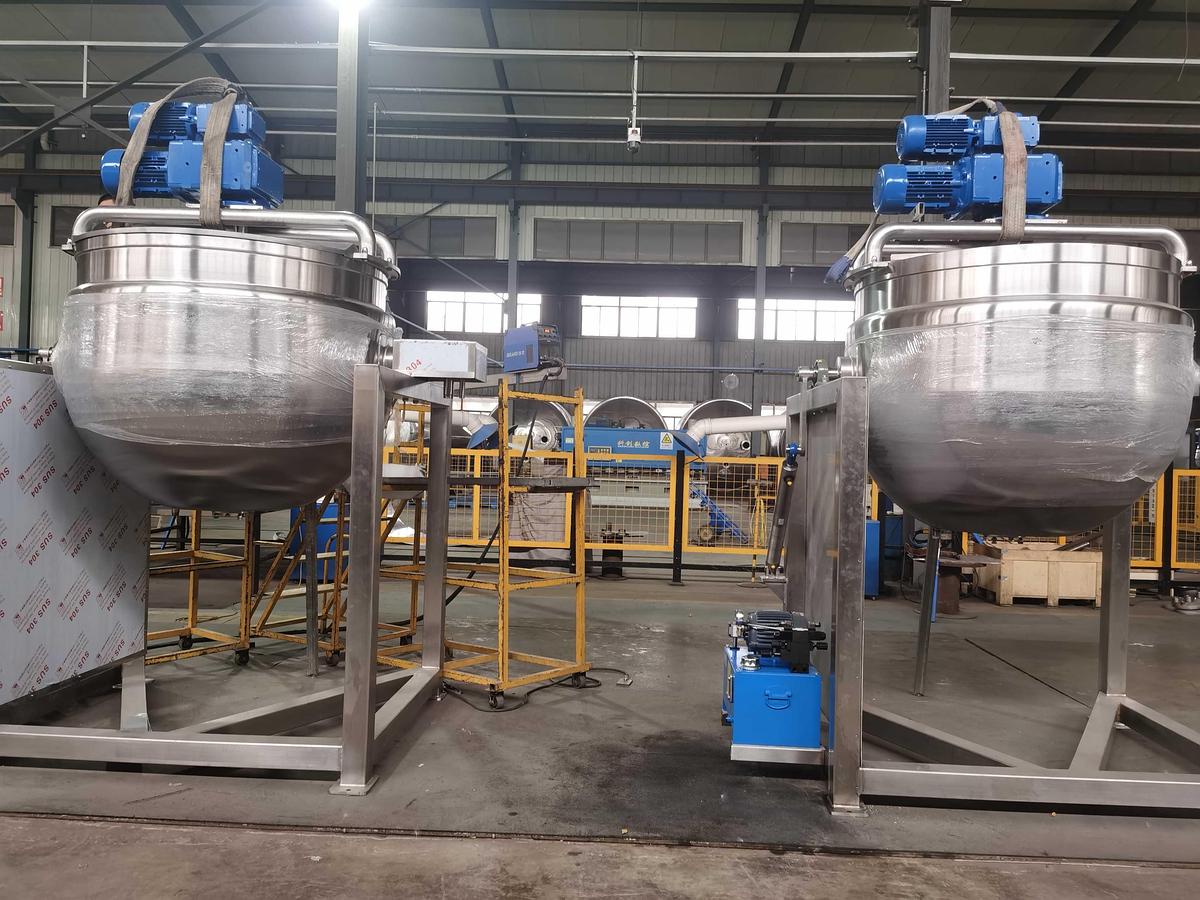

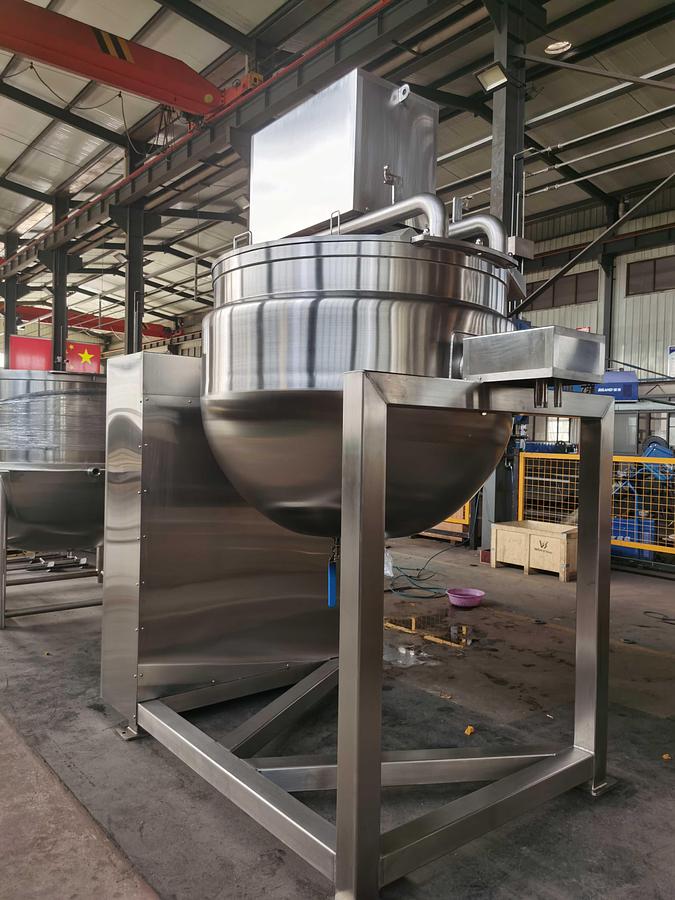

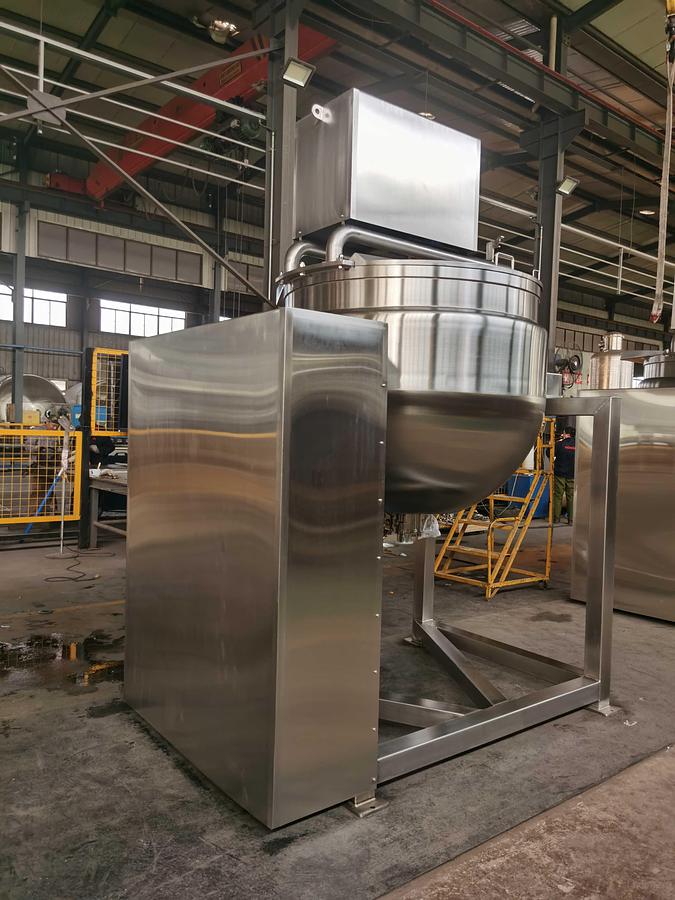

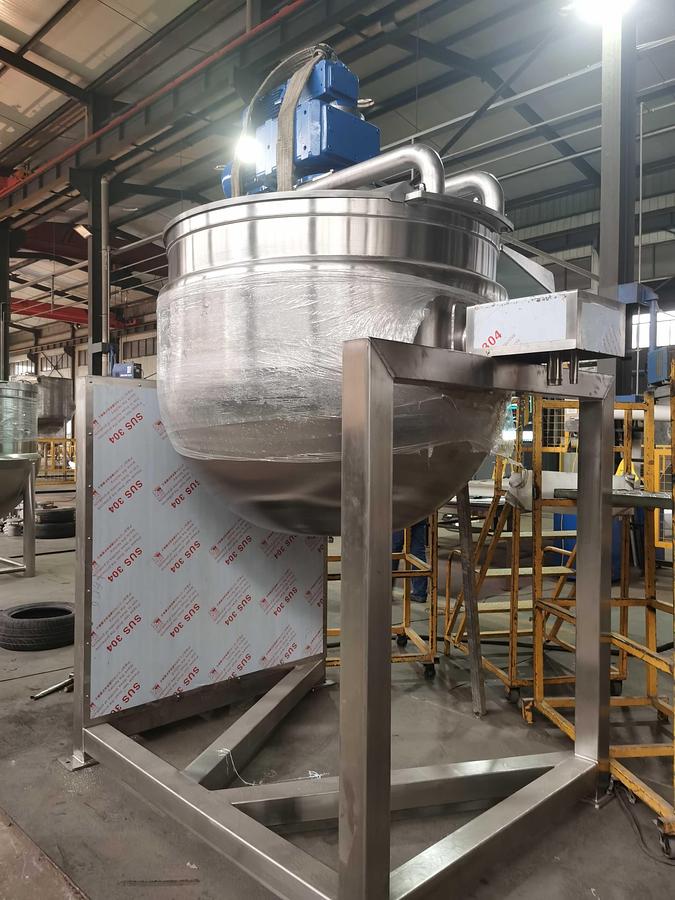

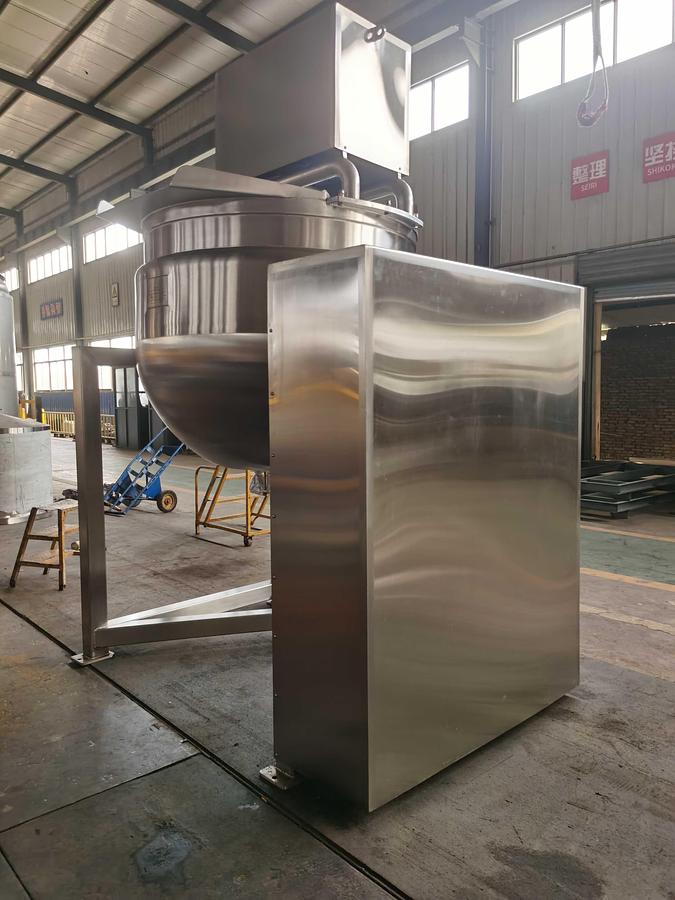

250 Gallon full jacket Electrical hydraulic tilting double mixing kettle

*Hemispherical style kettle.

*Sanitary configuration.

*Electric Tilting.

*Constructed of stainless steel 316 type product contact areas, 304 for other parts.

*Electric heating hot oil jacket type.

*Kettle body to have four legs configuration with flanged feet.

*Kettle body to have 3" center bottom flush mount ball valve discharge.

*Agitation is bridge mounted. scraping surface and paddle type.

*Heavy Duty drive

-5 HP three phase, 230/460V 60HZ UL listed Drive.

-3 HP three phase, 230/460V 60HZ UL listed Drive.

*Tri‐Clamp type additive ports.

*Stainless steel, hinged cover on both sides.

*Controller included

*Digital temperature recorder, solenoid steam valve control feature.

*Safety grate interlock.

*Emergency Stop.

*Overcurrent protection.

*With Funnel.
