Conical Hopper Screw Feeder
Conical Hopper Screw Feeder
Contact us for price
Location:Ontario, CA
or
Call +1(626)320-2070
Description
Product Features
- Automatic Feeding: The machine automatically starts feeding when the powder filler detects low material levels, ensuring continuous operation without manual intervention.
- Stable Operation: Uses screw conveying for reliable and consistent feeding. The structure is simple, easy to maintain, and highly durable.
- Fully Enclosed Design: The sealed screw conveyor tube prevents material loss during transport and minimizes dust leakage.

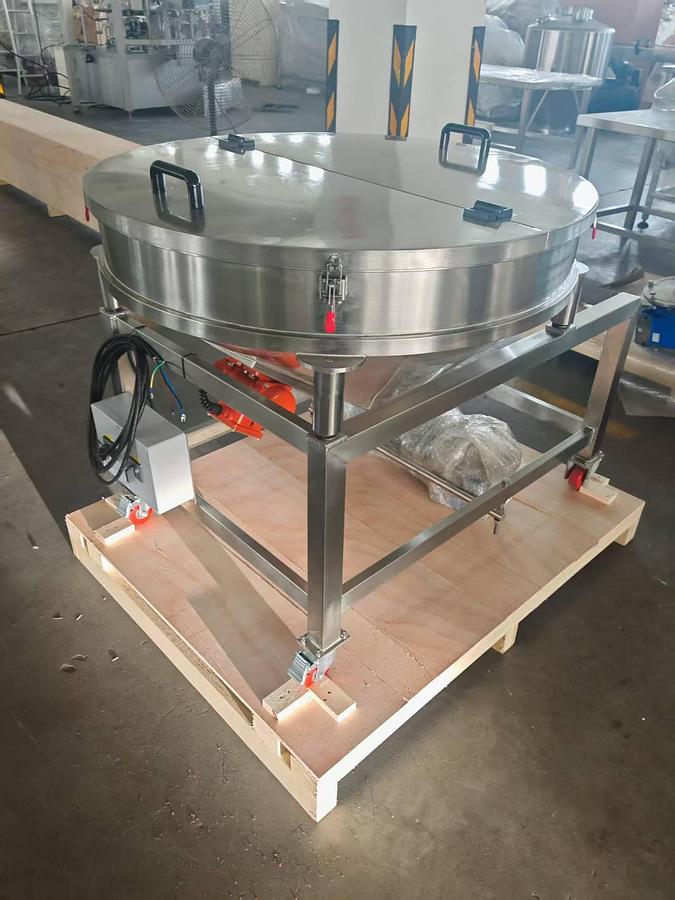

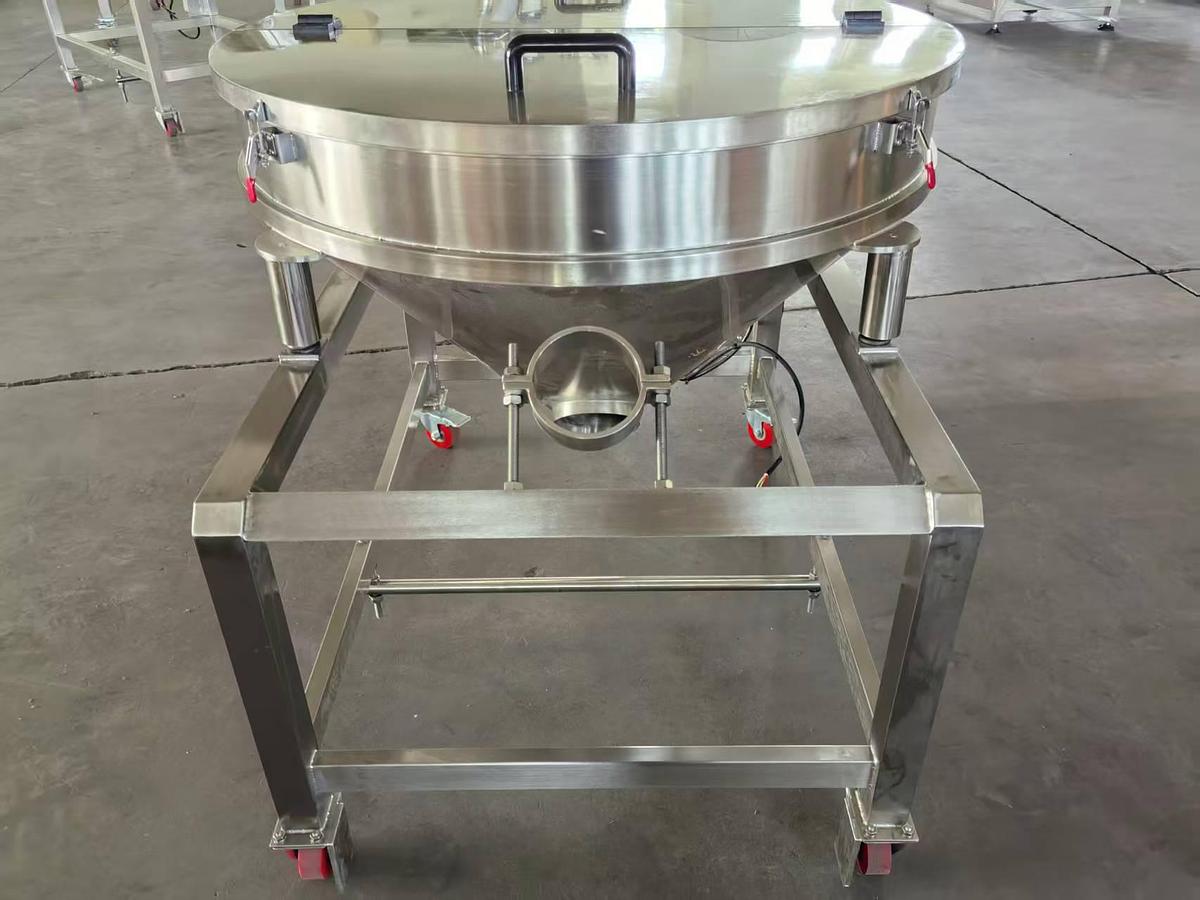

- Vibration-Assisted Hopper: Equipped with a vibrating conical hopper to improve powder flow at the feeding inlet and prevent bridging or clogging.
- One-Touch Operation: User-friendly interface with one-button start and stop — quick to operate.
Specifications
| Manufacturer | Hongda |
| Year | 2025 |
| Condition | New |
| Stock Number | 132 |
| Spiral speed | 140 rpm |
| Conveying capacity | ≈3m³/h |
| Hopper capacity | 60.8 gallons (230L) |
| Pipe diameter | 4.5" |
| Lifting height | 90.6" |
| Main material | 304 stainless steel |
| Power supply | 380Vac,3-Phase,50/60Hz, 2.2kW |
| Overall dimensions | 98.4"×31.5"×82.7" |
