Automatic Vertical Sleeve Labeling Machine
Automatic Vertical Sleeve Labeling Machine
Contact us for price
Location:Ontario, CA
or
Call +1(626)3202070
Description
- Including the sleeve labeling machine, cutting blade disk, customized mandrels based on bottle shape (1.50", 1.75", 3.70", 2.50", 2.00"), and bottle separating screw (customized based on bottle shape: 1.50", 1.75", 3.70", 2.50", 2.00")

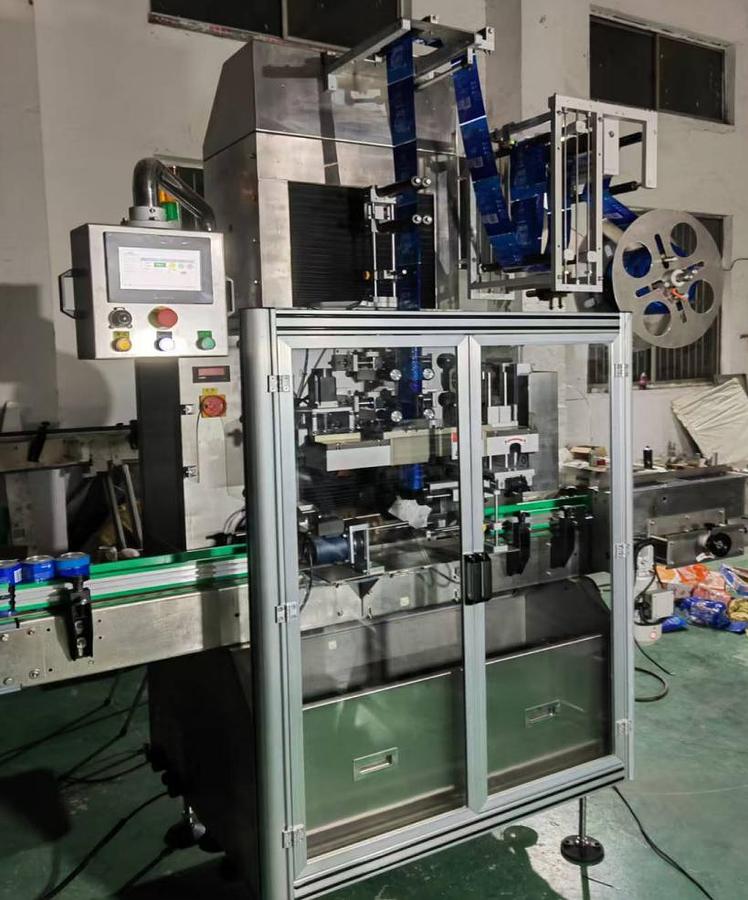

- The Automatic Vertical Sleeve Labeling Machine is a high-speed, high-precision solution for applying shrink sleeve labels to bottles, jars, and other round or uniquely shaped containers. Designed for seamless integration into existing production lines, this machine delivers consistent labeling performance.The system is equipped with a bilingual (Chinese and English) operation interface, making it user-friendly for both local and international operators.
Specifications
| Manufacturer | Hongda |
| Year | 2025 |
| Condition | New |
| Stock Number | 134 |
| Machine Dimensions | 110.2" (L) × 45.3" (W) × 84.6" (H) |
| Weight | 1433 lbs |
| Bottle Diameter Range | 0.4" – 3.5" (10mm – 90mm) |
| Bottle Height Range | 2.0" – 11.8" (50mm – 300mm) |
| Label Height Range | 1.6" – 11.8" (40mm –300mm) |
| Label Thickness Range | 1.57 – 3.15 mil (0.04–0.08mm) |
| Core Inner Diameter for Label Roll | Suitable for 5.9" (150 mm) |
| Speed | 100 – 6000 bottles/hour |
| Power Supply | 380Vac,3-phase,50/60Hz,4kW |
