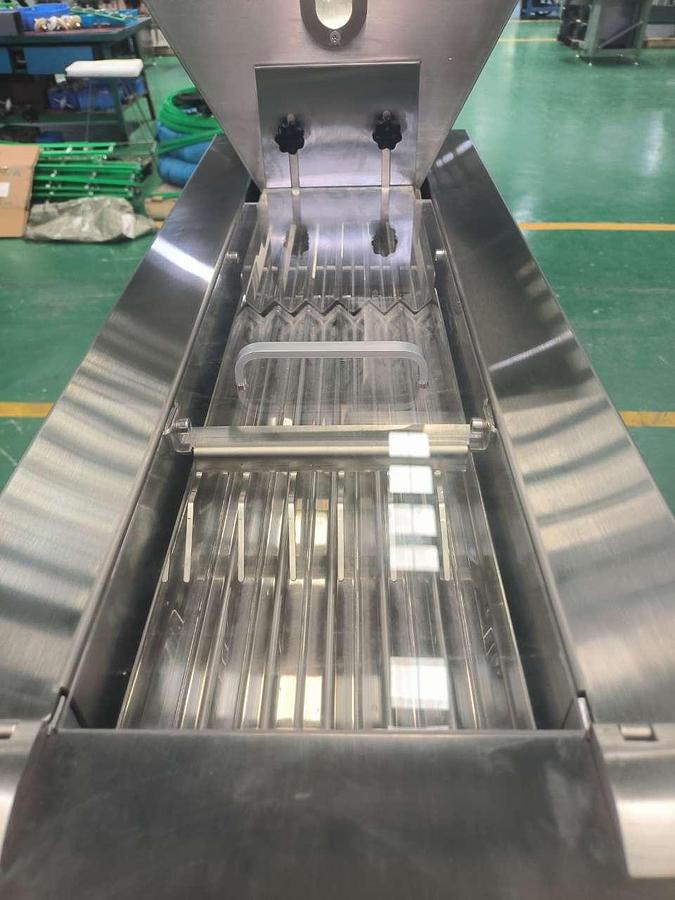

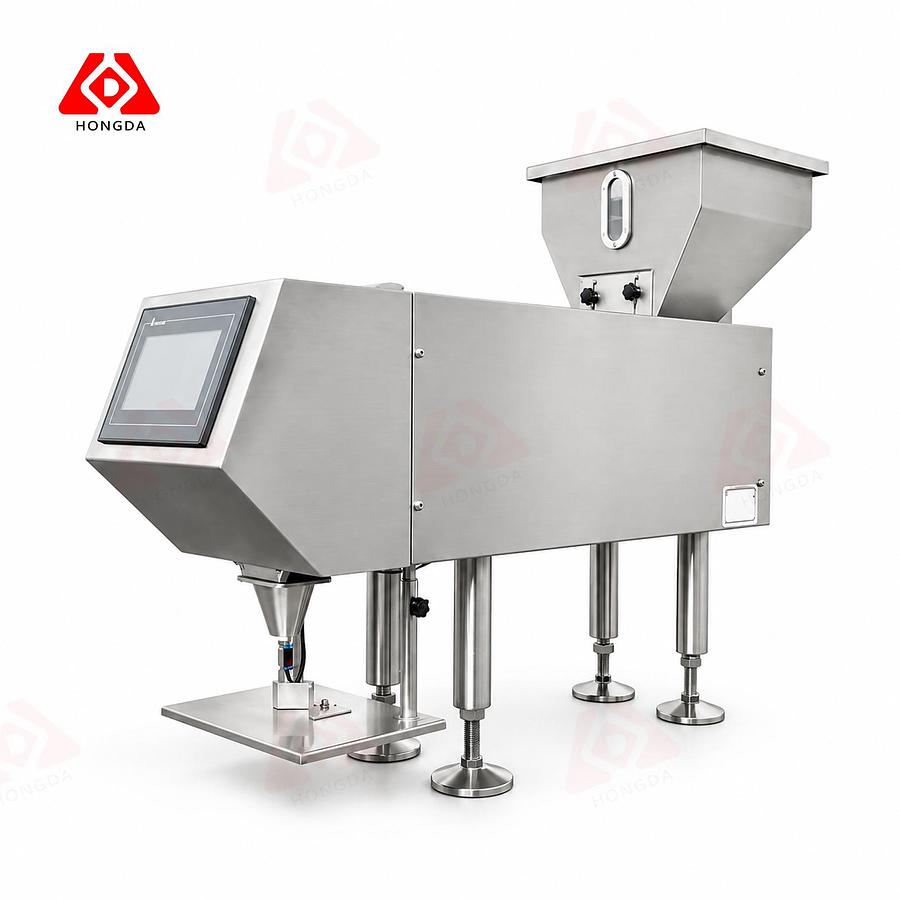

Semi-automatic Counting Machine

Applicable for

• pills with a diameter below 0.79";compatible with capsule sizes 000 to 5; softgel capsules;plain tablets, irregular-shaped tablets, and sugar-coated tablets with diameters ranging from 0.22" to 0.87".

Product Overview:

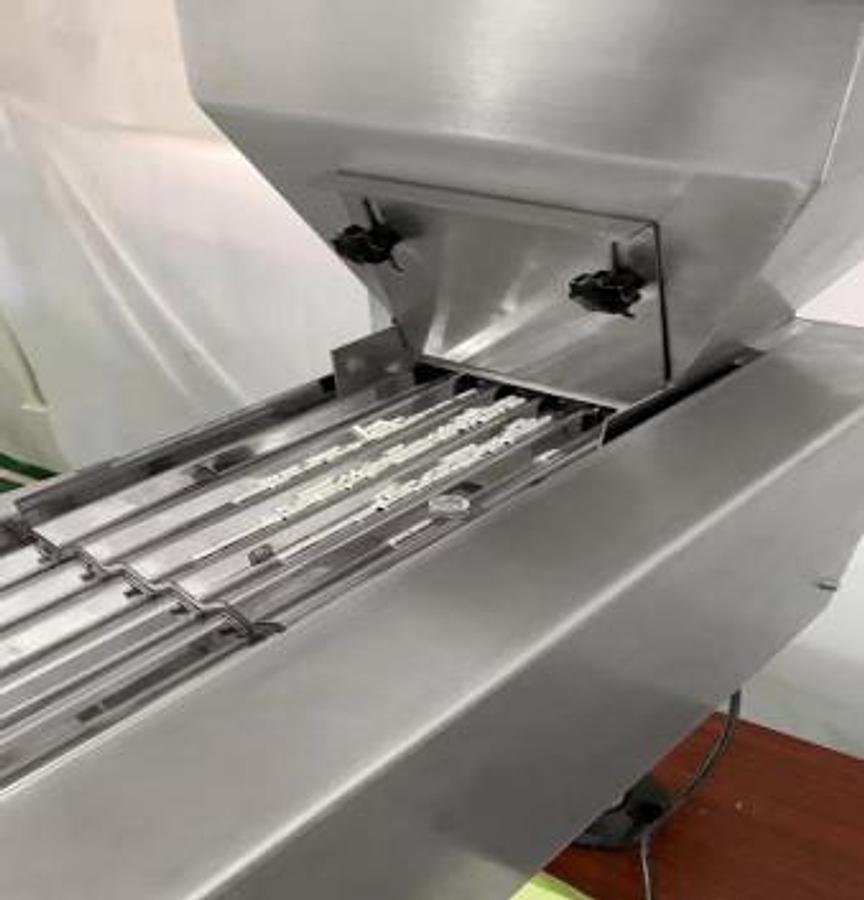

• Operators manually place empty bottles at the filling station. Pills are fed in an orderly manner through a vibrating feeder plate into the hopper. A photoelectric sensor above the hopper accurately counts the pills before they’re dispensed into the bottles. After filling, the operator removes the filled bottles and places new empty bottles for the next cycle.

Product Advantages:

• Compatible with tablets (including irregular shapes), capsules, softgels, pills, and granules.
• Dust-resistant photoelectric sensor ensures stable operation in dusty environments.
• Vibration feeding with flip-plate mechanism for smooth, gentle dosing.
• A special nozzle prevents jams and enables fast filling even for bottles with narrow openings.
• Features "no bottle, no count," self-diagnosis, and other detection functions.

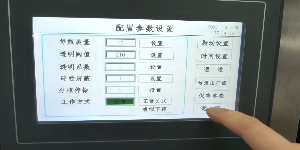

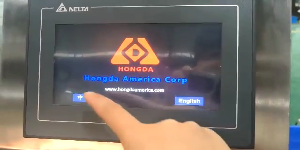

• Easy to adjust and operate with a touch-screen control panel.
• No tools are needed for disassembly or cleaning, making product changes fast and convenient.
