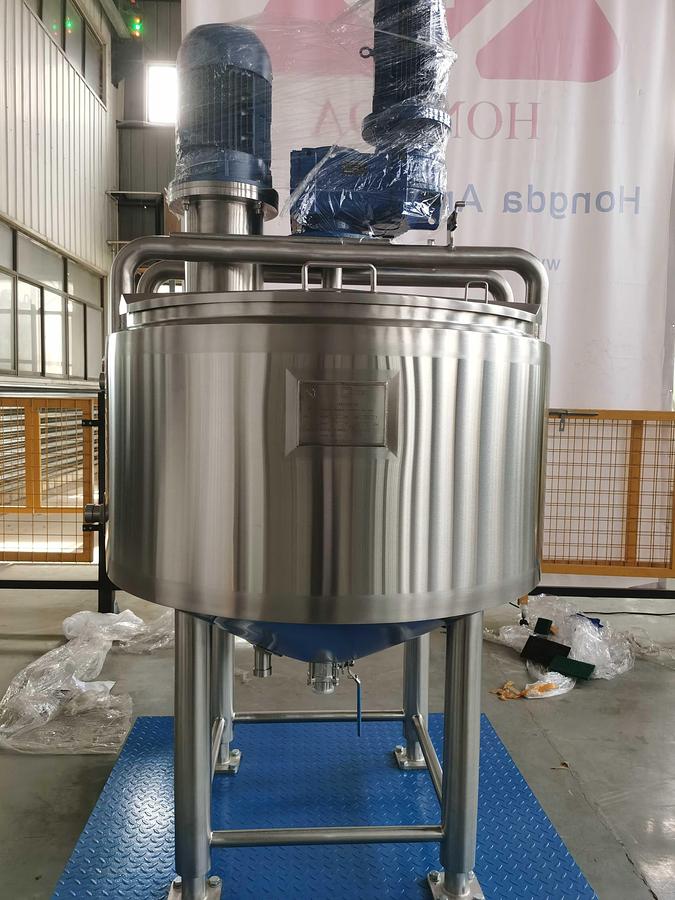

100 Gallon Double agitation high shear disperser mixer
100 Gallon Double agitation high shear disperser mixer
Contact us for price
Location:California
or
Call +1(626)3202070
Description
100 Gallon Double agitation high shear disperser mixer Motor：UL listed drive. Material：SUS316L for prodcut contact surface. SUS304 for non-prodcut contact surfare.
Jacket: ASME-U stamped jacket rated at 75 Psi with NB register.
Insulation: 2" rockwool insulation with outter sheathing
Double agitation: Main agitator is scraper balde type,4HP 28RPM. Offset high shear disperser type with 10HP 1750RPM. Finish：#4 finish.
CIP: WIth 1 Spray ball. Legs：Adjustable stainless steel legs
Specifications
| Manufacturer | Hongda |
| Model | Mixing tank |
| Year | 2025 |
| Condition | New |
| Stock Number | 152 |
| Interior construction | 316L Stainless Steel, with #4 finish. |
| Exterior construction | 304 Stainless Steel, with #4 finish. |
| Heat transfer surface | Side and bottom stainless steel dimple jacket rated for 75 psi. |
| Insulation | Rock wool 2" thick. |
| Vertical agitation | Double agitation: Main agitator is scraper balde type,4HP 28RPM. Offset high shear disperser type with 10HP 1750RPM. |
| Motor | UL listed brand |
| Tank top | Inverted cone with 15 degree slope head with double open hinged lids, CIP cleaning. |
| Tank bottom | Conical and center outlet. |
| Inlet/outlet ports | Sanitary clamp connections. |
| Legs | Adjustable stainless steel legs. |
| Delivery time | In stock |
| Packing size | 51"*51"*94" 1803lbs |
