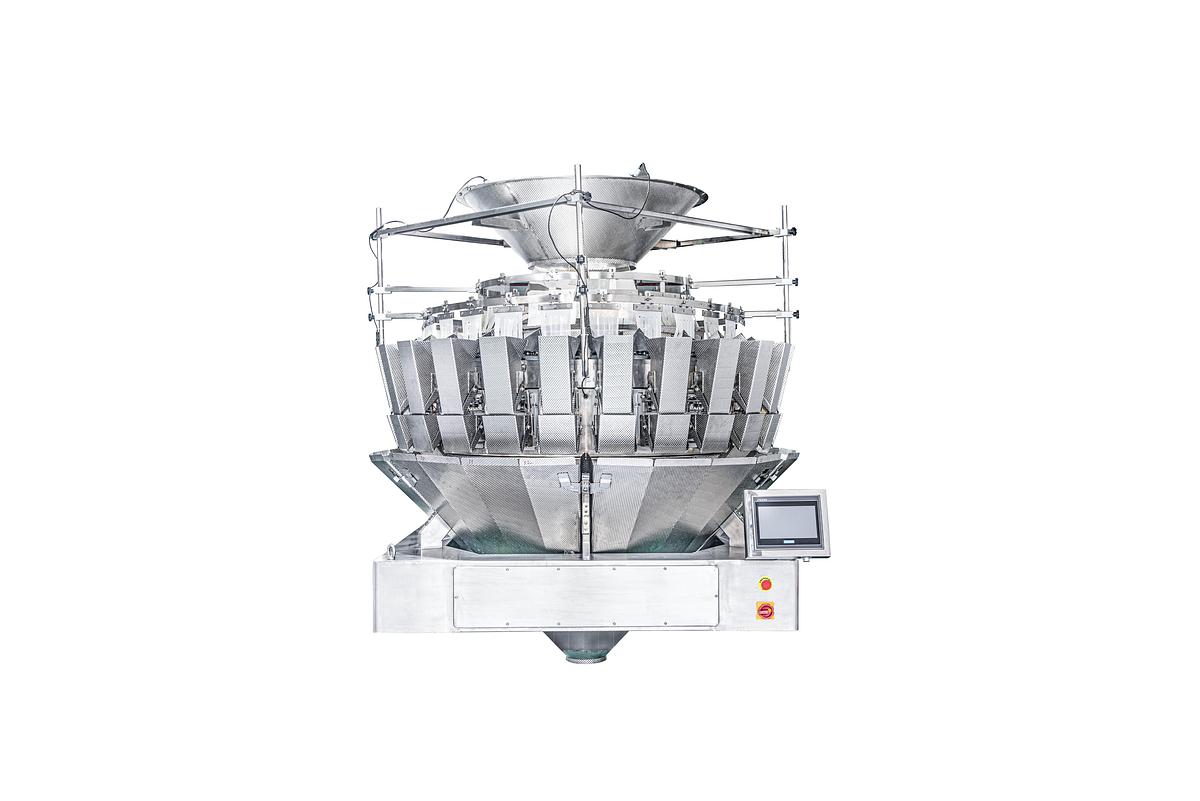

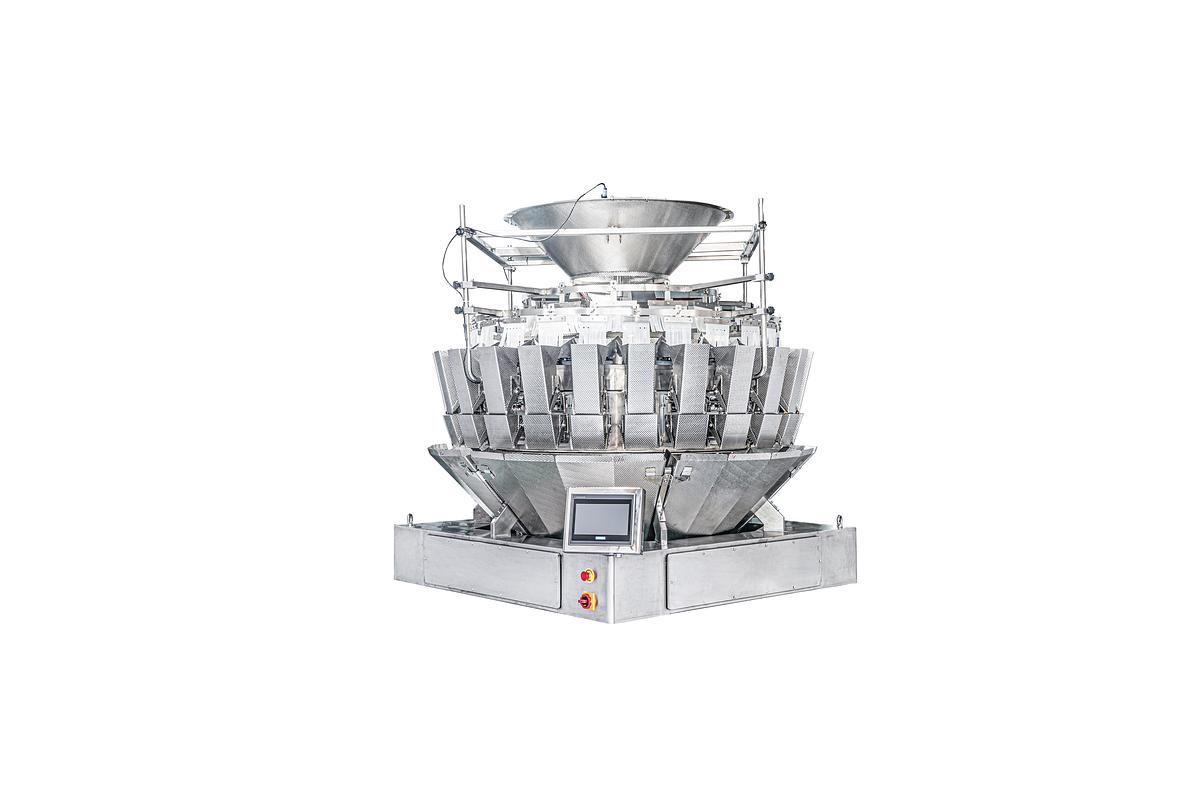

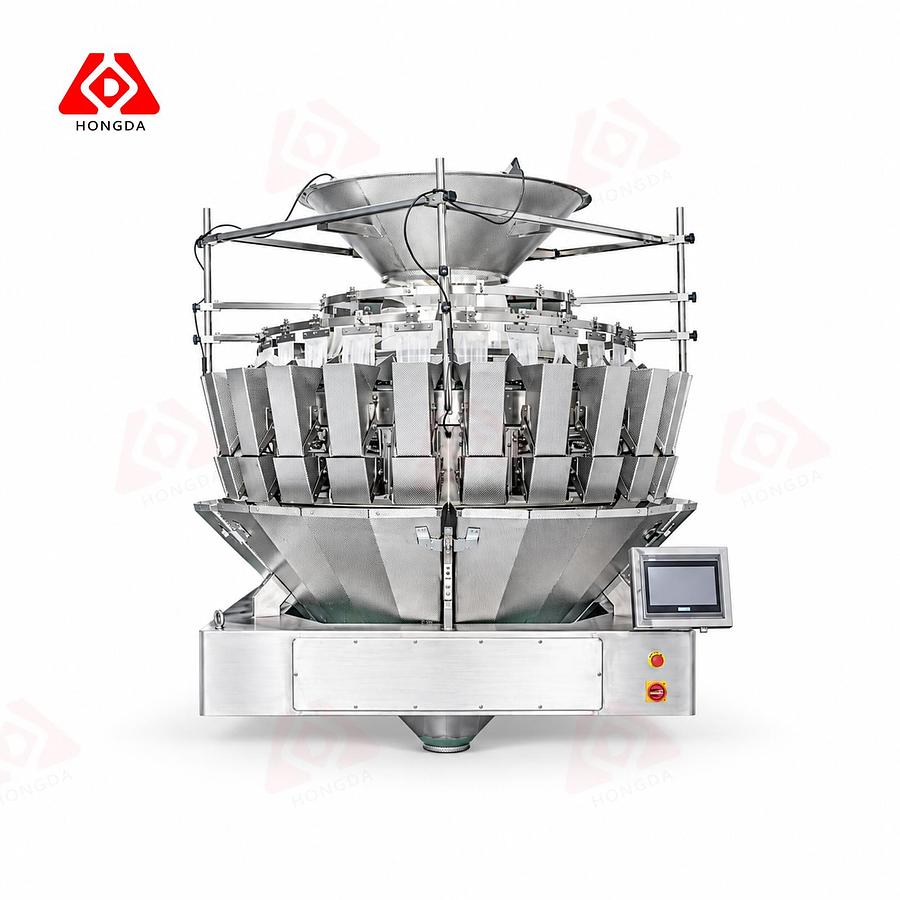

24 Heads Combination Weigher 24H1.6L
24 Heads Combination Weigher 24H1.6L
Contact us for price
Location:Ontario, CA
or
Call +1(626)3202070
Description
Main Features
- Modular control system for easier troubleshooting and lower repair costs.
- Multi-language HMI available.
- The load cell and photoelectric sensors detect the material feed quantity.
- Equipped with sequential discharge function to prevent material blockage.
- Production records can be checked and downloaded to PC.
- Material-contact parts can be easily removed for cleaning without tools.
Specifications
| Manufacturer | Hongda |
| Model | 24H1.6L |
| Year | 2025 |
| Condition | New |
| Stock Number | 164 |
| Weighing Head | 24 |
| Weighing Range | 0.35–176.4oz (10–5000g) |
| Bucket Capacity | 0.42 gal (1.6L) |
| Operation Panel | 10 inch touch screen |
| Power Supply | 200-240Vac,50/60Hz,2.5KW |
| Drive System | Step Motor |
| Material Contact Surfaces | 304 stainless steel with a patterned plate |
| Vibratory Main Feeder | Single main vibration |
| Discharge Outlet | Single discharge outlet |
| Gross Weight | 2,425 lbs |
