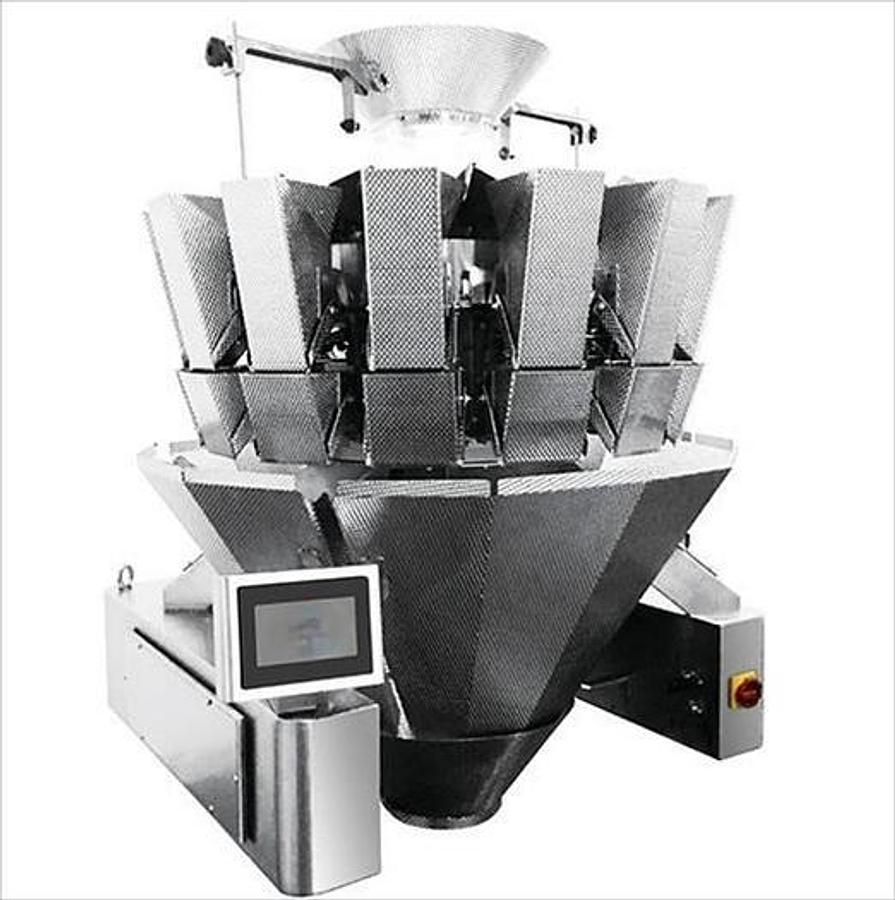

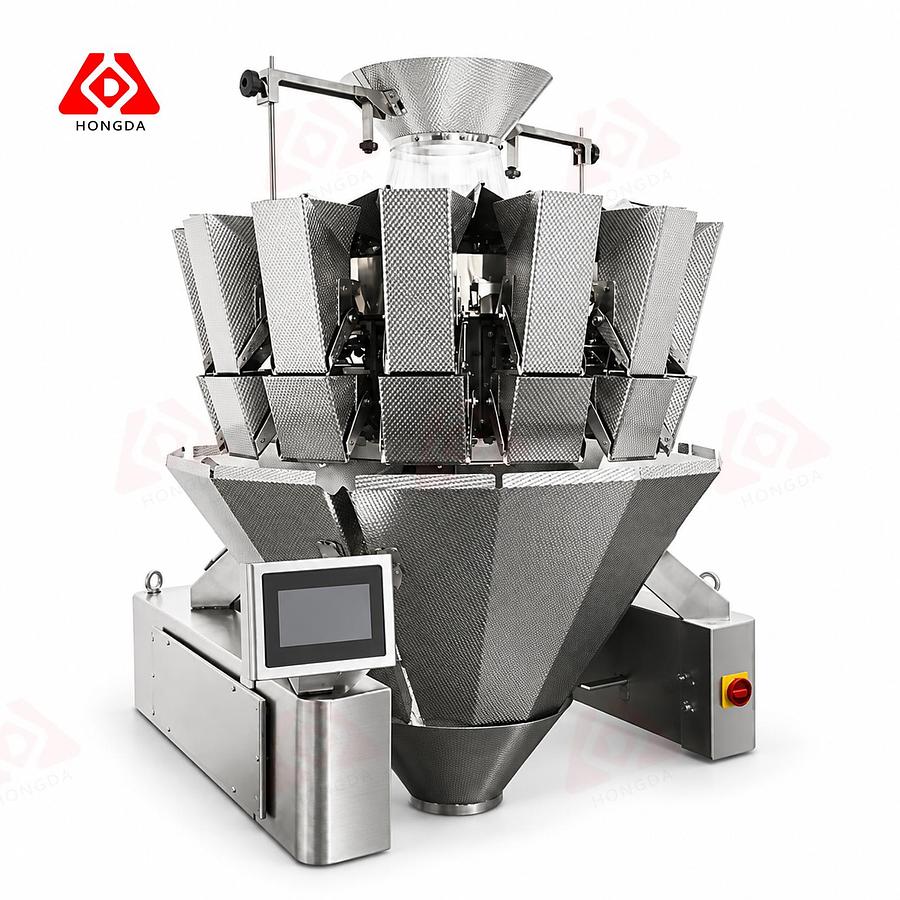

16 Heads Combination Weigher 16H1.6L
16 Heads Combination Weigher 16H1.6L
Contact us for price
Location:Ontario, CA
or
Call +1(626)3202070
Description
Main Features
- Modular control system for easier troubleshooting and lower repair costs.
- Multi-language HMI available.
- The load cell and photoelectric sensors detect the material feed quantity.
- Equipped with sequential discharge function to prevent material blockage.
- Production records can be checked and downloaded to PC.
- Material-contact parts can be easily removed for cleaning without tools.
Specifications
| Manufacturer | Hongda |
| Model | 16H1.6L |
| Year | 2025 |
| Condition | New |
| Stock Number | 165 |
| Weighing Head | 16 |
| Weighing Range | 0.35–52.9 oz (10-1500g) |
| Bucket Capacity | 0.42 gal (1.6L) |
| Maximum Weighing Speed | 150 bags/min (actual speed depends on the material characteristics) |
| Material contact surfaces | 304 stainless steel with a patterned plate |
| Vibratory Main Feeder | 1.6L single-opening hopper |
| Operation Panel | 10 inch touch screen |
| Power Supply | 200-240Vac,50/60Hz |
