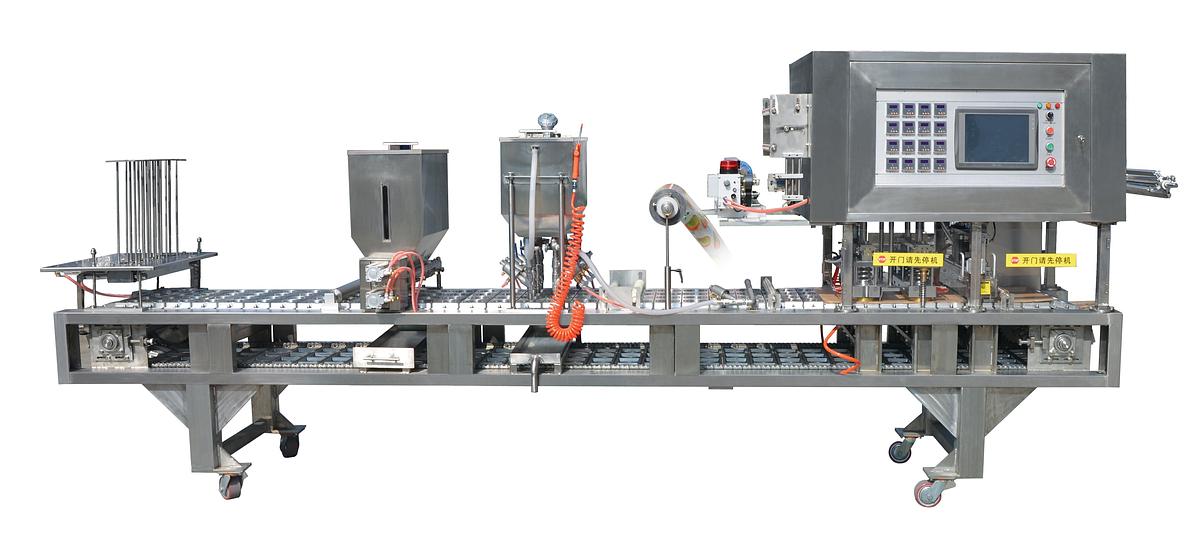

Sauce Cup Filling and Sealing Machine

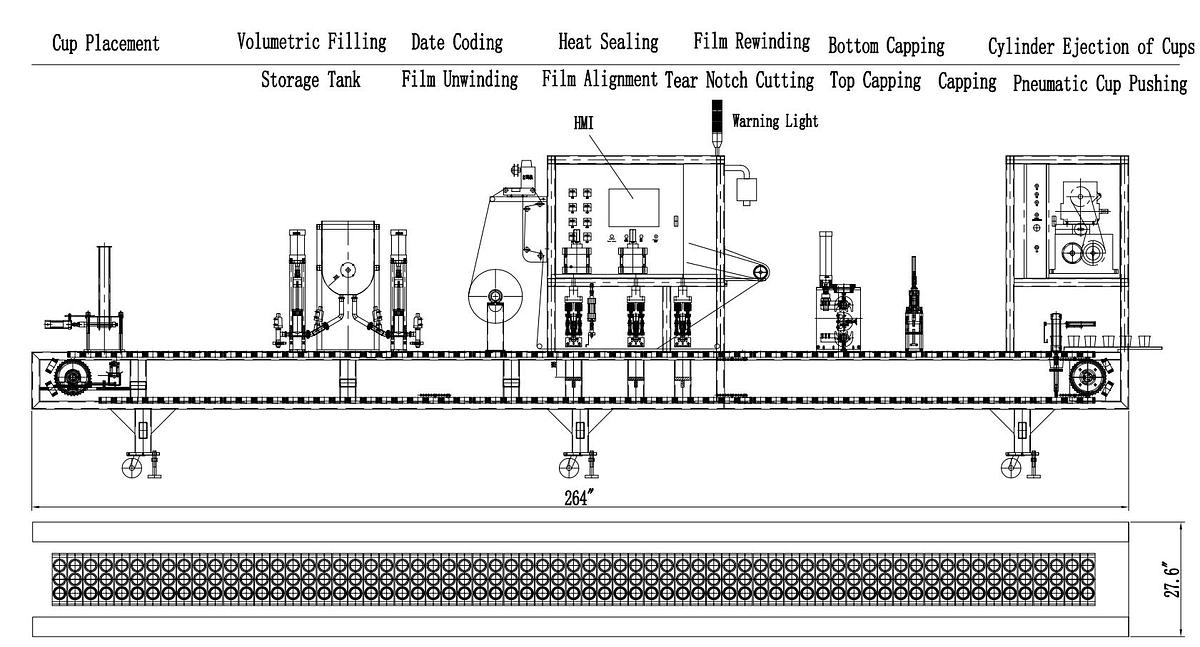

Main Functions of the Machine

• Automatic cup feeding device
• Front-and-back valve high-speed filling (with stirring)
• Film feeding device
• First self-aligning sealing device
• Photoelectric correction device
• Second self-aligning sealing device
• Self-aligning cutting device
• Motorized film winding device
• Lid feeding device
• Capping device
• Cylinder cup ejection
• 1.5 m cup discharge conveyor

Technical Features

• Uses thickened stainless steel chains and high-polymer engineering plastic guides to reduce noise and extend chain service life.
• Employs centralized exhaust silencing technology to lower noise and reduce oil contamination.
• Utilizes automatic film cutting and sealing positioning technology to ensure precise cutting and sealing alignment.
• Features precision stepper motor for accurate stepping control.
• Uses acid-resistant aluminum templates.
• Incorporates photoelectric tracking for pattern correction.
• Equipped with anti-jamming safety protection to ensure smooth machine operation.
• Applies low-pressure protection technology to prevent low-air-pressure issues in pneumatic components, improving reliability and stability.
• Uses rotary encoder for motion control, allowing digital adjustment and easy operation.
• Features audible and visual alarm system; faults are displayed and alarmed via touchscreen.
