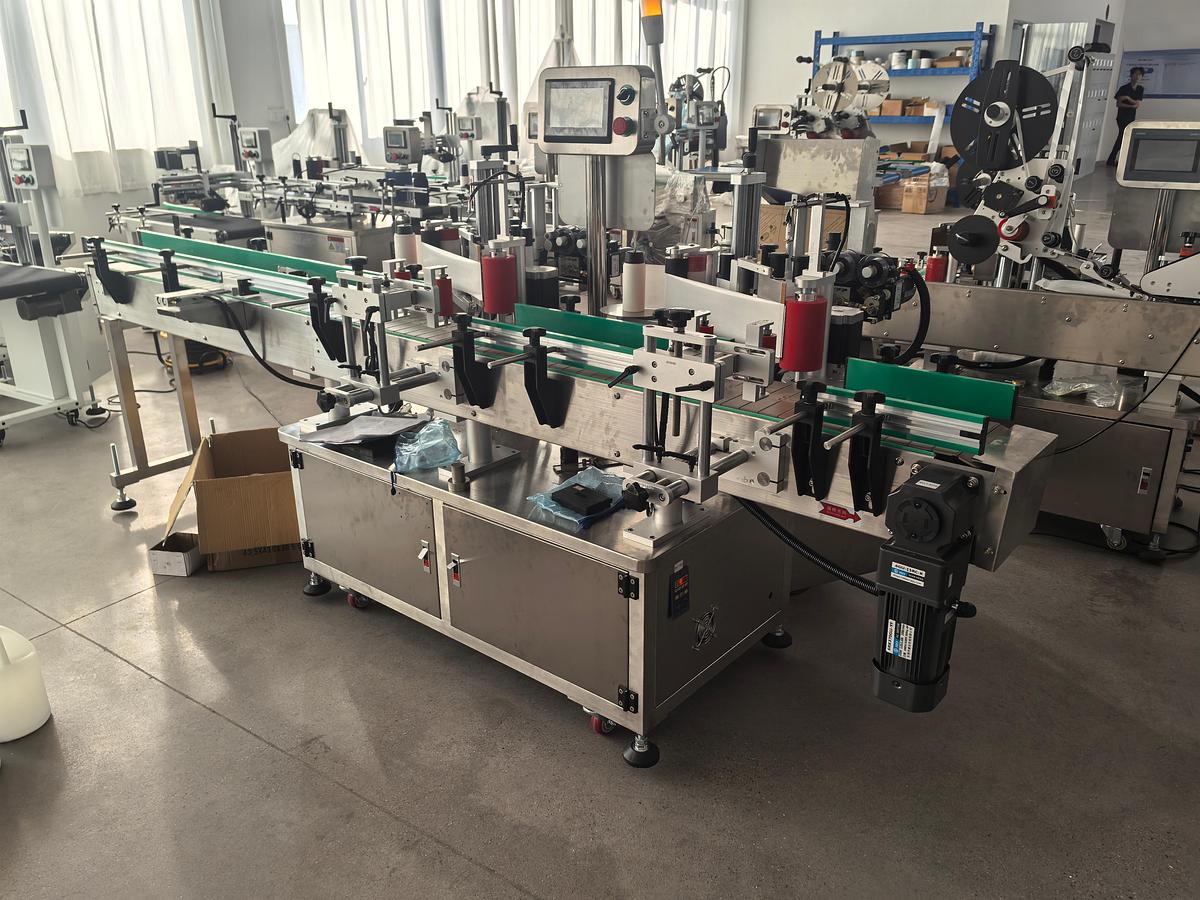

Double-Head Side Labeling Machine
Double-Head Side Labeling Machine
Contact us for price
Location:Ontario, CA
or
Call +1(626)320-2070
Description
Product Features
- PLC-controlled with stepper motor drive and user-friendly touchscreen interface.
- Easy and quick parameter adjustment; labeling speed and count clearly displayed.
- Sensor-detected products with PLC signal processing; label position adjustable via settings.
Specifications
| Year | 2025 |
| Condition | New |
| Stock Number | 179 |
| Speed | 30–50 pcs/min |
| Labeling Accuracy | ±0.08 in (±2 mm) |
| Applicable Label Width | 0.79–5.12 in (20–130 mm) |
| Applicable Label Length | 1.18–11.81 in (30–300 mm) |
| Applicable Product Length | 2.36–19.69 in (60–500 mm) |
| Applicable Product Width | 1.57–15.75 in (40–400 mm) |
| Applicable Product Height | 1.57–15.75 in (40–400 mm) |
| Conveyor Height | 27.56 in (700 mm) |
| Effective Belt Width | 15.75 in (400mm, adjustable according to product size) |
| Conveyor Speed | 0–78.74 ft/min (0–24 m/min) |
| Power Supply | 200-240Vac,50/60HZ,0.5KW |
| Machine Weight | 440.92 lb (200 kg) |
