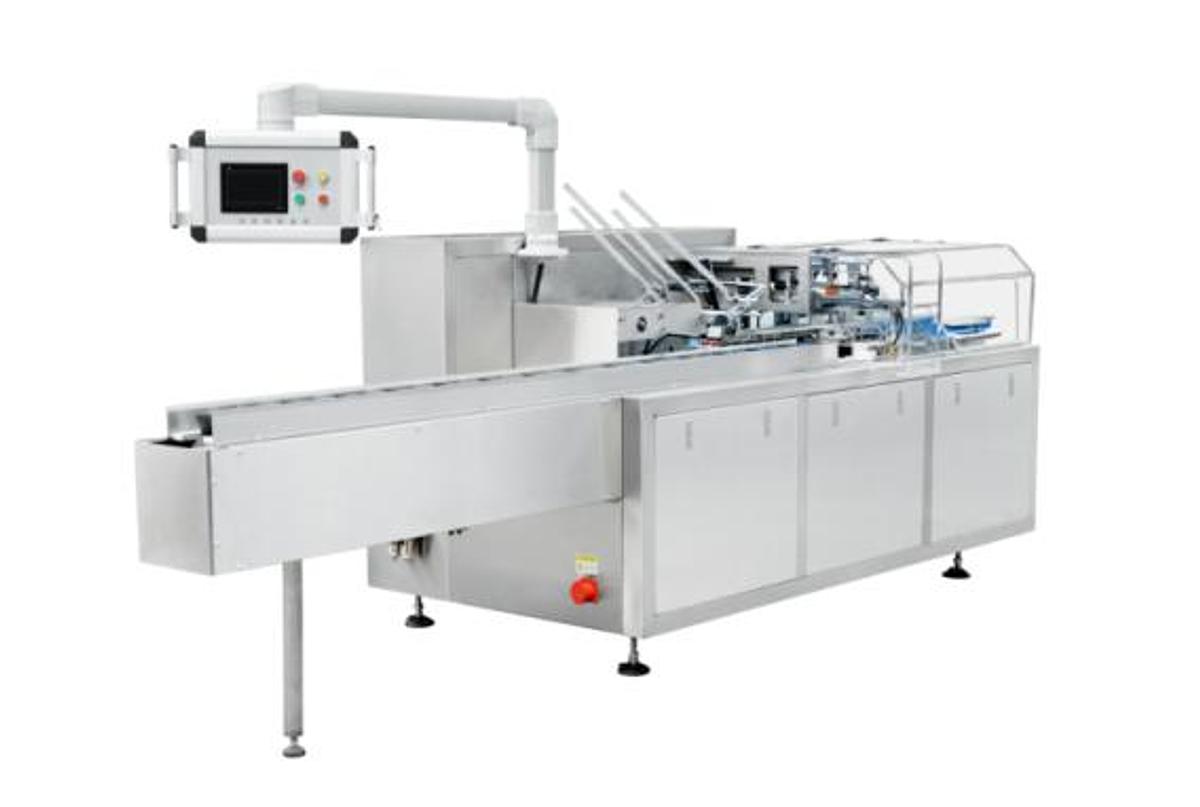

Automatic Cartoning Machine 160

Operating Steps:

1. Automatically place the product into the machine’s hopper.
2. The machine picks and opens a carton from the magazine.
3. The product is pushed into the open carton and moved along the conveyor.
4. The carton is conveyed to the folding station for flap folding and sealing.
5. The end sealing units seal both ends of the carton.
6. Finished cartons are conveyed out.

Features:

1. Fully automated process including product feeding, carton picking, product insertion, sealing, and output; compact and efficient design with easy operation and adjustment.
2. High automation with variable frequency motors, touchscreen interface, and PLC programmable control system.
3. Optical sensor tracking system ensures cartons are only picked when products are present, maximizing packaging material savings.
4. Wide packaging range with easy adjustments; quick changeover between different carton sizes.
5. No need to change molds when switching carton sizes,simple adjustments are sufficient.
6. Automatic stop if the product is not properly inserted, with main motor overload protection to ensure safe and reliable operation.
