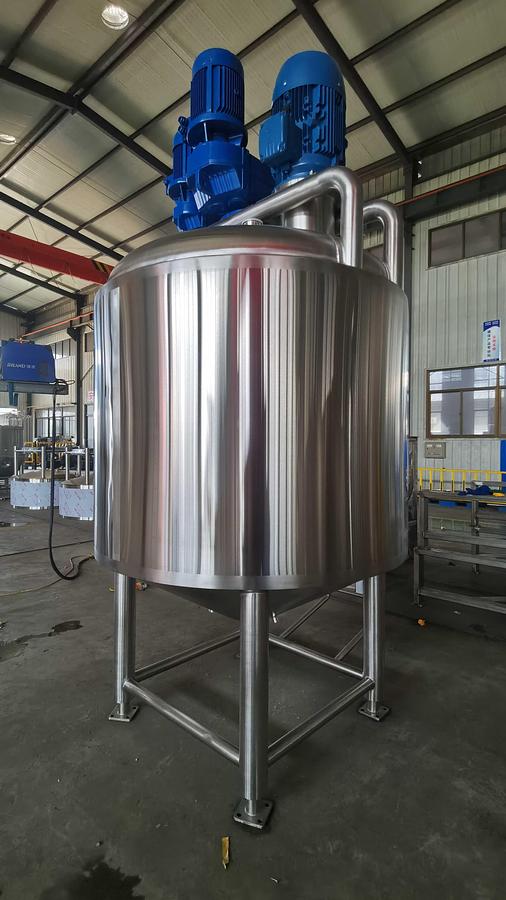

1000 gallon triple agitation mixing tank
1000 gallon triple agitation mixing tank
Contact us for price
Location:California
or
Call +1(626)320-2070
Description
Motor：UL listed drive.
Material：SUS316L for product contact surface. SUS304 for non-product contact surface. #4 finish
Jacket: ASME-U stamped jacket rated at 75 Psi with NB register.
Insulation: 2" rockwool insulation with outer sheathing
Triple agitation: Main agitator is scraper blade type,10HP 25RPM. Offset paddle type agitator, 5HP 54RPM. The third agitator is high shear disperser type with 50HP 1750RPM.
CIP: With 2 Spray balls.
Legs：Adjustable stainless steel legs
Specifications
| Manufacturer | Hongda |
| Model | Mixing tank |
| Year | 2025 |
| Condition | New |
| Stock Number | 0 |
| Interior construction | 316L Stainless Steel, with #4 finish. |
| Exterior construction | 304 Stainless Steel, with #4 finish. |
| Heat transfer surface | Side and bottom stainless steel dimple jacket rated for 75 psi. |
| Insulation | Rock wool 2" thick. |
| Vertical agitation | Triple agitators. |
| Motor | UL listed brand |
| Tank top | Dished head with manway, CIP cleaning. |
| Tank bottom | Conical with 15 or 30 degree slope and center outlet, flat bottom structure optional. |
| Inlet/outlet ports | Sanitary clamp connections. |
| Legs | Adjustable stainless steel legs. |
| Delivery time | In stock |
