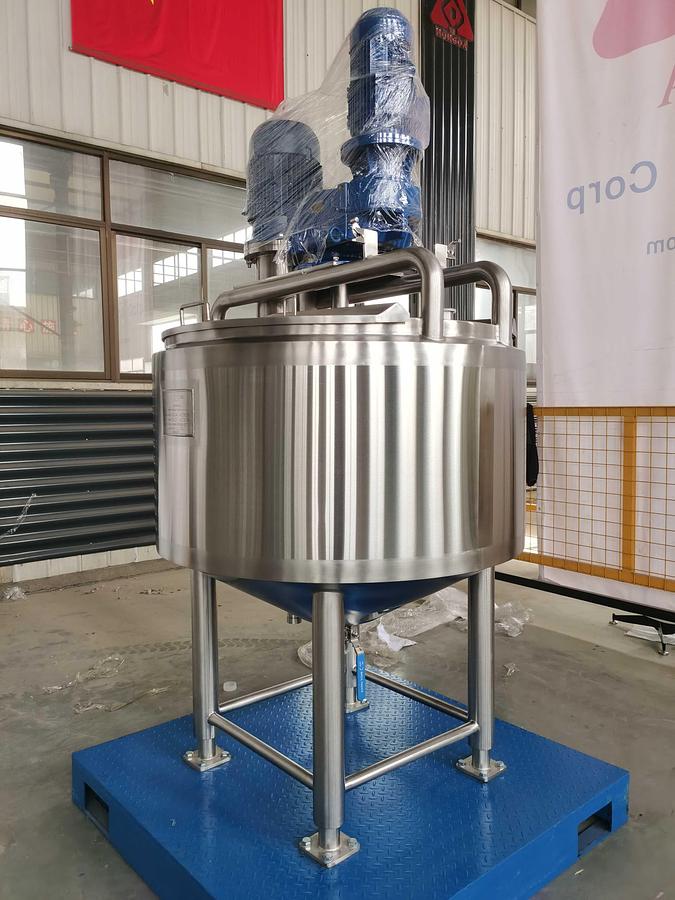

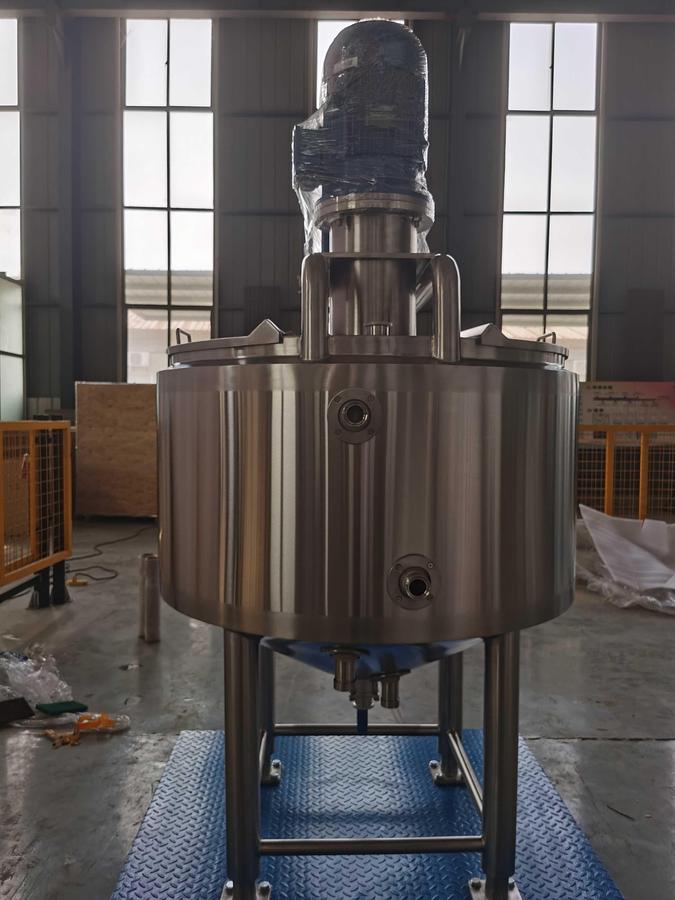

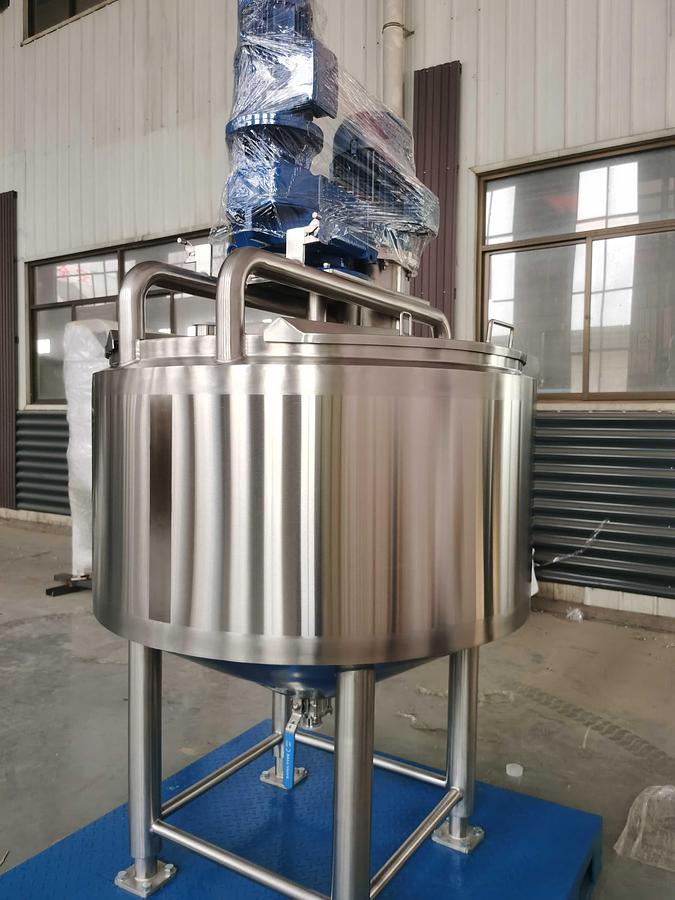

100 Gallon Double agitation high shear disperser mixer
100 Gallon Double agitation high shear disperser mixer
Contact us for price
Location:California
or
Call +1(626)320-2070
Description
Hongda provides complete processing and packaging equipment and solutions, with robotic integration for fully automated production lines. Learn more at www.hongdaamerica.com.
100 Gallon Double agitation high shear disperser mixer Motor：UL listed drive. Material：SUS316L for prodcut contact surface. SUS304 for non-prodcut contact surfare.

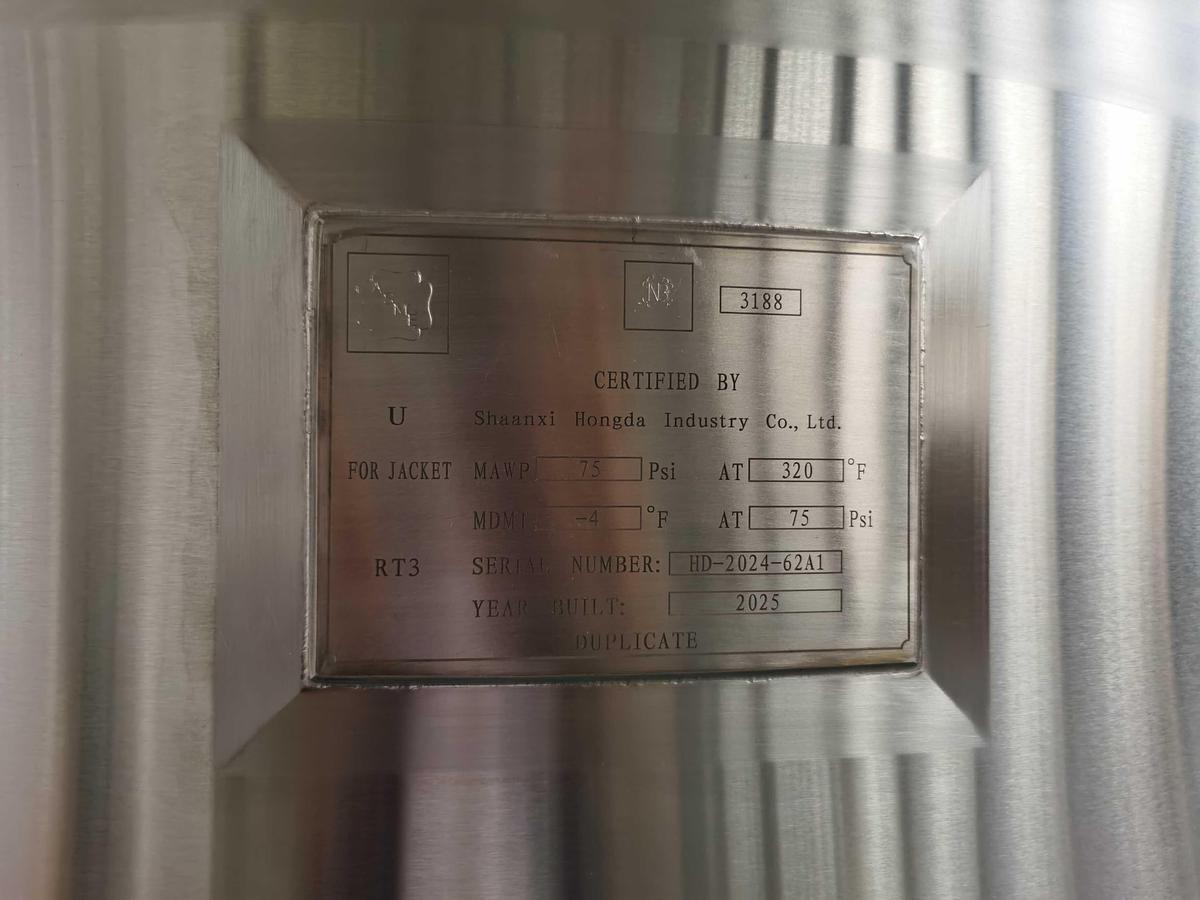

Jacket: ASME-U stamped jacket rated at 75 Psi with NB register.
Insulation: 2" rockwool insulation with outter sheathing

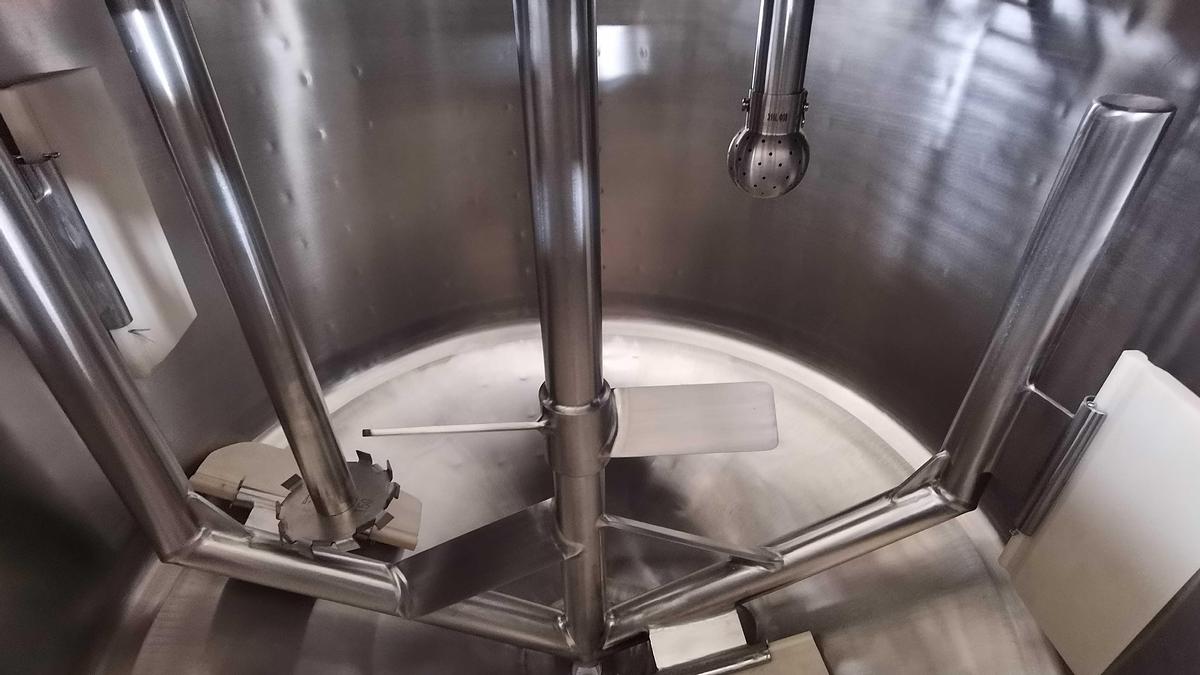

Double agitation: Main agitator is scraper balde type,4HP 28RPM. Offset high shear disperser type with 10HP 1750RPM. Finish：#4 finish.
CIP: WIth 1 Spray ball. Legs：Adjustable stainless steel legs
Specifications
| Manufacturer | Hongda |
| Model | Mixing tank |
| Year | 2025 |
| Condition | New |
| Stock Number | 152 |
| Interior construction | 316L Stainless Steel, with #4 finish. |
| Exterior construction | 304 Stainless Steel, with #4 finish. |
| Heat transfer surface | Side and bottom stainless steel dimple jacket rated for 75 psi. |
| Insulation | Rock wool 2" thick. |
| Vertical agitation | Double agitation: Main agitator is scraper balde type,4HP 28RPM. Offset high shear disperser type with 10HP 1750RPM. |
| Motor | UL listed brand |
| Tank top | Inverted cone with 15 degree slope head with double open hinged lids, CIP cleaning. |
| Tank bottom | Conical and center outlet. |
| Inlet/outlet ports | Sanitary clamp connections. |
| Legs | Adjustable stainless steel legs. |
| Delivery time | In stock |
| Packing size | 51"*51"*94" 1803lbs |
