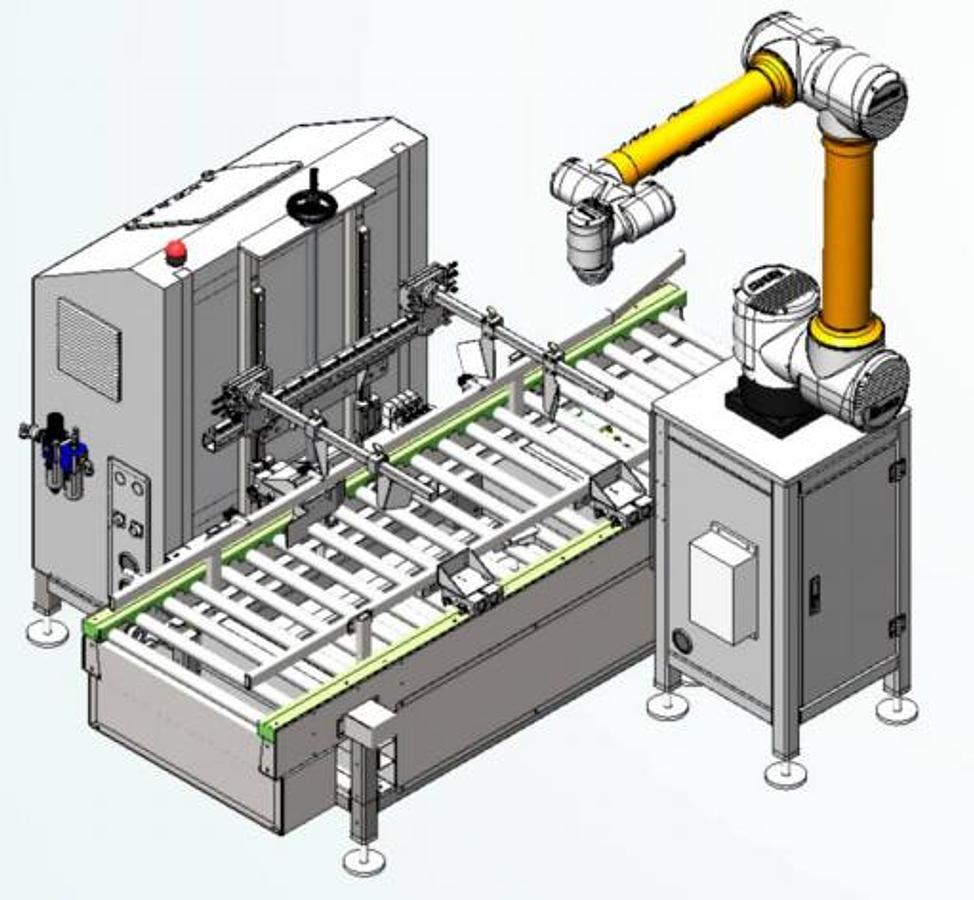

Robotic Case Packing Machine

Robotic Case Packing Machine

Contact us for price

Location:Ontario, CA

Description

Hongda provides complete processing and packaging equipment and solutions, with robotic integration for fully automated production lines. Learn more at www.hongdaamerica.com.


  1. High flexibility: Can be configured with various product arranging options and easily integrated into production lines, optimizing workflow and improving efficiency. Compatible with multiple quick-change grippers.
  2. High efficiency: Achieves up to 10 packing cycles per minute.
  3. High safety: Equipped with collision detection and posture-holding function in case of power loss.
  4. User-friendly: Intuitive touchscreen interface with a clean design and clear operation process.
  5. Wide application: Suitable for industries such as beverages,pharmaceuticals, and food.

Specifications

Year2026
ConditionNew
Stock Number243
Payload66 lb(including the gripper)
Working radius75 in
Applicable carton sizeCustomized
Applicable product sizeCustomized
Empty run cycle time10 times/min
Air supply87–116 psi
CommunicationEtherCAT
MaterialMain frame painted carbon steel
Operating temperature23°F to 113°F
Power supply200-240Vac,50/60Hz,3.25 Kw
Footprint79" × 68"
IP levelIP54
Carton infeed height22 in
Changeover time≤15 minutes
Air consumption>17.6 CFM
