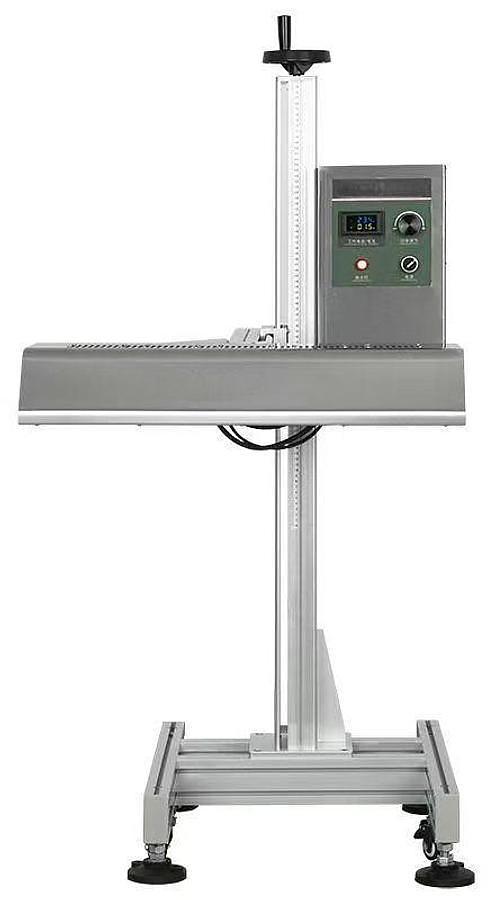

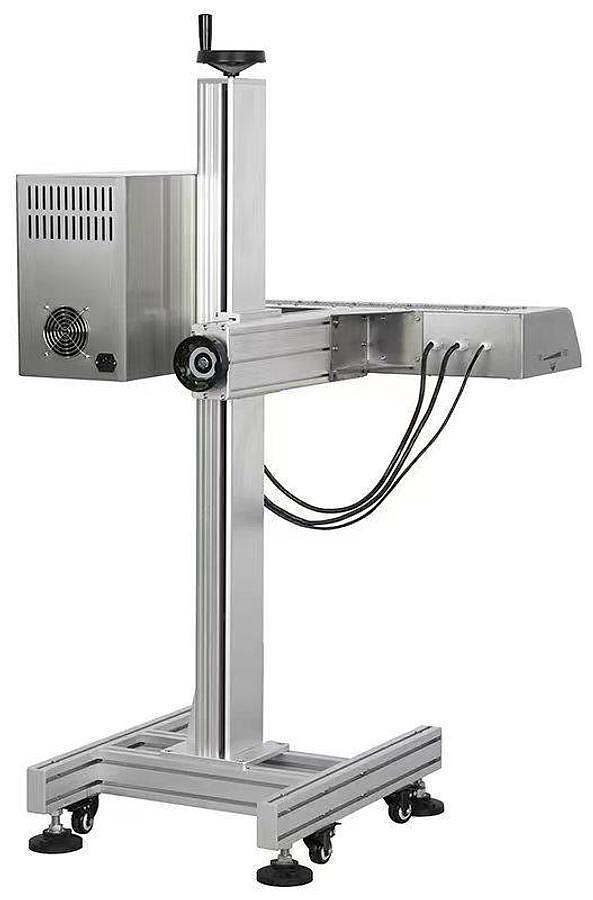

LGYF-2200A Continuous Induction Aluminum Foil Sealer
LGYF-2200A Continuous Induction Aluminum Foil Sealer
Contact us for price
Location:Ontario, CA
or
Call +1(626)320-2070
Description
Overview
- This machine uses electromagnetic induction heating. Through non-contact induction, the aluminum foil is instantly heated, melting the adhesive layer of the sealing liner. After cooling, the liner bonds to the bottle mouth to complete the seal.
- Induction sealing is non-contact, fast, and provides excellent seal integrity. It is suitable for sealing bottles made of non-metallic materials such as plastic and glass.
- Widely used in industries such as pharmaceuticals, food, beverages, oils, and daily chemical products.
Precautions
- This machine can only seal round bottle mouths. It cannot be used for metal bottles or bottles with metal caps.
- The adhesive layer of the induction sealing liner must match the material of the container being sealed. Glass containers may also use heat-melt adhesive liners.
- Do not place any objects on the sealing head.
- Do not use this machine with flammable or explosive products or in hazardous environments.
Specifications
| Manufacturer | Hongda |
| Model | LGYF-2200A |
| Year | 2025 |
| Condition | New |
| Stock Number | 251 |
| Sealing diameter | φ0.79–2.36 in (20-60mm) |
| Sealing speed | 5-18m/min; 80-300 jar/min |
| Sensing head adjustment height range | 0–31.5 in (0-800mm) |
| Sensing head adjustment front and rear range | 0–10.24 in (0-260mm) |
| Voltage | 220Vac±10%, 50/60HZ,2P |
| Power | 2300W |
| Optional | Conveyor Belt |
| Cooling Method | Air Cooling |
| Dimensions | 27.6" × 35.4" × 59.1" |
