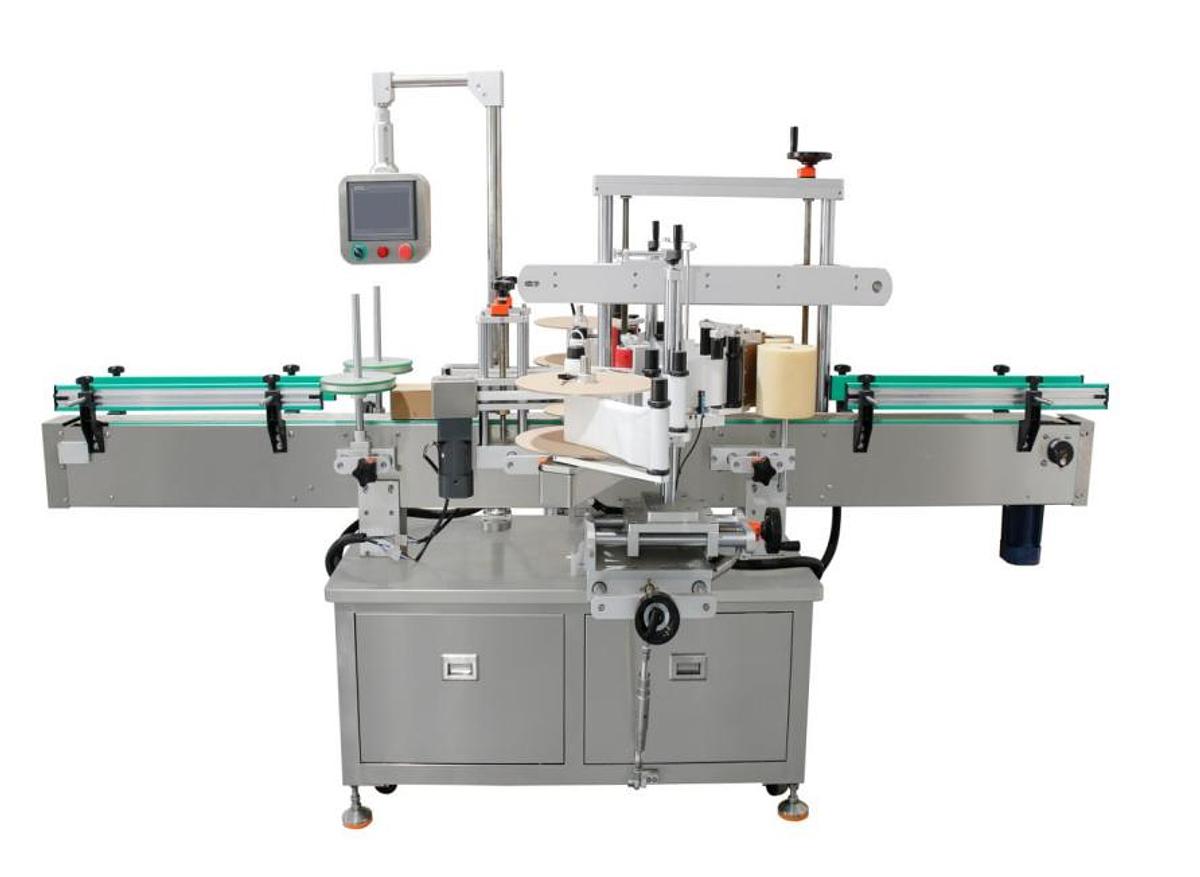

Double-Side Labeling Machine
Double-Side Labeling Machine
Contact us for price
Location:Ontario, CA
or
Call +1(626)320-2070
Description
Features
- User-friendly operation system with Chinese and English touchscreen interface.
- Specially designed shaping mechanism ensures precise positioning of containers.
- Bottle pressing mechanism uses dual upright rods and dual-screw chain transmission for easy adjustment.
- Labels are smoothed by a scraper and pressed by a non-powered sponge in a single pass, preventing bubbles and wrinkles.
- Includes 2 thermal transfer printers
Specifications
| Year | 2025 |
| Condition | New |
| Stock Number | 252 |
| Applicable Label Length | 1.57–11.02 in (40-280mm) |
| Applicable Label Width | 0.79–5.12 in (20-130mm) |
| Labeling Speed | 3.3 – 98.4 ft/min (1–30 m/min) |
| Labeling Accuracy | ±0.079 in (±2 mm) |
| Chain Plate Width | 3.94 in (customizable) |
| Maximum Label Roll Diameter | 11.81 in (300mm) |
| Machine Dimensions (L × W × H) | 108 × 55 × 63 in |
| Power Supply | 200-240Vac,50/60Hz,2.3KW |
| Machine Weight | 926 lbs |
