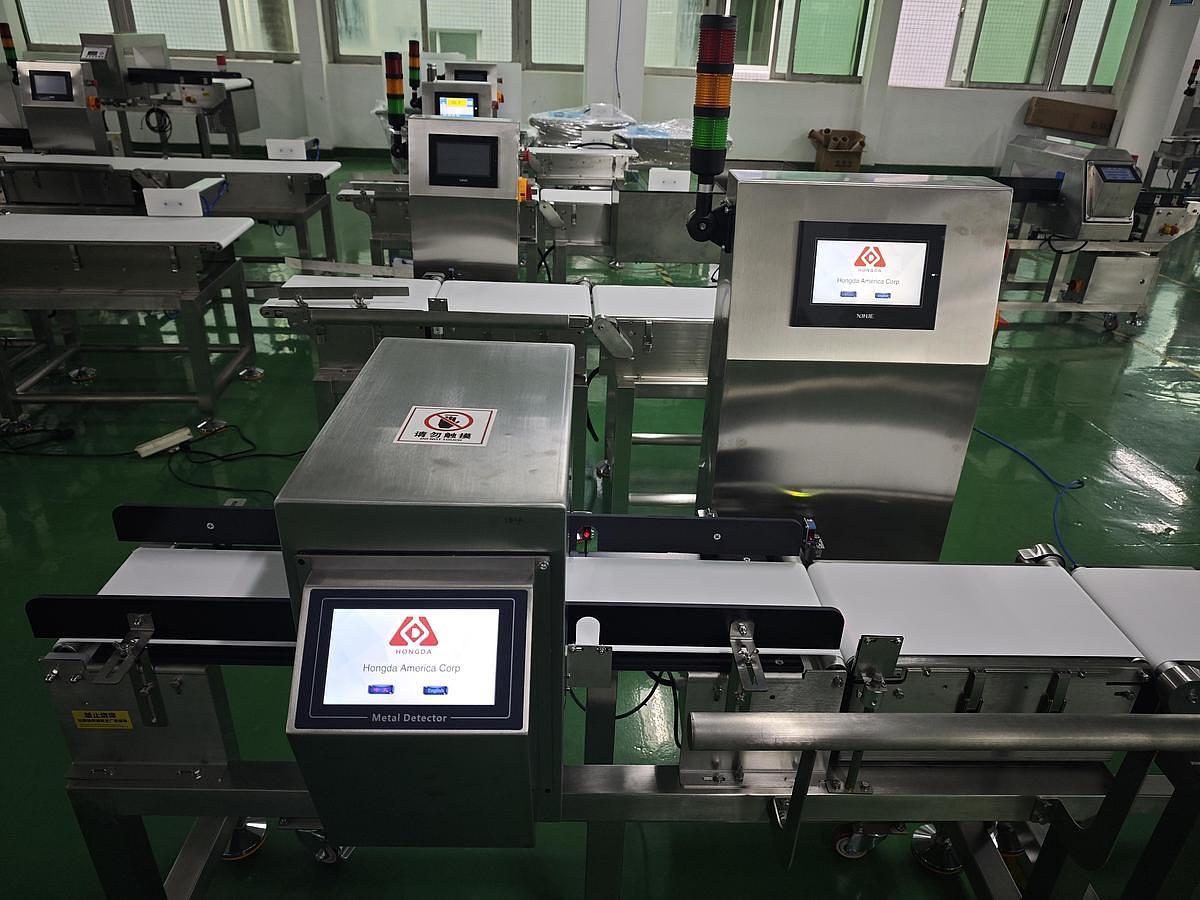

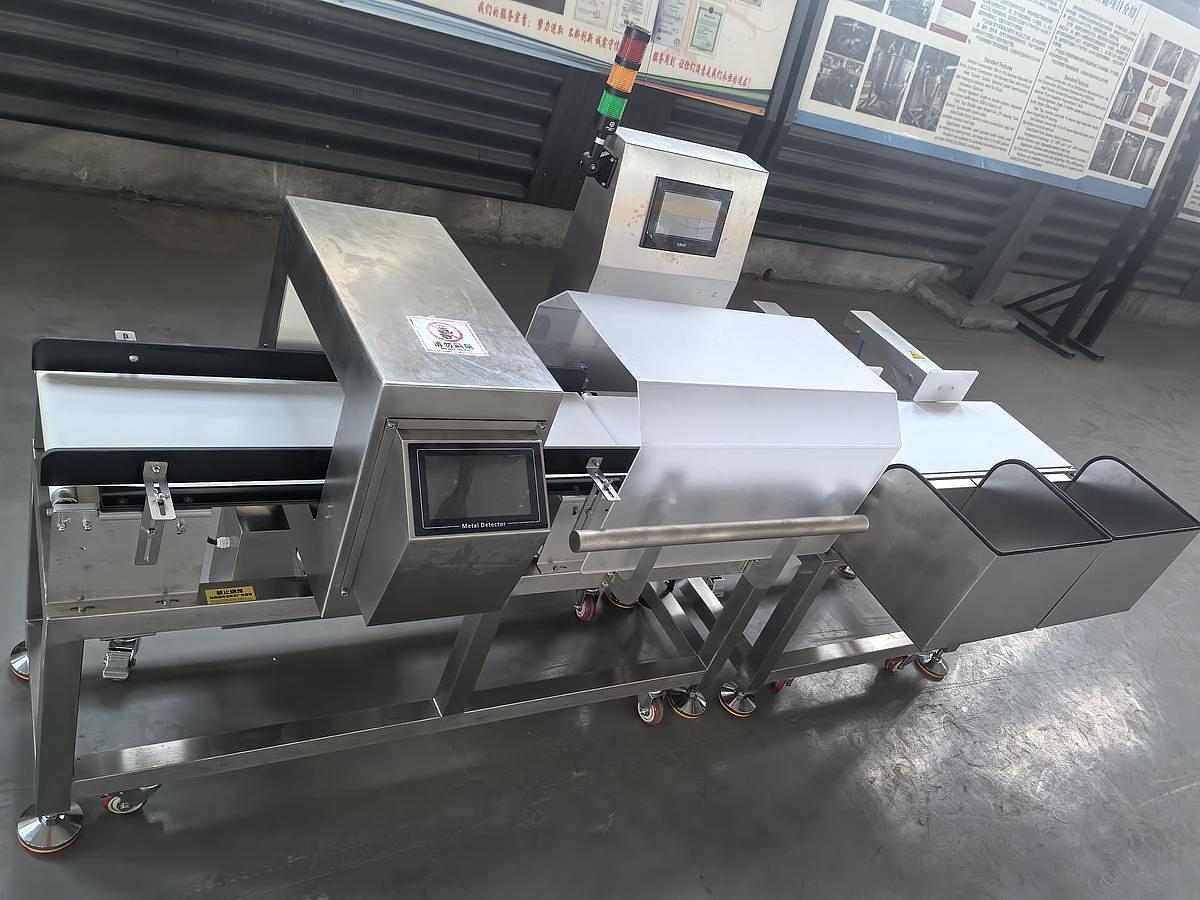

Metal Detection and Checkweigher Integrated Machine
Metal Detection and Checkweigher Integrated Machine
Contact us for price
Location:Ontario, CA
or
Call +1(626)320-2070
Description
Hongda provides complete processing and packaging equipment and solutions, with robotic integration for fully automated production lines. Learn more at www.hongdaamerica.com.
Specifications
| Year | 2026 |
| Condition | New |
| Stock Number | 306 |
| Metal Detector | Below are the specifications of the metal detector. |
| Detection window height | 7.87 in (200 mm), customizable according to actual requirements. |
| Detection speed | 91.9 ft/min (28 m/min), adjustable |
| “Detection sensitivity | Ferrous ≥ 0.059 in (1.5 mm); Non-ferrous (copper, aluminum) ≥ 0.079 in (2.0 mm); 304 stainless steel ≥ 0.098 in (2.5 mm) |
| Power Supply | 200-240Vac,50/60Hz |
| Alarm method | Automatically rejects nonconforming products when metal contaminants are detected. |
| Machine material | Entire frame made of SUS304 food-grade stainless steel, compliant with HACCP, GMP, FDA, CAS, and other standards. |
| Metal detector platform size | L39.4~59.1 in (L1000~L1500 mm) × W11.8 in (W300 mm) |
| Checkweigher | Below are the specifications of the checkweigher |
| Weighing range | 0.18 oz~105.8 oz (5g~3000g) |
| Weighing accuracy | ±0.035 oz (±1 g) |
| Weighing section platform width | 11.8 in (300 mm) |
| Reject section platform length | 31.5 in (800 mm) |
| Reject section platform width | 11.8 in (300 mm) |
| Display resolution | 0.0035 oz (0.1 g) |
| Speed | 50–80 pcs/min, adjustable |
| Conveyor height from floor | 30.7 ± 2.0 in (780 ± 50 mm) |
| Power | 200-240Vac,50/60Hz |
| Operating temperature | 32°F to 104°F (0°C to 40°C) |
| Rejection method | Double-pusher ejection |
| Waterproof rating | IP66 |
