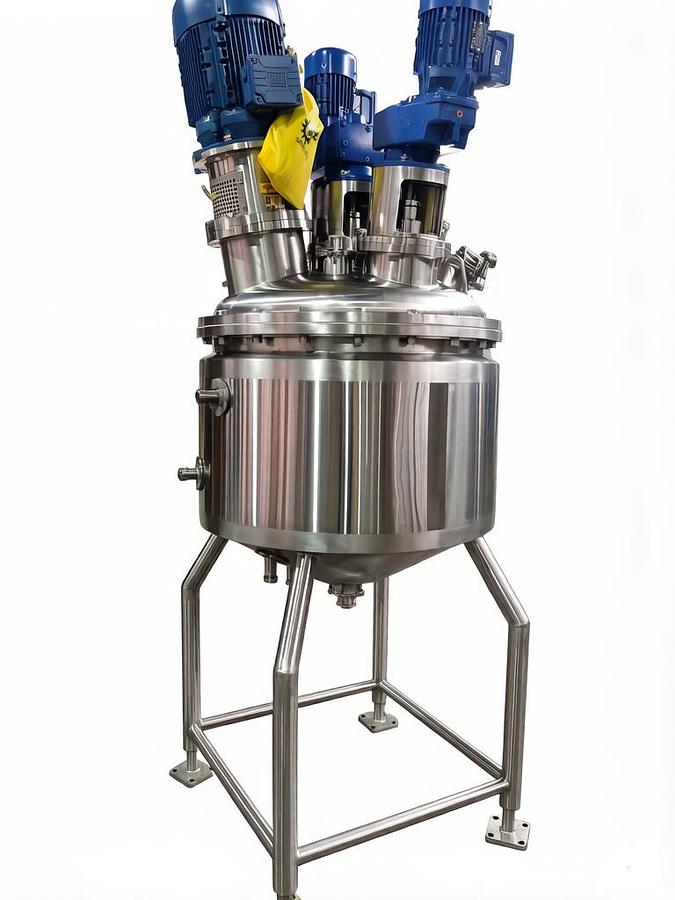

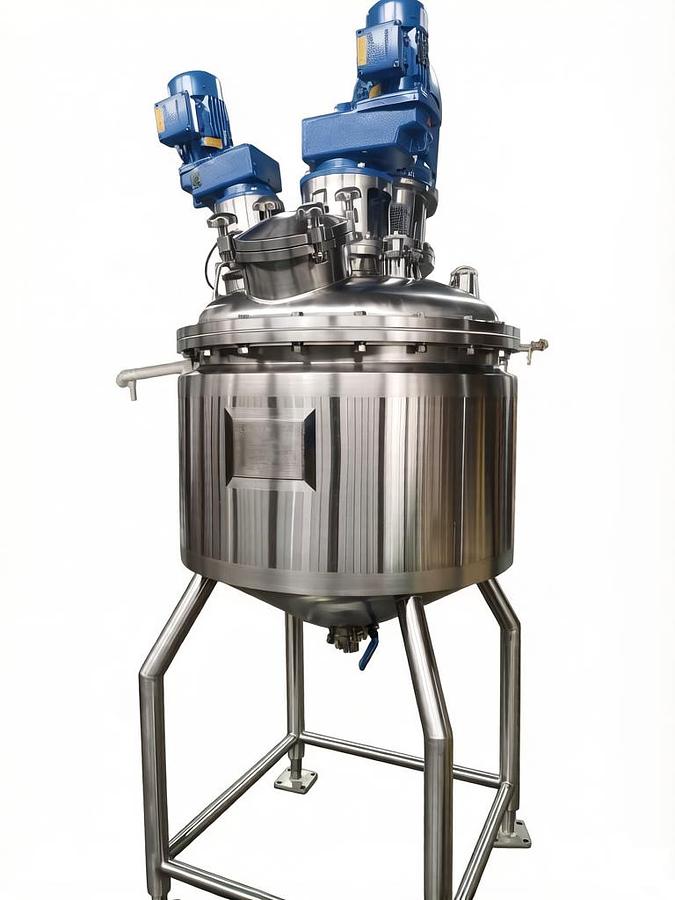

50 USG Cone Bottom Vacuum Kettle / Mixing Tank, Featuring Triple Agitation and an Emulsifying Mixer
50 USG Cone Bottom Vacuum Kettle / Mixing Tank, Featuring Triple Agitation and an Emulsifying Mixer
Contact us for price
Location:California
or
Call +1(626)320-2070
Description
Hongda provides complete processing and packaging equipment and solutions, with robotic integration for fully automated production lines. Learn more at www.hongdaamerica.com.
50 Gallon high shear mixing tank Motor：UL listed drive. Material：SUS316L for prodcut contact surface. SUS304 for non-prodcut contact surfare.
Jacket: ASME-U stamped jacket rated at 75 Psi with NB register.
Full Vacuum Tank.
Insulation: 2" rockwool insulation with outter sheathing

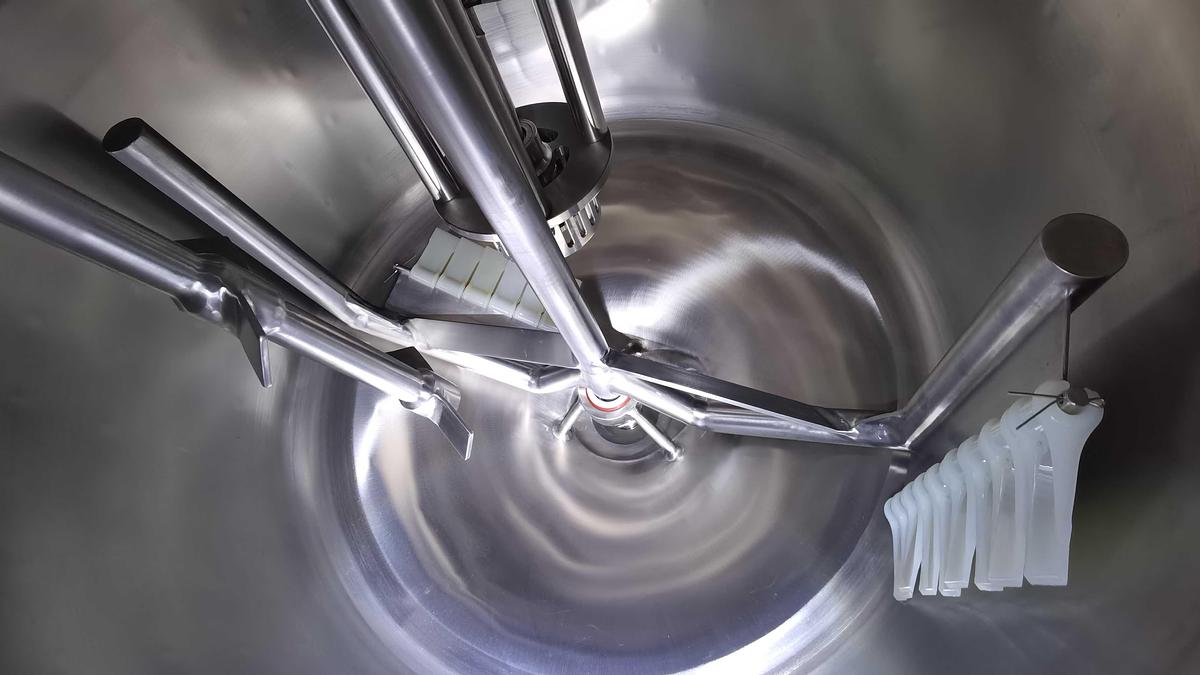

Triple agitation: Main agitator is scraper balde type. Offset paddle type agitator come with a third agitator is high shear emulsifying mixer. Finish：#4 finish.
CIP: WIth 2 Spray balls. Legs：Adjustable stainless steel legs
Specifications
| Manufacturer | Hongda |
| Model | Mixing tank |
| Year | 2025 |
| Condition | New |
| Stock Number | 1 |
| Interior construction | 316L Stainless Steel, with #4 finish. |
| Exterior construction | 304 Stainless Steel, with #4 finish. |
| Heat transfer surface | Side and bottom stainless steel dimple jacket rated for 75 psi. |
| Insulation | Rock wool 2" thick. |

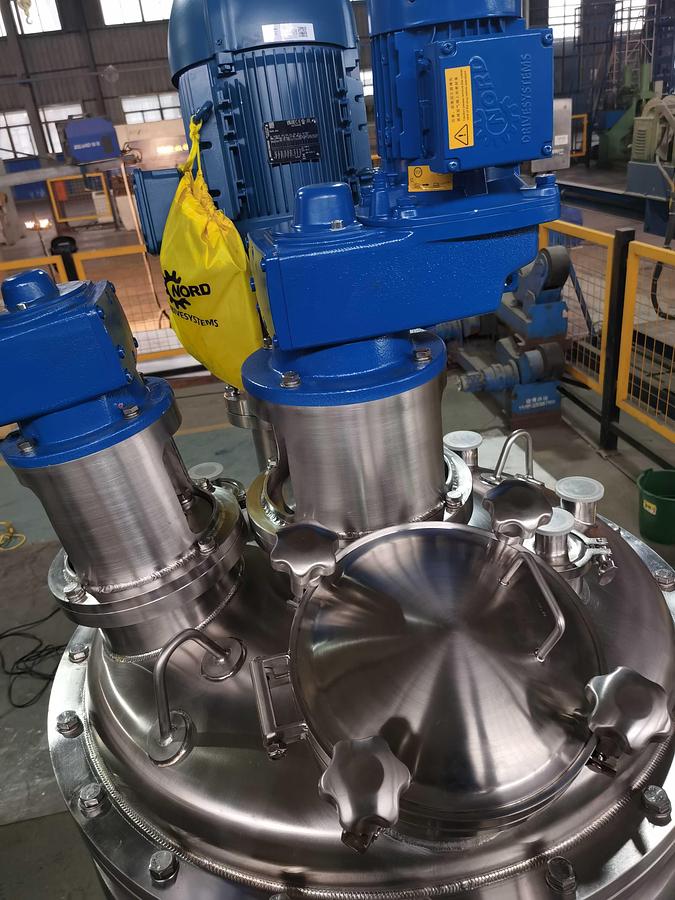

| Vertical agitation | Triple agitators. Main agitator is scraper balde type,7.5HP 29RPM. Offset paddle type agitator, 3HP 54RPM. The third agitator is high shear disperser type with 20HP 1750RPM. |
| Motor | UL listed brand |
| Tank top | Dished top with manway. |
| Tank bottom | Conical with 15 or 30 degree slope and center outlet, flat bottom structure optional. |
| Inlet/outlet ports | Sanitary clamp connections. |
| Temperature indicating | 1/2" FNPT and 1 1/4" UNEF temperature sensor interface. |
| Legs | Adjustable stainless steel legs. |
| Delivery time | In stock |
| Packing size | TBD |
