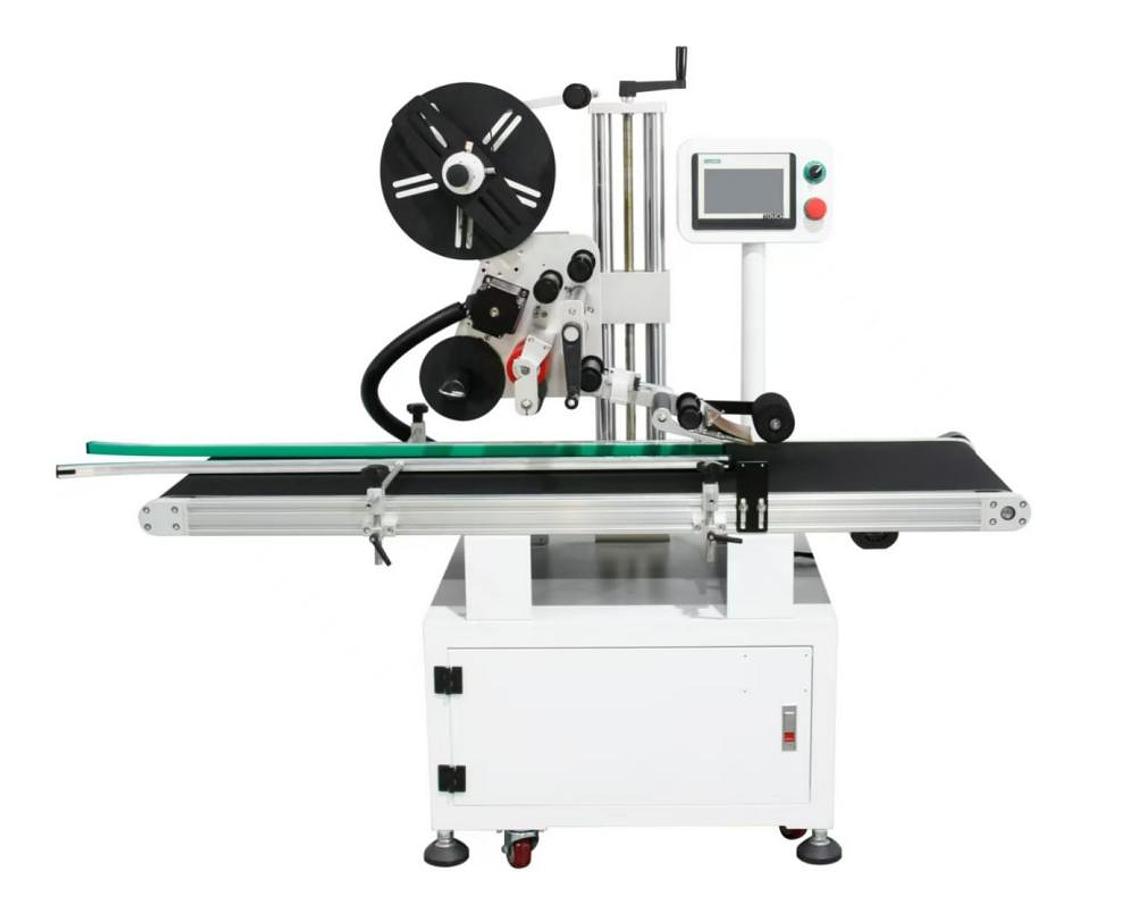

Flat Labeling Machine 210

Flat Labeling Machine 210

Contact us for price

Location:Ontario, CA

or
Call +1(626)320-2070

Description

Hongda provides complete processing and packaging equipment and solutions, with robotic integration for fully automated production lines. Learn more at www.hongdaamerica.com.


Features

  • The machine adopts PLC control, a stepper motor drive, and a touchscreen interface, making operation simple and easy to understand.
  • Parameters can be adjusted quickly and conveniently. Labeling speed and labeling count are clearly displayed.
  • Once the leading edge of the label adheres to the package, the product immediately carries the label forward to complete the labeling process.
  • The sensor detects the product, and the signal is processed by the PLC. The labeling position can be adjusted forward or backward through parameter settings.


Label Requirements

  • Roll format: Labels supplied in rolls (single-row). Gap between labels: 0.08–0.12 in (2–3 mm).
  • Margin between label and release liner edge: 0.08–0.12 in (2–3 mm).
  • Release liner material: Glassine liner.
  • Die-cutting tolerance: ±0.008 in (±0.2 mm). The liner must not be cut or damaged.
  • Roll specifications: Label core inner diameter 3.0 in (76.2 mm); maximum outer diameter 11.8 in (300 mm).
Show All

Specifications

Year2026
ConditionNew
Stock Number336
Applicable product length1.2–19.7 in (30–500 mm)
Applicable product width0.8–15.7 in (20–400 mm)
Applicable product height0.04–13.0 in (1–330 mm)
Applicable label length1.2–11.8 in (30–300 mm)
Applicable label width0.8–5.1 in (20–130 mm)
Labeling speed50–60 pcs/min (depending on product size)
Labeling accuracy±0.08 in (±2 mm)
Conveyor dimensions59.1 × 15.7 × 27.6 in (1500 × 400 × 700 mm)
Belt effective width15.7 in (400 mm)
Belt conveyor speed0–78.7 ft/min (0–24 m/min, adjustable)
Power supply200-230Vac,50/60Hz,0.5kW
Machine dimensionsL59× W28× H59in (depending on actual machine size)
Weight220 lb (100 kg)
