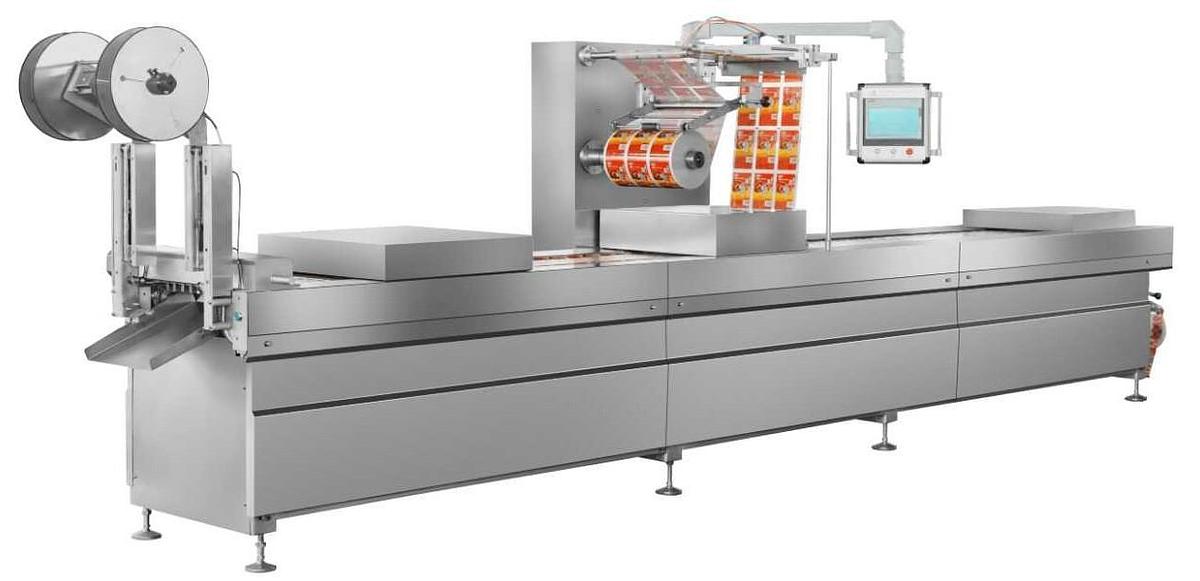

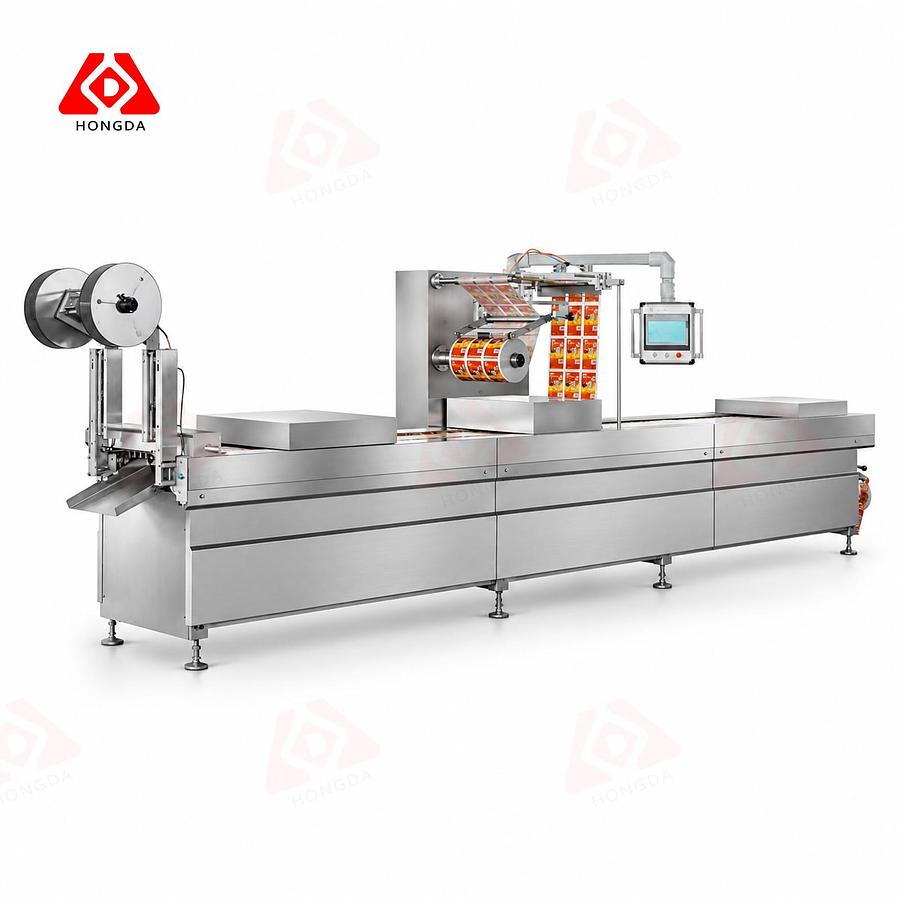

Automatic Thermoforming Vacuum Packaging Machine 520

Hongda provides complete processing and packaging equipment and solutions, with robotic integration for fully automated production lines. Learn more at www.hongdaamerica.com.

Control System

• Adopts Siemens PLC computer control.
• Equipped with a Siemens true-color HMI touch screen.
• Siemens servo system control provides high-speed, high-precision servo travel, ensuring aesthetically pleasing film forming and heat sealing during production.
• Utilizes original TYC chains from Taiwan and AirTAC cylinders & solenoid valves to ensure precise mechanical coordination.
• Uses Schneider Electric series low-voltage components, with comprehensive safety protection measures, enabling continuous operation and improving electrical stability and service life.
• Electrical components and servo drives are installed separately to prevent signal interference during operation, ensuring normal equipment function.

Key Features

• Custom Tooling: Tailored mold production to meet specific product packaging needs.
• Integrated Safety System: Automatic protection to prevent accidents and operator errors.
• Contamination-Free Design: Oil-free, maintenance-free transmission ensures a clean production environment.
• Precision Positioning: Adjustable photoelectric tracking for accurate printed film alignment.

Technical Specifications

• Premium Construction: Built with SUS304 stainless steel, aluminum alloy, and high-strength polymers for superior durability and corrosion resistance.
• Precision Lifting: German-engineered lifting mechanism ensures smooth, stable operation with an ultra-low failure rate.
• 30-Second Changeover: Integrated longitudinal cutters allow for safe, simple tool swaps in just 30 seconds.
• Enhanced Safety: Features a hidden cross-cutting system and multi-point safety alarms to prevent operational hazards.
• Efficient Waste Recovery: Energy-saving, noise-free scrap collection system designed for easy disassembly.
• Advanced Pneumatics: High-performance components reduce wear and tear, lowering overall maintenance and operating costs.
• Smart & Eco-Friendly: Intuitive interface with high-speed performance and low energy consumption.
• Versatile Production: Supports multiple mold types and stepping sizes; switching between different product formats is fast and effortless.

Detailed Configuration

• Core Logic: Siemens Smart SR60 PLC for high-capacity I/O processing.
• HMI: Siemens 10-inch Smart 1000IE V3 high-definition color touch screen.
• Motion Control: Siemens Closed-Loop Servo System for high-speed, high-precision stepping.
• Data Link: Advanced PROFINET (PNT) connection between controller and servo for faster response times compared to traditional relays.
• Pneumatics: AirTAC (Taiwan) valve-terminal pneumatic system.
• Electronics: Schneider (France) electrical components.
• Chain System: Heavy-duty TYC (Taiwan) chains.
• Sensors: Banner (USA) photoelectric tracking for precise color film alignment with automatic memory and correction.
• Vacuum Pump: High-capacity German eco-friendly pump achieving a vacuum level of 0.1 mbar.
• Vacuum Monitoring: Real-time PLC detection ensures every package meets vacuum standards; system triggers auto-stop/alarm if levels are insufficient.
• Thermal Control: High-precision temperature management for heating plates during operation.
