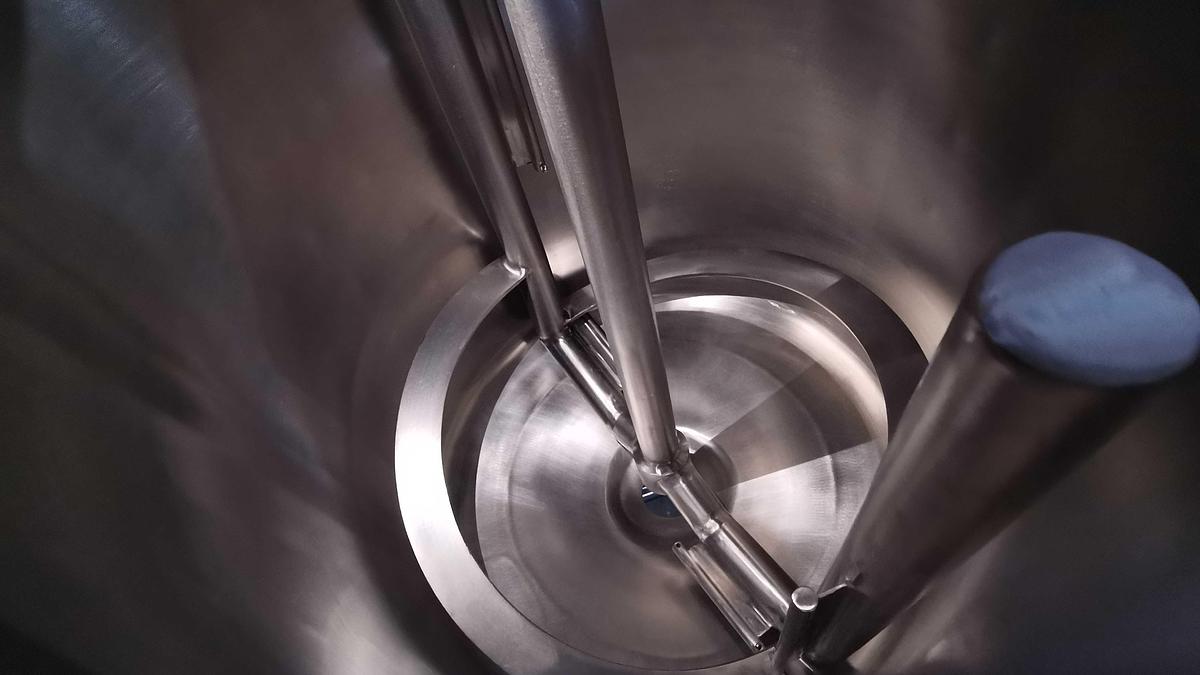

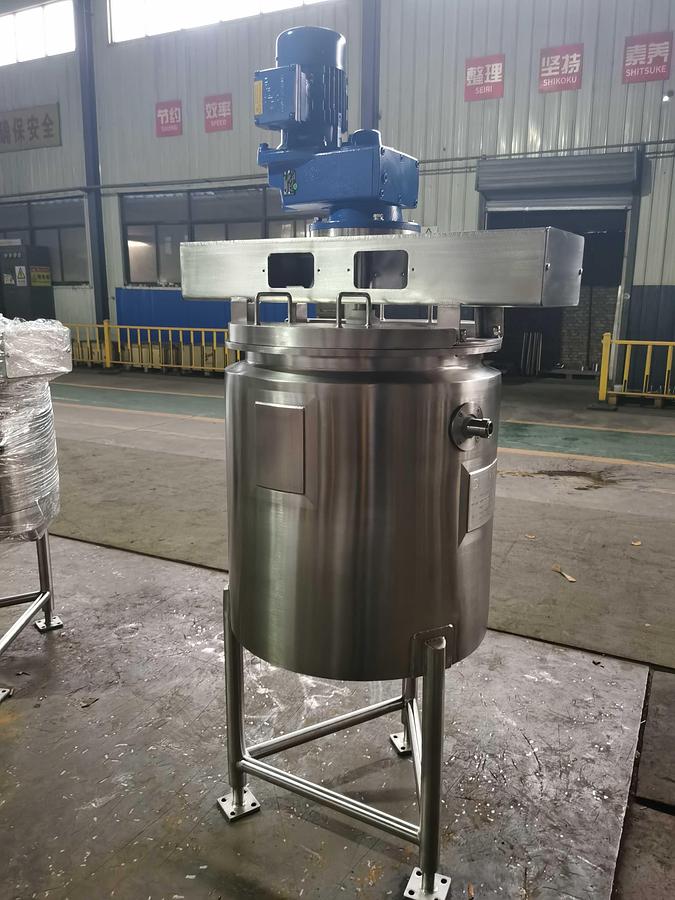

30 gallon Steam Jacketed Single Mixing Tank

Hongda provides complete processing and packaging equipment and solutions, with robotic integration for fully automated production lines. Learn more at www.hongdaamerica.com.

SUS316 for product contact surface.

SUS304 for non-product contact surface.

Steam jacket

Single Mixing

* Sanitary configuration.

* Constructed of stainless steel. Interior Construction: 316 Stainless Steel, with #4 finish.Exterior Construction: 304 Stainless Steel, Ra32 finish.

* Jacket is ASME-U Stamped at 100 Psi and NB registered. Rock wool 2" thick insulation jacket.

* Tank body to have 3" center bottom discharge connection tri-clamp.

* Agitation is UL listed brand and bridge mounted. Main agitation to be single motion, side and bottom scraped surface type with vertical ribbons.

* Top lids. Tank Bottom: Conical bottom and center outlet.

* Inlet/Outlet Ports: Sanitary Clamp Connections.

* Legs: Adjustable stainless steel legs.
