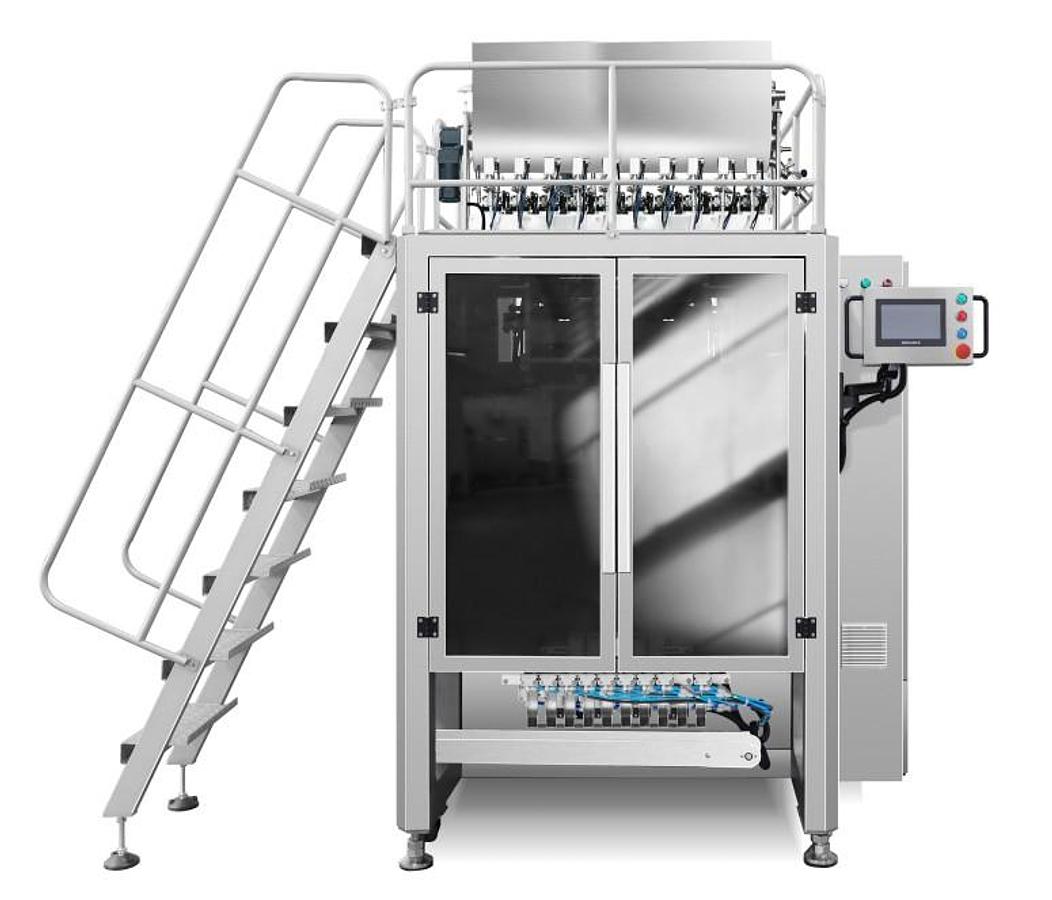

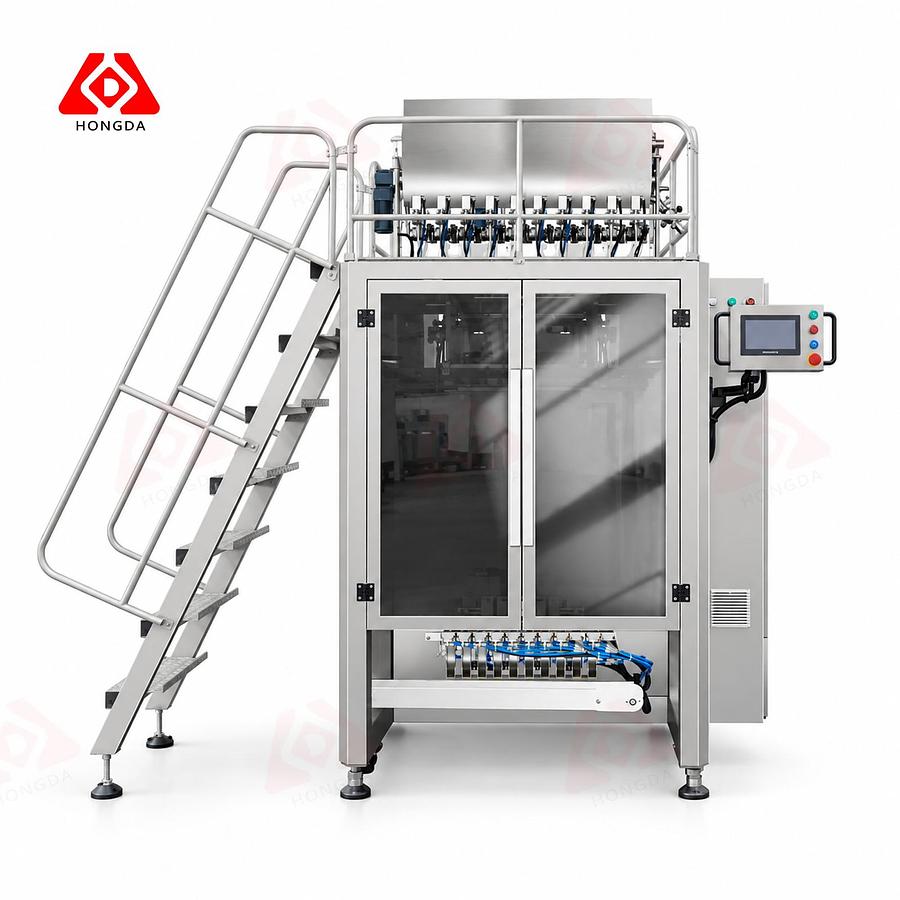

12-Lane Sauce Packaging Machine

Hongda provides complete processing and packaging equipment and solutions, with robotic integration for fully automated production lines. Learn more at www.hongdaamerica.com.

I. Machine Function Overview

• Automated Operation:The packaging machine automatically completes the entire production cycle, including product dosing/metering, bag forming, sealing, coding, and cutting.
• Bus-Based PLC Control: Equipped with a high-performance motion bus PLC and a multi-language touchscreen display for intuitive and simple operation.
• Stability & Real-Time Adjustment: The system runs with high stability, allowing operators to adjust parameters without stopping the machine.
• Data Management: Displays real-time production speed and batch counts. It features a self-diagnostic function for equipment faults and can store up to 100 sets of parameters, making product changeovers fast and convenient.
• Connectivity: Includes an Ethernet port for seamless integration into EMS.
• Servo-Driven Mechanism: Utilizing a bus-controlled servo motor for the thermal sealing and bag-pulling process.
• Flexible Length Adjustment: Bag length can be set and modified directly via the touchscreen with high precision, eliminating the need to replace mechanical components.
• Optical Registration: Equipped with a high-performance photoelectric tracking system. When using materials with eye marks, the system ensures precise alignment to deliver a complete and perfectly centered brand logo/pattern.
• Pneumatic Piston Pump: Utilizes a high-precision pneumatic piston pump for quantitative filling. It offers high-speed operation with a filling accuracy of ±0.5% to ±3% (varying based on the specific material properties).
• Hygienic and Safe Design:Designed with an open structure for easy access. The frame is constructed from SUS304 stainless steel, while all components in contact with the product are made of high-quality SUS316L stainless steel to ensure zero contamination.
• Safety & Maintenance: The machine is easy to clean and features an automatic fault alarm system. For operator safety, the machine will automatically shut down if the protective safety guards are not closed.

II.Components & Features

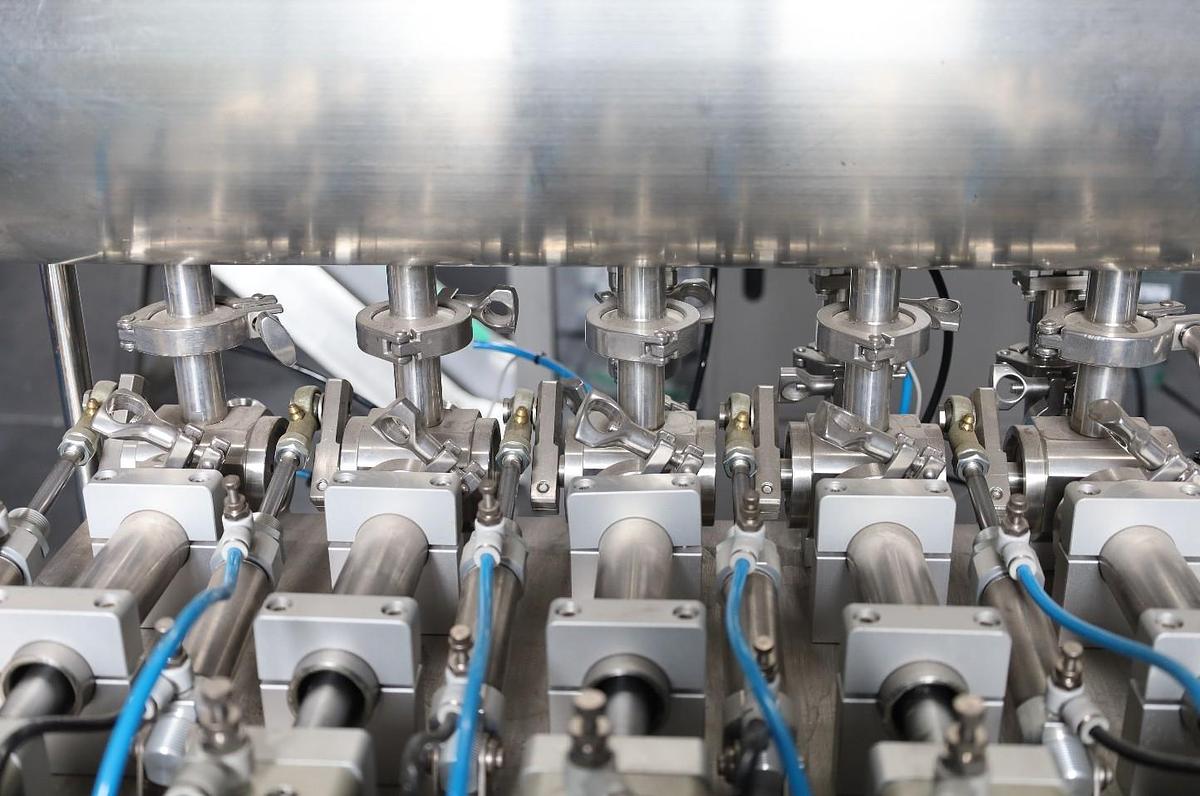

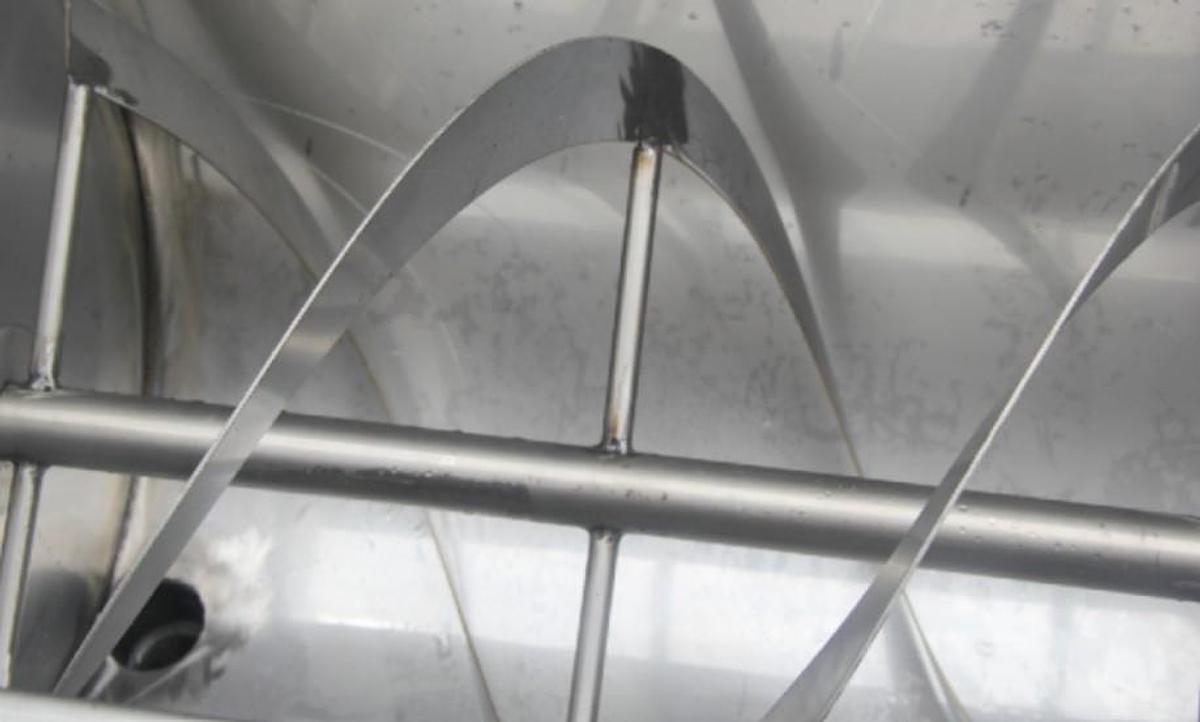

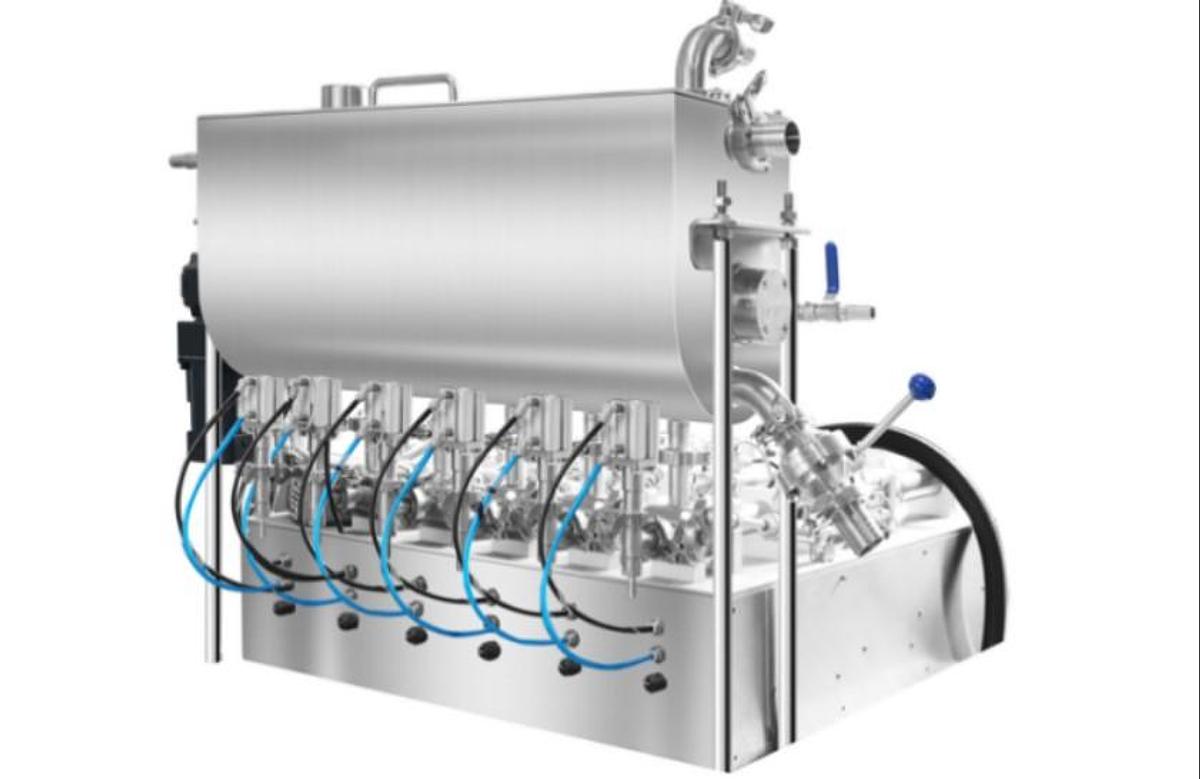

• Filling System: Independent piston pumps per lane. Double-jacketed insulated hopper with bi-directional agitation. Tool-less quick-release design for sanitary cleaning.
• Hopper Options: Optional adjustable-speed stirring (horizontal/vertical) and temperature-controlled heating for low-flow materials.

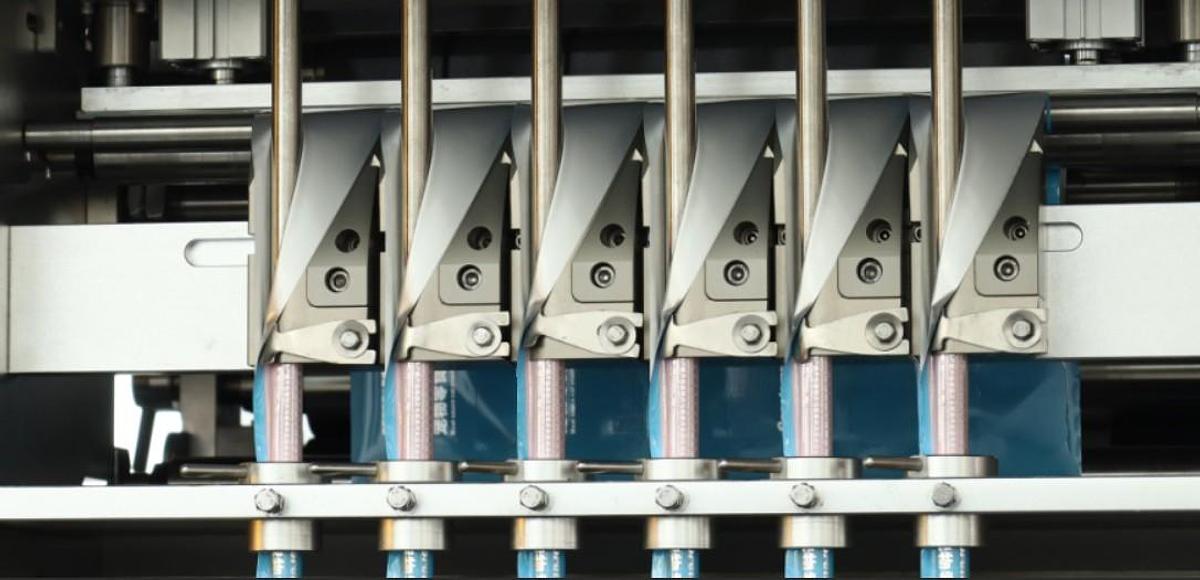

• Bag Former: Specialized integrated design for high stability.
• Vertical Seal: Intelligent temp control for uniform, airtight seals. Bars auto-open on standby to prevent film/product scorching.

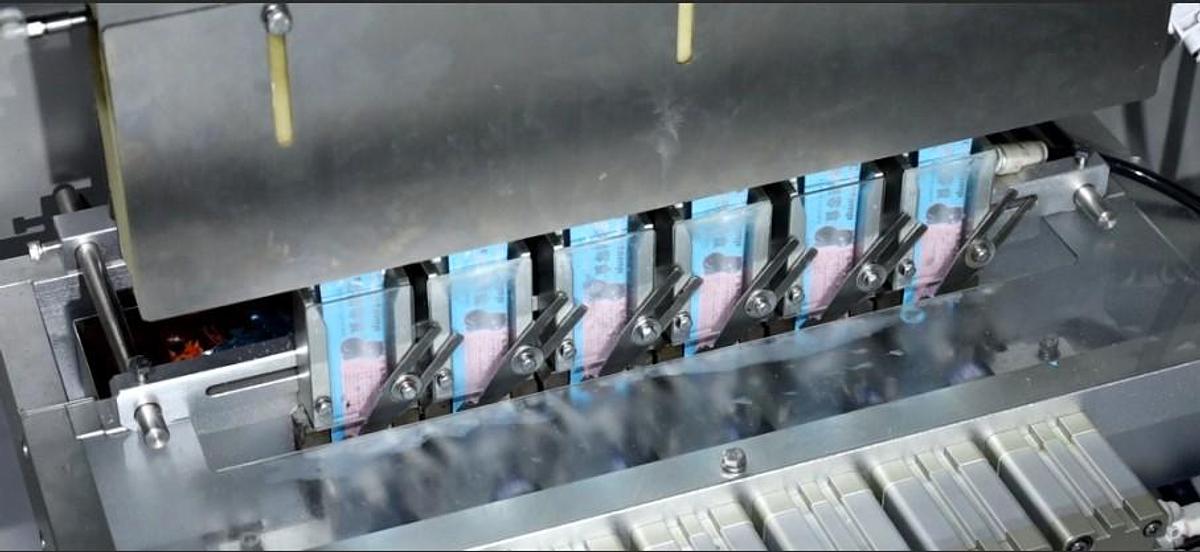

• Horizontal Seal: Servo-driven for stable pressure and high precision. Compatible with multi-layer films (PET/AL/PE, NY/PE, etc.).
• Laser Coder: UV laser. Touchscreen UI with USB/Ethernet connectivity for easy data loading.
• Round Corner Die: Made of Japanese steel via high-precision Wire EDM for clean cuts.
• HMI: 12-language support. Intuitive operation with real-time speed/batch tracking and 100-parameter memory.
• Certification: GMP compliant. Machine is CE certified; electrical components are CUL certified.

III. Workflow

• Film Loading: Manual installation of the packaging film onto the air-expansion shaft of the unwinding mechanism.
• Auto-Feeding: Materials are fed via a servo rotor pump. The level sensor triggers automatic refilling when low and stops once the hopper is full.
• Dosing: Quantitative filling via pneumatic piston pumps.
• Sealing & Cutting: Longitudinal and transverse sealing (with easy-tear notches) followed by round-corner (die-cut) trimming.
• Full Cycle: Automated completion of feeding, metering, discharging, date coding, bag forming, sealing, cutting, and finished product conveying.
