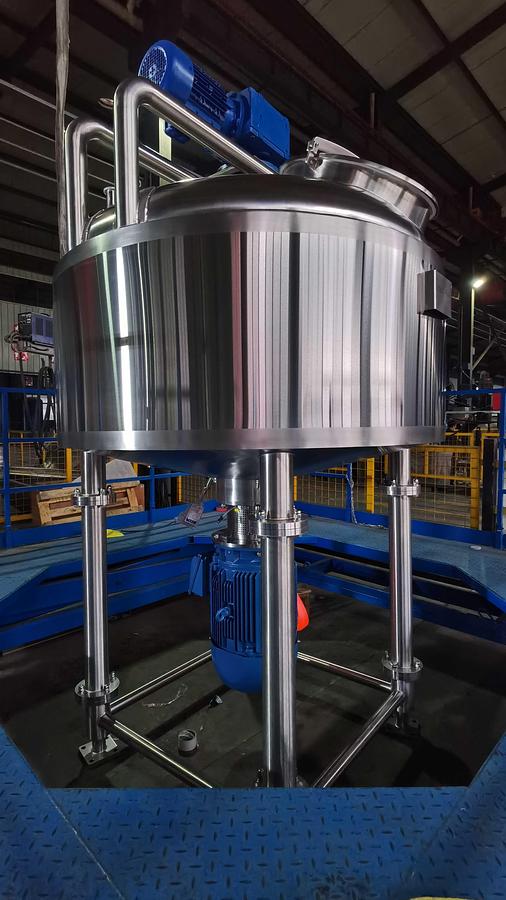

300 Gallon Jacketed High Shear Liquefier – ASME Rated, CRN register
300 Gallon Jacketed High Shear Liquefier – ASME Rated, CRN register
Contact us for price
Location:Ontario, CA
Description
Hongda provides complete processing and packaging equipment and solutions, with robotic integration for fully automated production lines. Learn more at www.hongdaamerica.com.
*Sanitary configuration.
*Constructed of stainless steel 316L for product contact areas, 304 for other parts.
*Steam jacket is ASME-U Stamped at 125 Psi and NB registered. Equipped with steam in, condensate out.Rock wool 2" thick insulation jacket with outer sheathing.
*With safety grate and flush mount RTD sensor
*Tank body to have four legs configuration with flanged feet.

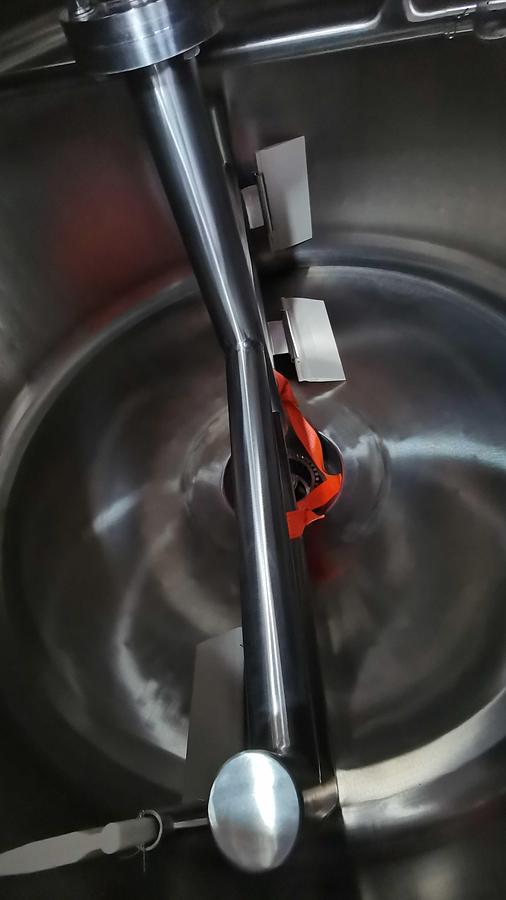

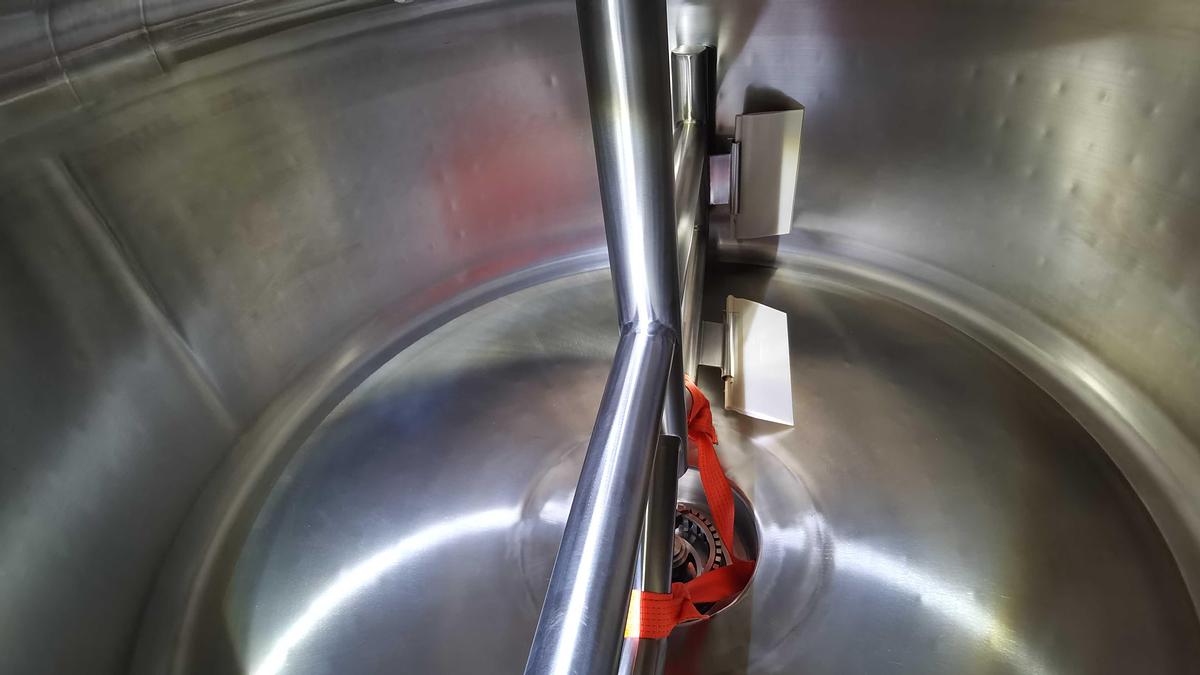

*Top agitation is scraping blade surface type.

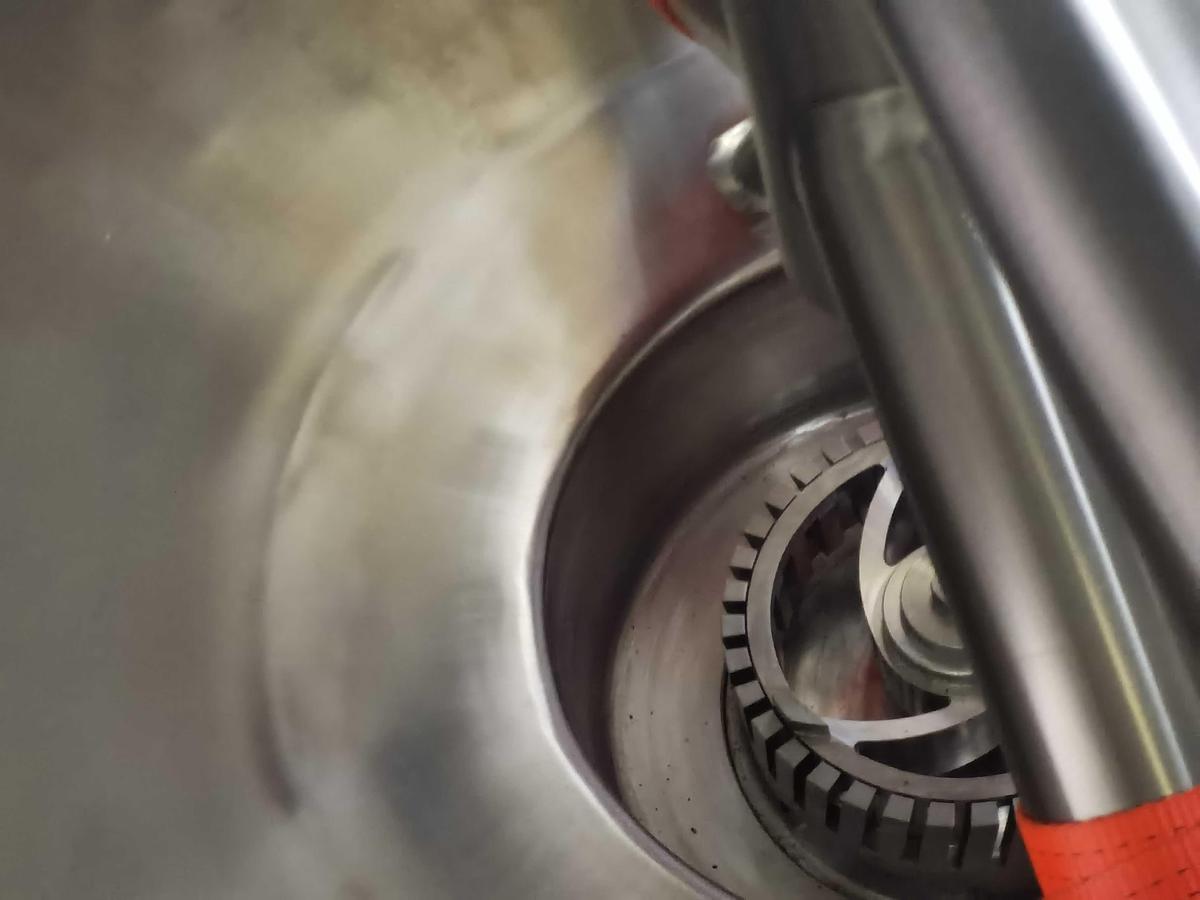

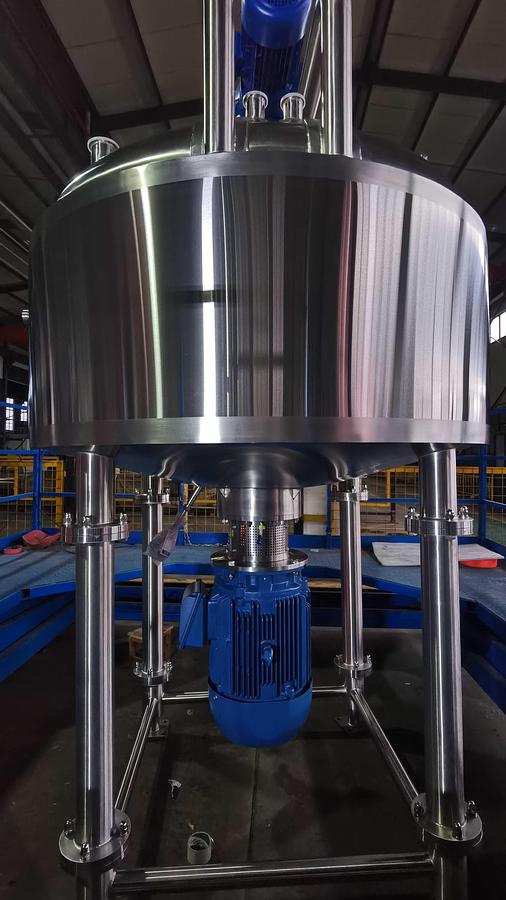

*Bottom high shear Emulsifying head.

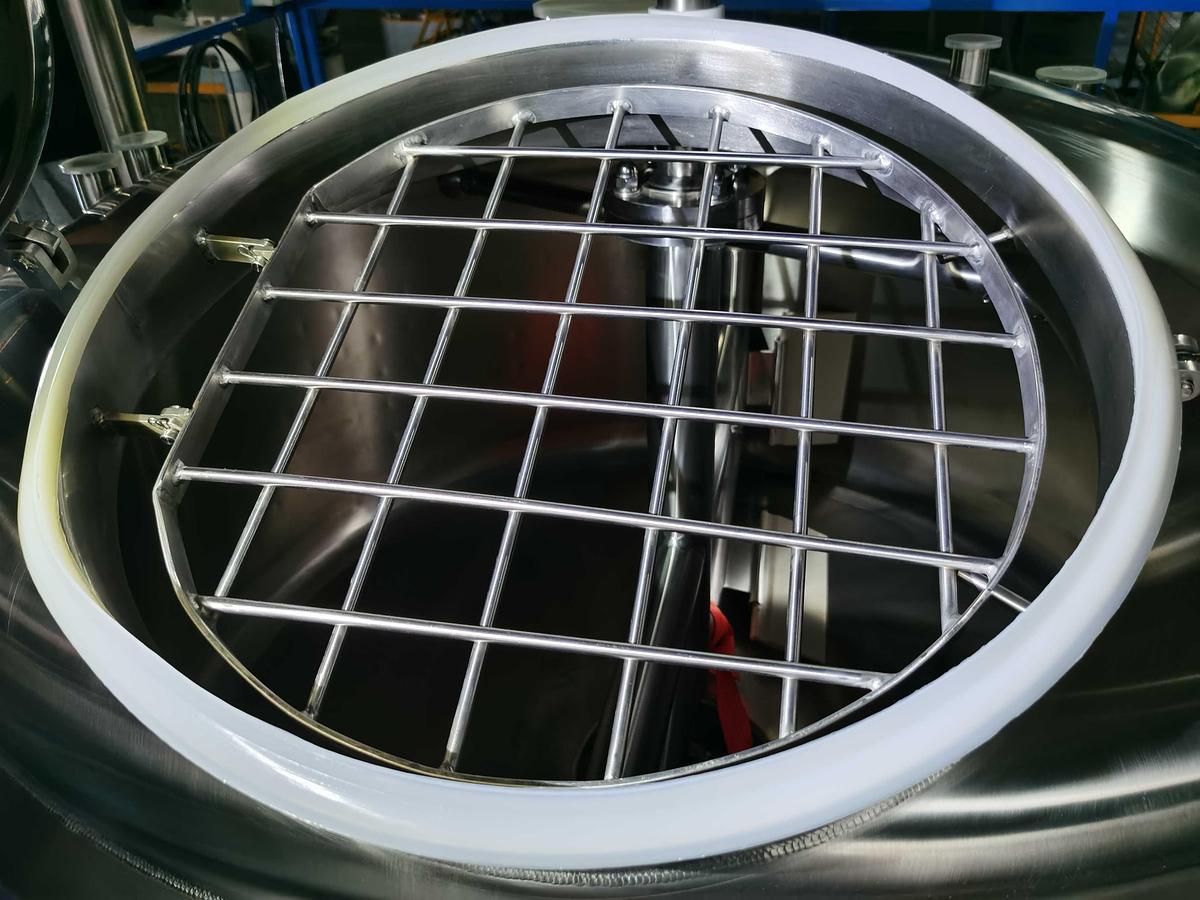

*Top manway with safty grate.
*With spray balls.
*Break/flange in the legs.
*Flush thermometer & probe thermometer.
Specifications
| Manufacturer | Hongda |
| Model | Kettle |
| Year | 2026 |
| Condition | New |
| Stock Number | 0 |
| Material | Stainless steel 316 for product contact area, 304 for other parts |
| Heat transfer surface | Jacket rated at 125 Psi with ASME-U stamped and NB registered. CRN Optional. |
| After-sales service | 2 Year warranty |
| Surface treatment | Sanitary internal polished finish |
| Drive | UL listed drive |
| Agitator | Top scraping blade type agitator. |
| Controller | Optional |
| CIP cleaning | Spray balls included |
| Discharge | Flush mount ball valve, Pneumatic operate optional |
| Termperature sensor | Flush mount RTD sensor |
| Safety | With safety grate. |
