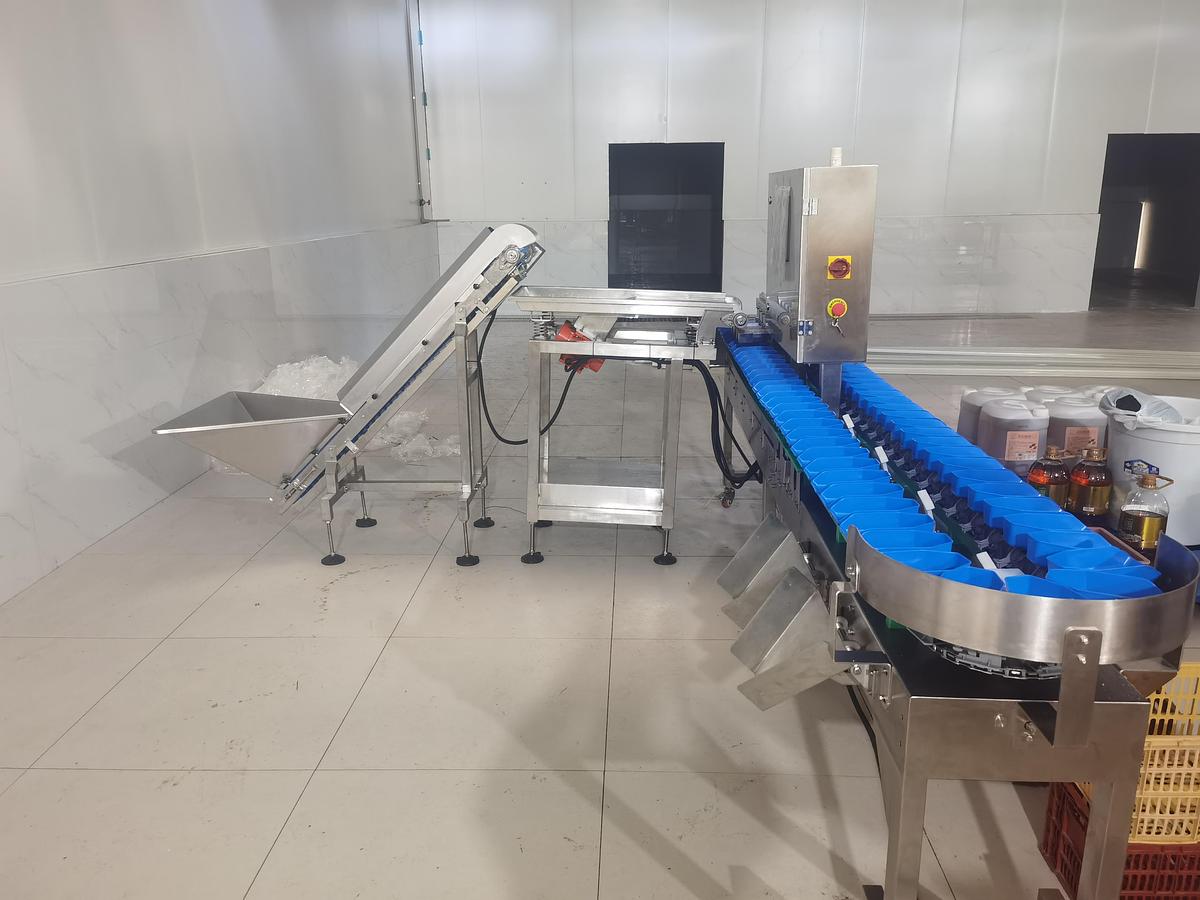

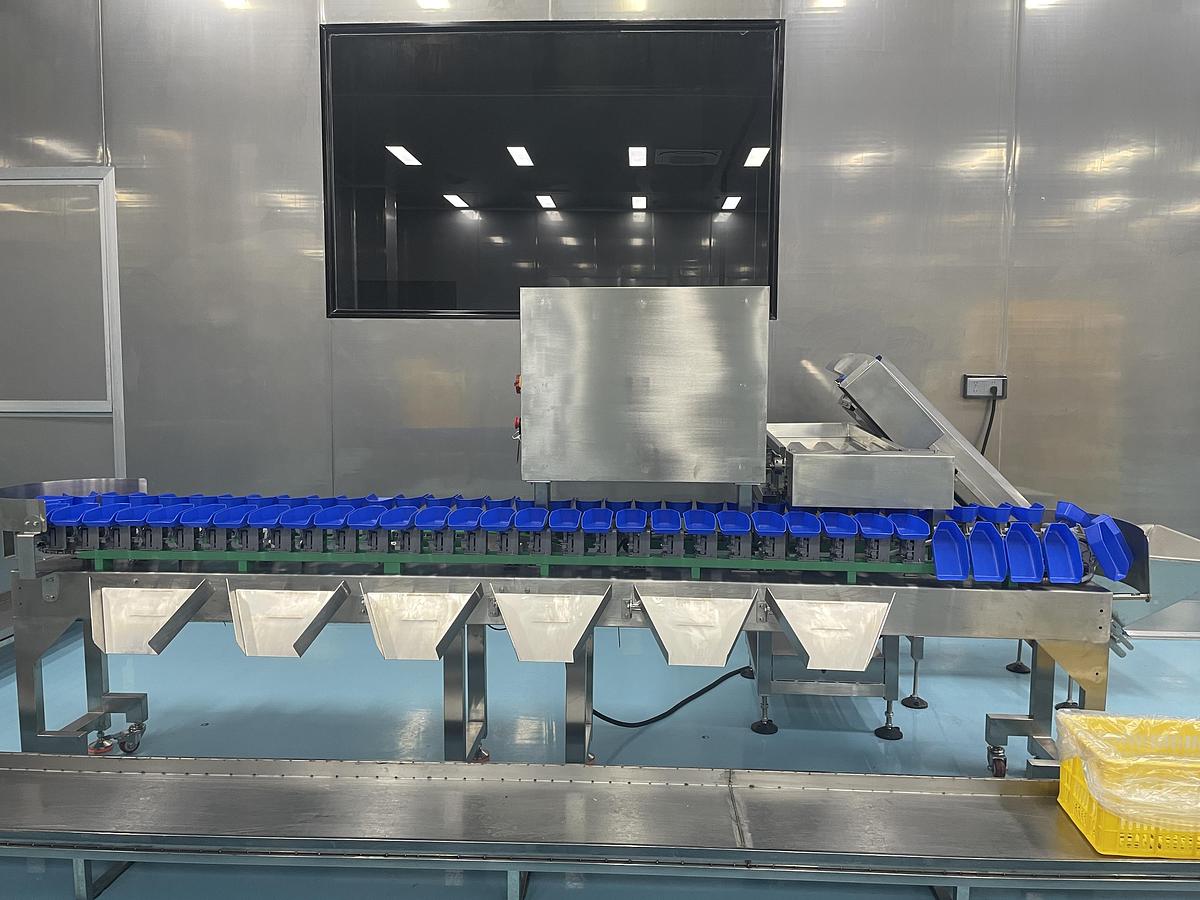

8-channel Rotary Weight Grading Machine
8-channel Rotary Weight Grading Machine
Contact us for price
Location:Ontario, CA
or
Call +1(626)320-2070
Description
Hongda provides complete processing and packaging equipment and solutions, with robotic integration for fully automated production lines. Learn more at www.hongdaamerica.com.
Application Range
- The rotary multi-stage weight sorting machine is more suitable for grading and sorting small-sized products, such as chicken legs, chicken wings, chicken nuggets, sea cucumbers, squid, squid slices, abalone, small fish, shrimp, etc.
Features
- High speed and high accuracy
- Efficient and economical, with multi-stage weight sorting and automatic weighing
- Standard interfaces reserved for easy data management
- Tray material and size can be customized
- Supports low-pressure water washing, and corrosion-resistant
Specifications
| Year | 2026 |
| Condition | New |
| Stock Number | 367 |
| Single weighing range | ≤ 3.53 oz (≤ 100 g) |
| Capacity | 2.7 tons per hour |
| Weighing accuracy | ± 0.018 oz (± 0.5 g) |
| Maximum speed | 250 pcs/min |
| Sorting levels | 8 levels (customizable) |
| Tray size | ≤ 6.69 in (L) × 3.15 in (W) (≤ 170 mm × 80 mm) |
| Reject method | Swing-arm reject system |
| PLC Control system | Siemens |
| Preset product numbers | 19 |
| Frame material | SUS304 stainless steel |
| Protection rating | IP65 |
| Machine dimensions | 142 in (L) × 37 in (W) × 64 in (H) |
| Tray height | 35.4 in (900 mm) |
