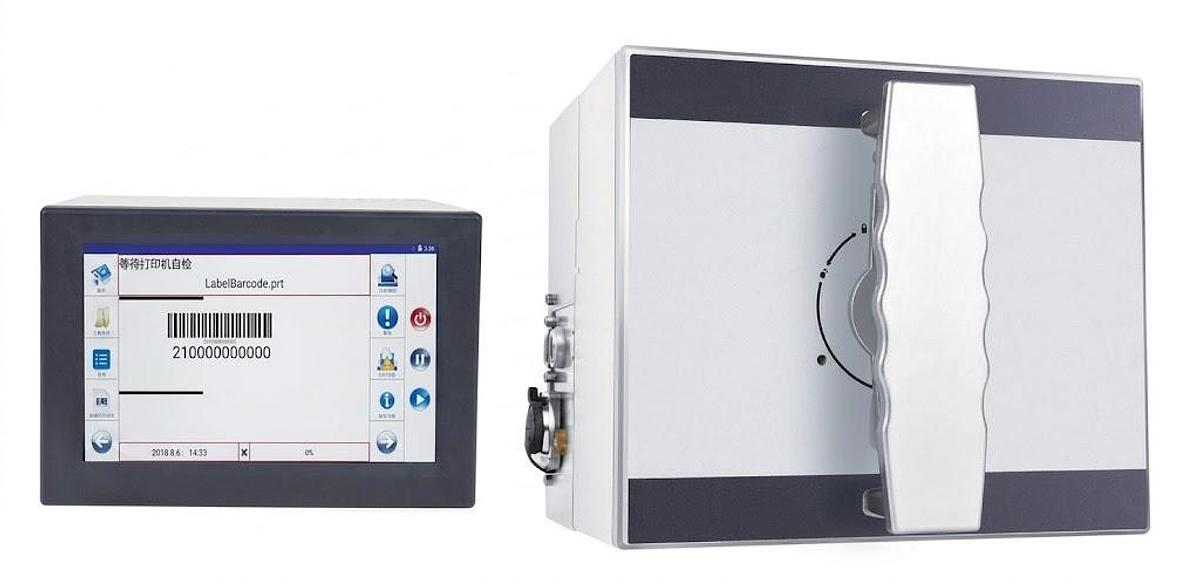

Thermal Transfer Overprinter (TTO)

Hongda provides complete processing and packaging equipment and solutions, with robotic integration for fully automated

production lines. Learn more at www.hongdaamerica.com.

Application

• Suitable for flexible packaging applications in food, pharmaceutical, personal care, and household products.

Features:

• Supports extra-wide ribbons from 20–50 mm for optimized ribbon usage
• Includes Format Designer software with automatic ribbon optimization
• Patented ribbon-saving function reduces ribbon waste
• Real-time monitoring of utilization, ribbon status, and printhead detection
• 1100 m standard ribbon length for extended runtime
• Intelligent data input for faster and more accurate operation management
• Cost-effective printhead maintenance
• Durable and reliable ribbon cassette structure with fewer wear parts
• Operates at 2.5 bar air pressure with compressed air consumption below 0.4 ml per print, reducing usage by up to 50%
• Smart printhead with automatic setup and printhead detection functions
• Unique code can be printed on each package
• Printing speed up to 600 mm/s
• 300 dpi resolution

Detection & Monitoring

• Ribbon tension monitoring
• Thermal print position monitoring
• Cover-open detection
• Over-temperature detection
• Ribbon break detection

Ribbon Specifications

• Core Size: 1" core, maximum ribbon length 1100 m
• Ribbon Type: Mixed wax/resin
• Ribbon Width: 0.79"–2.17" (20–55 mm)
• Ribbon Saving Functions: Supports interleaved, radial, and multi-print savings, plus ribbon retraction mode
• Ribbon Gap Between Prints: <0.02" (0.5 mm)

Dimensions & Weight

• Print Unit: <7.5" × 8.7" × 9.3" (190 × 220 × 236 mm), <17.6 lbs (8 kg)
• Controller: <6.7" × 10.4" × 7.5" (170 × 263 × 190 mm), <11 lbs (5 kg)

Warranty

• Print Unit: 3 years
• Controller: 3 years
• Printhead: 6 months or 50 km
• Rubber Roller: 5 years

Reliability & Service Life

• Printhead Service Life: 100 km
• Rubber Roller Service Life: 10,000 km
• PCBA Service Life: 30,000 hours
