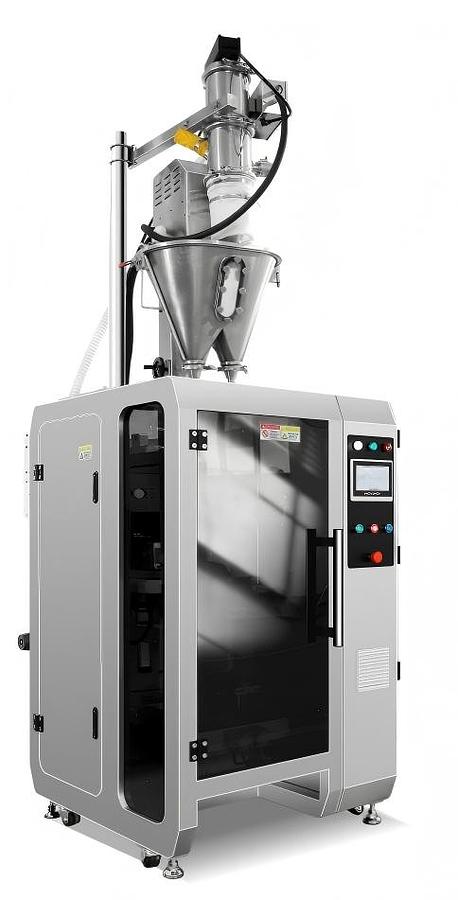

Multi-lane Powder Packaging Machine

Hongda provides complete processing and packaging equipment and solutions, with robotic integration for fully automated production lines. Learn more at www.hongdaamerica.com.

Machine Features

• Clean and Low-Noise Operation: Designed for a clean working environment with low noise during operation.
• Fully Automatic Packaging Process: The machine can automatically complete product dosing, bag forming, sealing, date coding, cutting, and other packaging processes.
• Stable PLC Control System: Equipped with a motion bus PLC control system and a multilingual touchscreen interface, providing intuitive operation and stable performance.
• Easy Parameter Adjustment and Product Changeover: Parameters can be adjusted without stopping the machine. The system displays production speed and batch quantity, and includes fault self-diagnosis. Up to 100 sets of parameters can be stored for quick and convenient product changeover. An Ethernet port is available for connection to the EMS/MES system.
• Servo-Controlled Bag Pulling System: The heat-sealing and bag-pulling system is driven by bus servo motor. Bag length can be adjusted directly on the touchscreen without replacing mechanical parts, ensuring high accuracy and easy operation.
• High-Precision Photoelectric Tracking: Equipped with a high-performance SICK photoelectric tracking system, ensuring accurate positioning and complete trademark patterns when using printed film with color marks.
• Hygienic and Safe Machine Design: The open mechanical structure allows easy cleaning and maintenance. All product-contact parts are made of high-quality 304 stainless steel to prevent contamination. The machine is designed to meet GMP and food safety requirements. It also features automatic fault alarms and safety interlock protection. The machine stops automatically if the protective cover is not closed, complying with CE safety standards.
• Efficient Auger Dosing System: Equipped with customized auger dosing system, providing fast filling speed and filling accuracy of ±0.5%.

Product Features

• Customized Filling System: The filling system is customized based on product characteristics and test results to ensure high accuracy, smooth material flow, and reliable dosing performance.
• Customized Bag Forming Structure: The forming mold, film-pulling structure, bag size, sealing method, and related components can be customized according to the bag type, material characteristics, and filling weight.

Applicable Industries

• This machine is suitable for automatic packaging of loose powder products in the food, pharmaceutical, and chemical industries, such as medicinal granules, probiotics, protein powder, meal replacement powder, spirulina powder, instant coffee powder, lotus root powder, tea powder, pearl powder, seasonings, and other similar products.

Workflow

• Film Loading: The operator manually loads the packaging film roll onto the air shaft of the film unwinding unit.
• Automatic Material Feeding: The operator adds material to the vacuum feeder. When the level sensor of the linear scale does not detect material, feeding starts automatically; when sufficient material is detected, feeding stops. The powder is then automatically transferred into the hopper.
• Dosing and Filling: The product is accurately measured and filled by the auger dosing system.
• Sealing and Cutting: The machine completes vertical sealing with an easy-tear notch and round-corner cutting, as well as horizontal sealing with an easy-tear notch.
• Automatic Packaging Process: The machine automatically completes material feeding, dosing, filling, date printing, bag forming, sealing, cutting, and other packaging processes.
