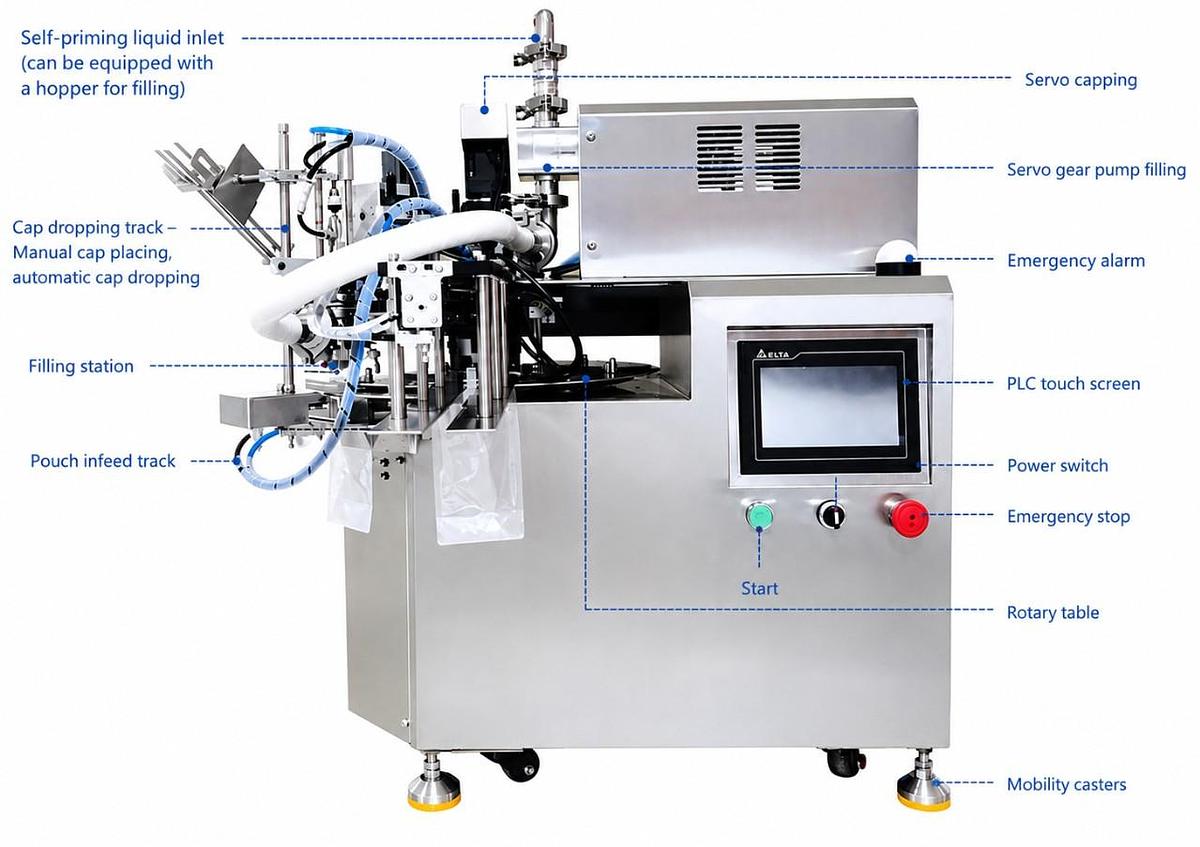

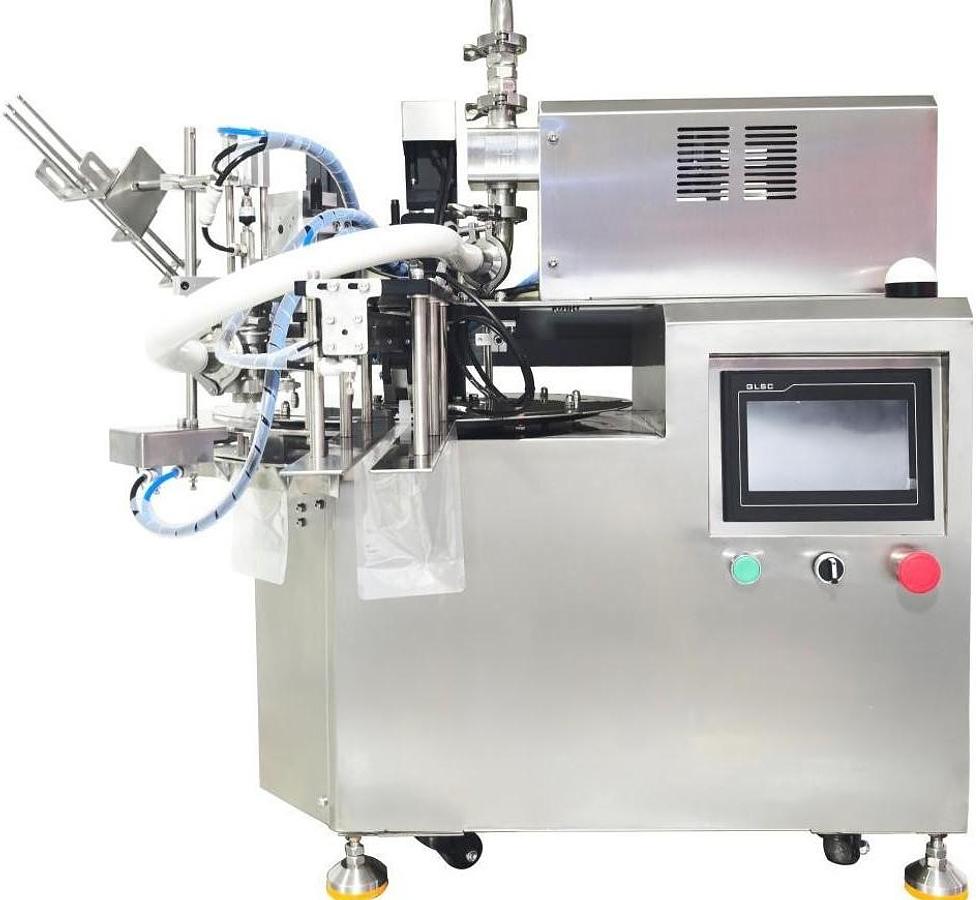

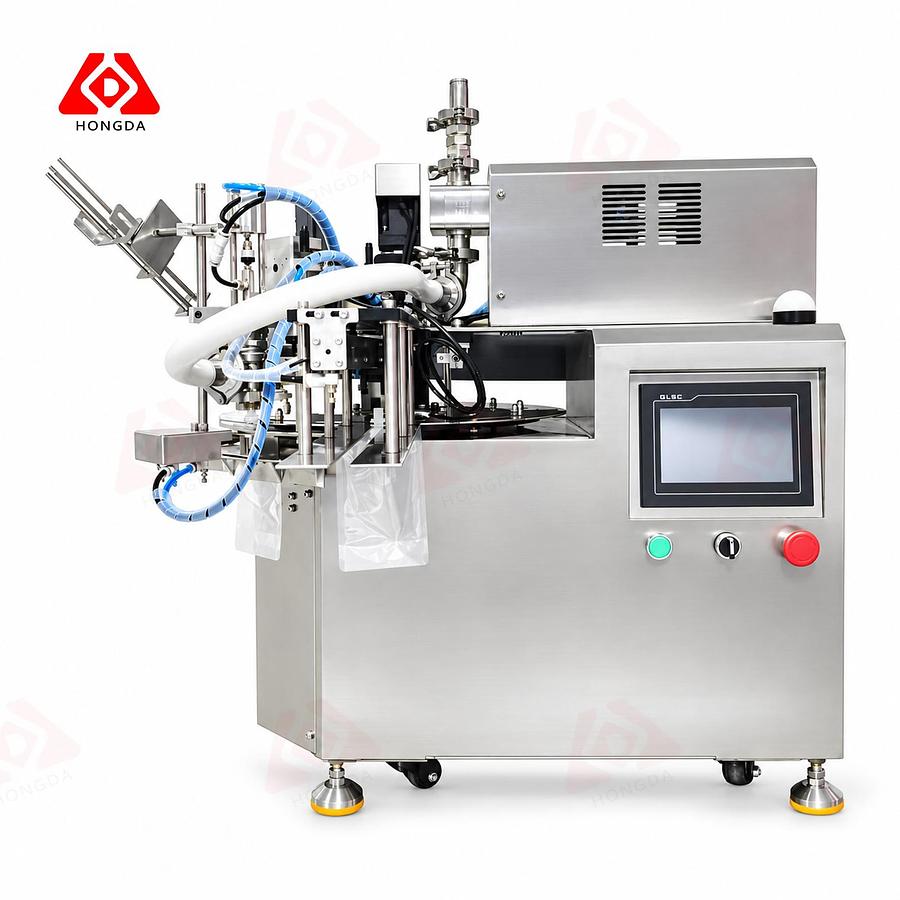

Name: Tabletop Single-Head Spouted Pouch Filling and Capping Machine
SKU: 10
Availability: InStock

Hongda provides complete processing and packaging equipment and solutions, with robotic integration for fully automated

production lines. Learn more at www.hongdaamerica.com.

Scope of Application:

Suitable for liquid and medium-viscosity paste products in industries such as personal care, food, cosmetics, pharmaceuticals, and chemicals.

English-language touchscreen interface for simple and intuitive operation.
PLC control system ensures stable operation and allows parameter adjustments without stopping the machine.
Stores up to 20 sets of parameters for quick and accurate product changeovers.
Servo-driven filling system provides high filling accuracy and consistent performance.

Model	YL1
Year	2026
Condition	New
Stock Number	10
Applicable Products	Liquids and pastes
Filling Pump	Gear pump (316 stainless steel for product-contact parts) or piston pump
Filling Range	Gear Pump: 30–2,000 mL; Piston Pump: 30–300 mL / 50–500 mL / 100–1,000 mL
Hopper Capacity	30 L (7.9 gal); self-priming directly from a supply container is available when using a gear pump
Center-Spout Pouch Size	Width: 2.4–9.4 in (60–240 mm); Height: 2.4–11.8 in (60–300 mm)
Corner-Spout Pouch Size	Width: 2.4–14.2 in (60–360 mm); Height: 2.4–12.6 in (60–320 mm)
Production Speed	20–30 pouches/min
Power Supply	200-240Vac,50/60Hz，1.8KW
Machine Net Weight	180 lbs
Aluminum Components	Anodized aluminum
Machine Frame	304 stainless steel
Product-Contact Parts	304 SS for piston pump / 316 SS for gear pump
Indexing System	Cam indexer
Machine Dimensions (L × W × H)	35 × 34 × 32 in

Tabletop Single-Head Spouted Pouch Filling and Capping Machine
