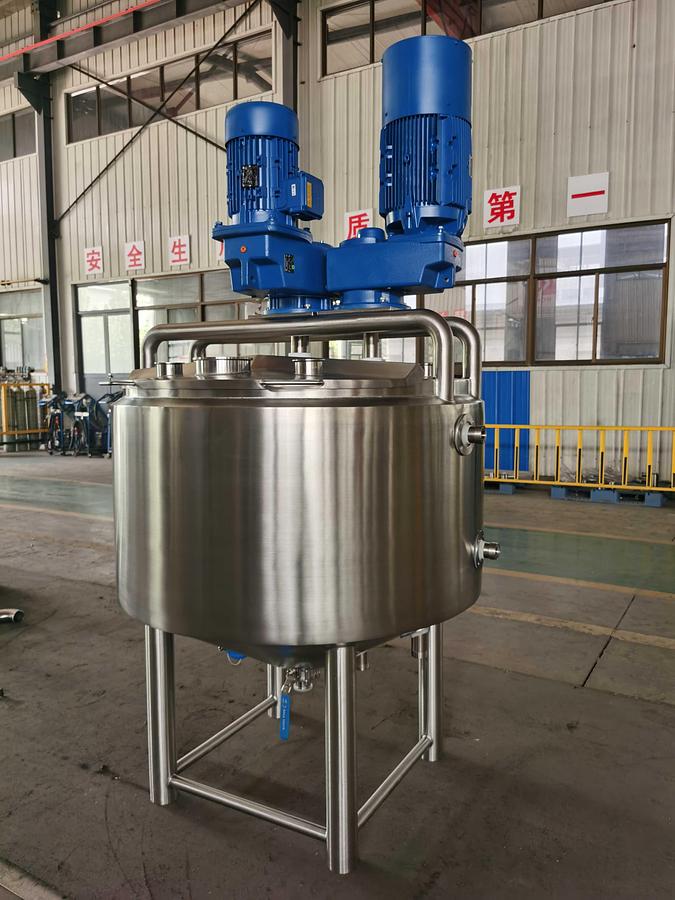

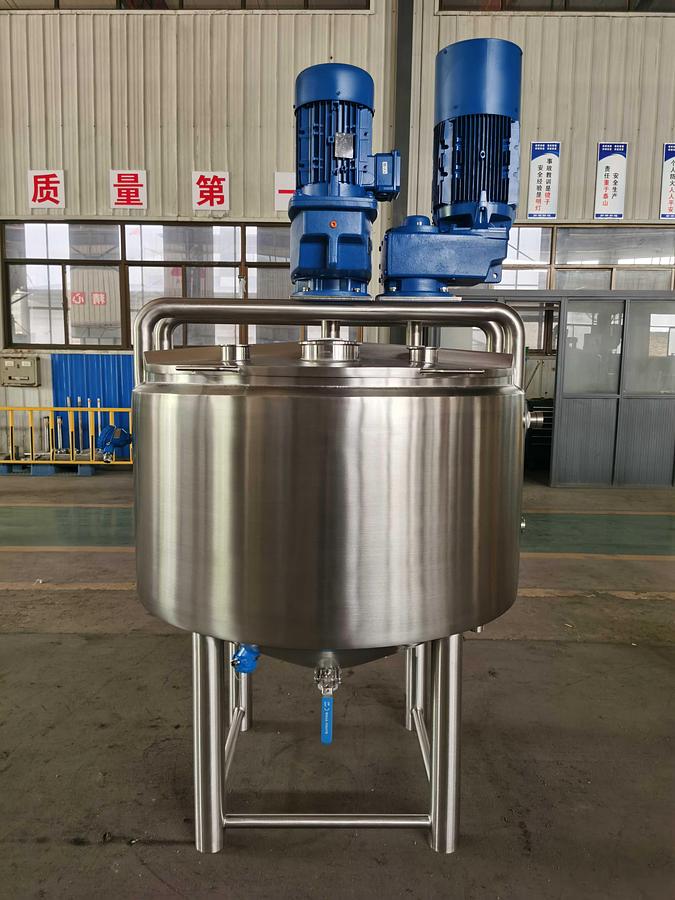

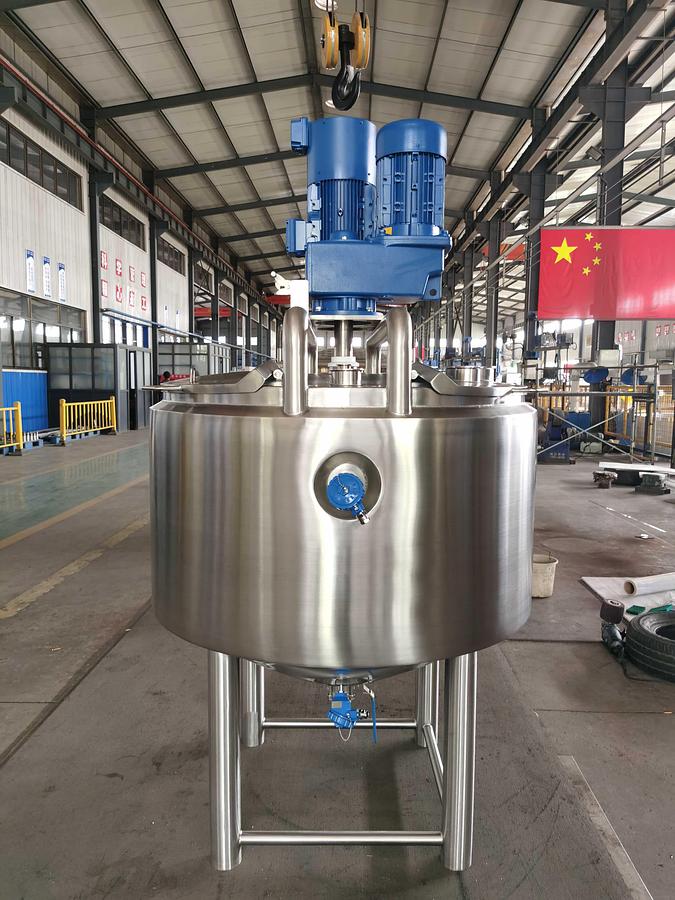

New 100 Gallon Steam Jacketed Cone Bottom Kettle: High Shear Disperser &Scraper Blade
New 100 Gallon Steam Jacketed Cone Bottom Kettle: High Shear Disperser &Scraper Blade
Contact us for price
Location:California
or
Call +1(626)320-2070
Description
Hongda provides complete processing and packaging equipment and solutions, with robotic integration for fully automated production lines. Learn more at www.hongdaamerica.com.
100 Gallon high shear mixing tank Motor：UL listed drive. Material：SUS316L for prodcut contact surface. SUS304 for non-prodcut contact surfare.

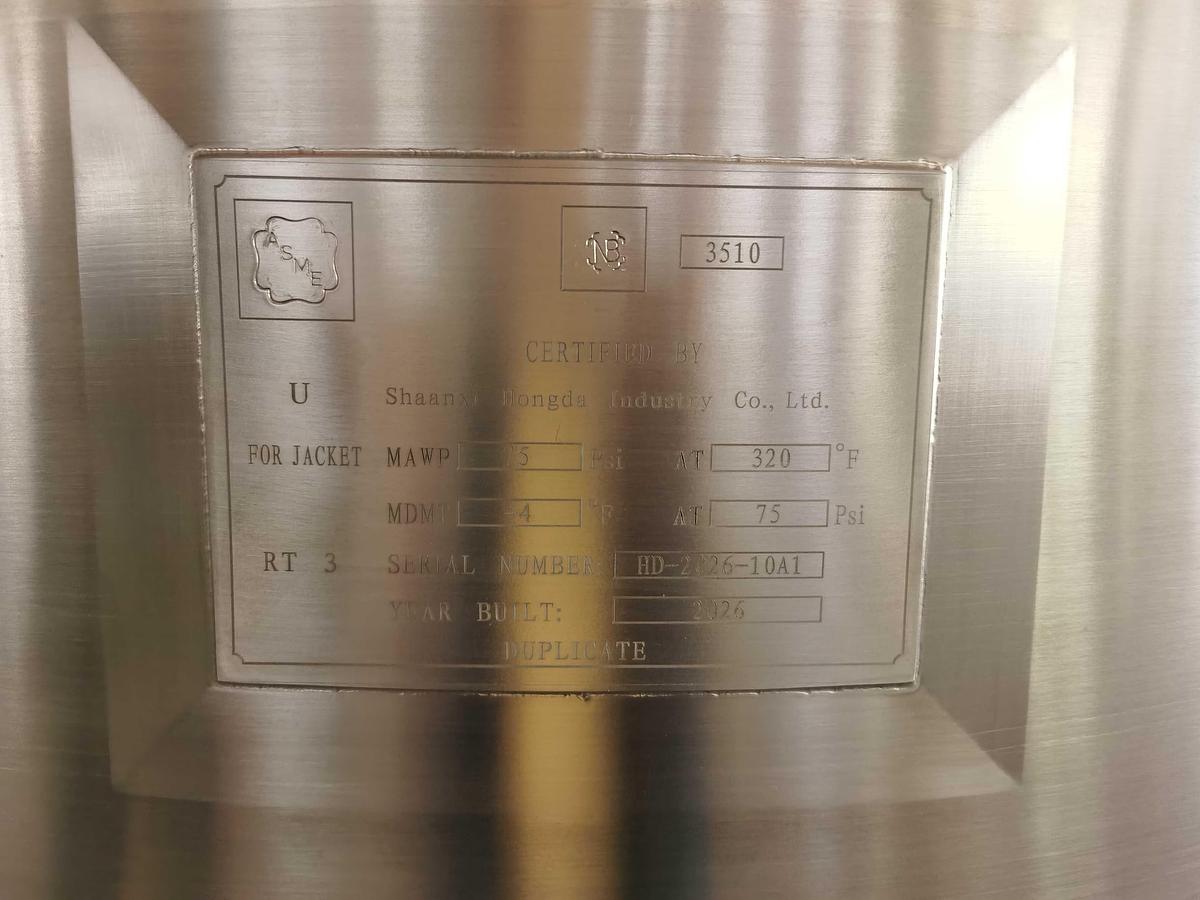

Jacket: ASME-U stamped jacket rated at 75 Psi with NB register.
Insulation: 2" rockwool insulation with outter sheathing

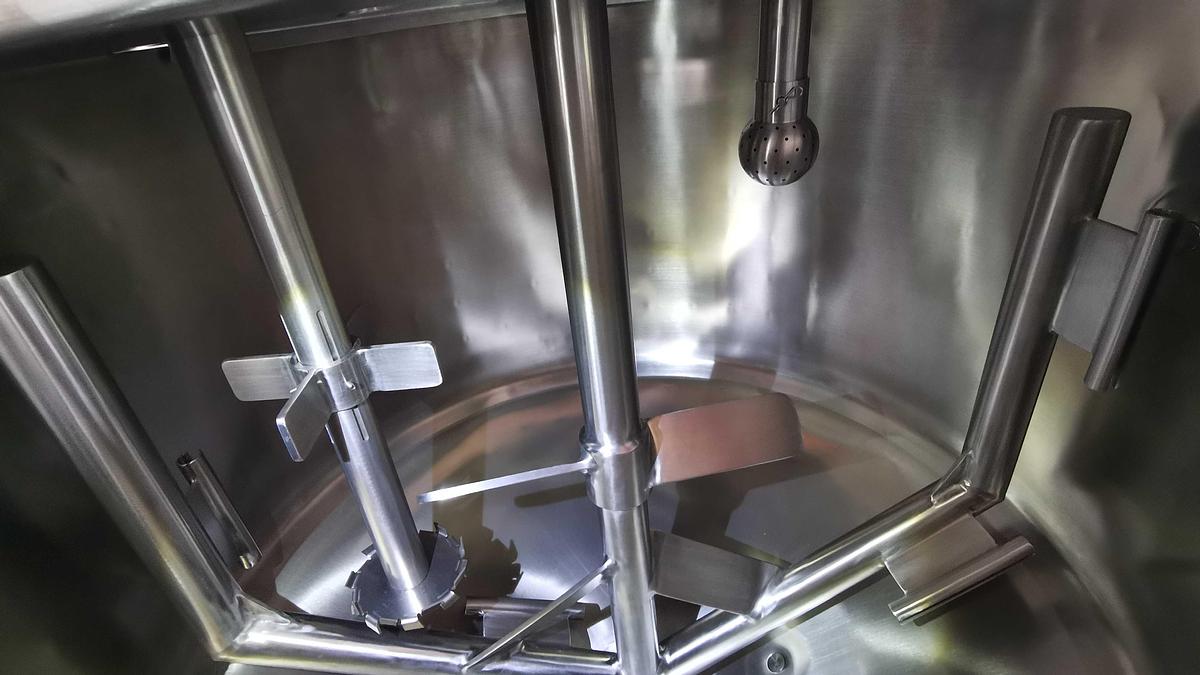

Triple agitation: Main agitator is scraper balde type,5HP 28RPM. High shear disperser type with 10HP 390RPM. Finish：#4 finish.
CIP: WIth 2 Spray balls. Legs：Adjustable stainless steel legs
Specifications
| Manufacturer | Hongda |
| Model | 300 USG |
| Year | 2026 |
| Condition | New |
| Stock Number | 1 |
| Interior construction | 316L Stainless Steel, with #4 finish. |
| Exterior construction | 304 Stainless Steel, with #4 finish. |
| Heat transfer surface | Side and bottom stainless steel dimple jacket rated for 75 psi. |
| Insulation | Rock wool 2" thick. |
| Vertical agitation | Double agitators.Main agitator is scraper balde type,5HP 28RPM. High shear disperser type with 10HP 390RPM. |
| Motor | UL listed brand |

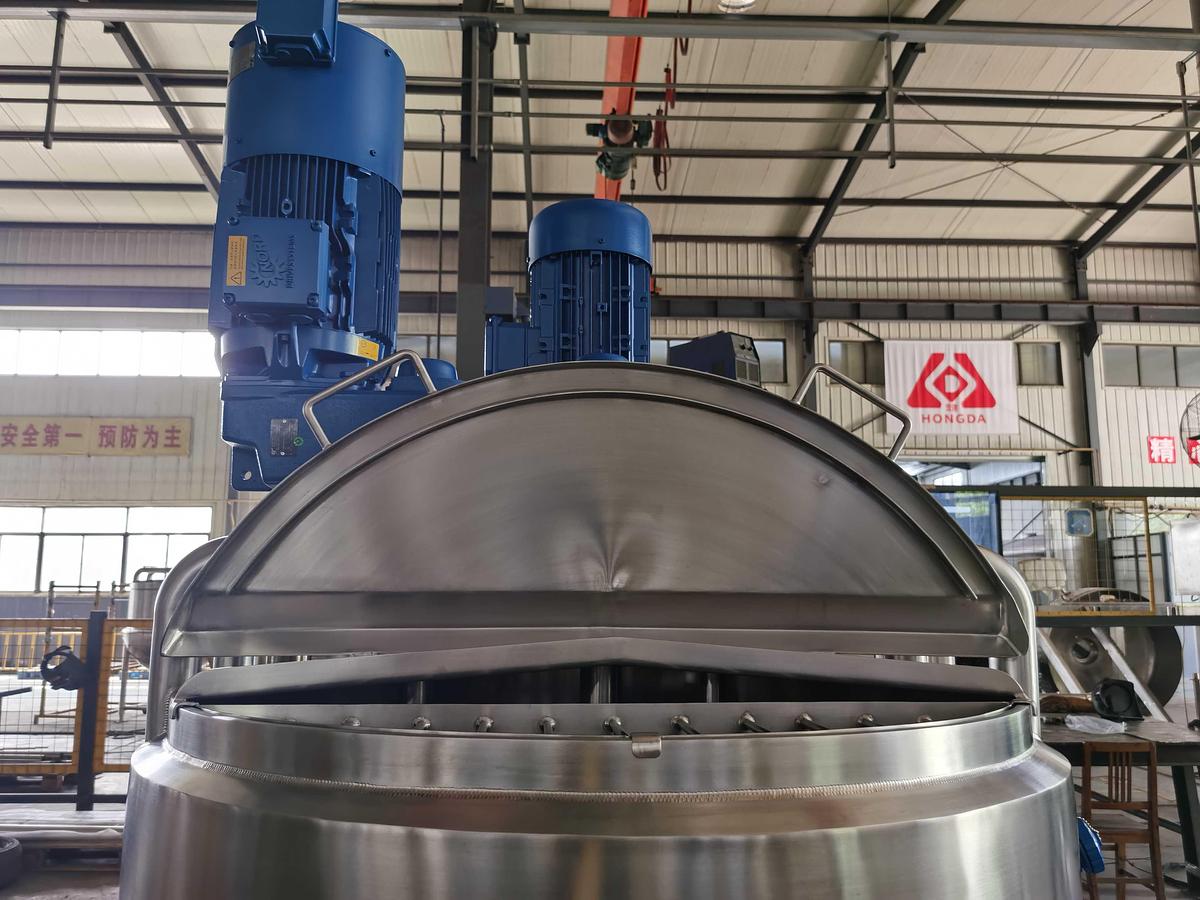

| Tank top | Inverted cone with 15 degree slope head with double open hinged lids, CIP cleaning. |
| Tank bottom | Conical with 15 or 30 degree slope and center outlet, flat bottom structure optional. |
| Inlet/outlet ports | Sanitary clamp connections. |
| Temperature indicating | 1/2" FNPT and 1 1/4" UNEF temperature sensor interface. |
| Legs | Adjustable stainless steel legs. |
| Delivery time | In stock |
| Packing size | TBD |
