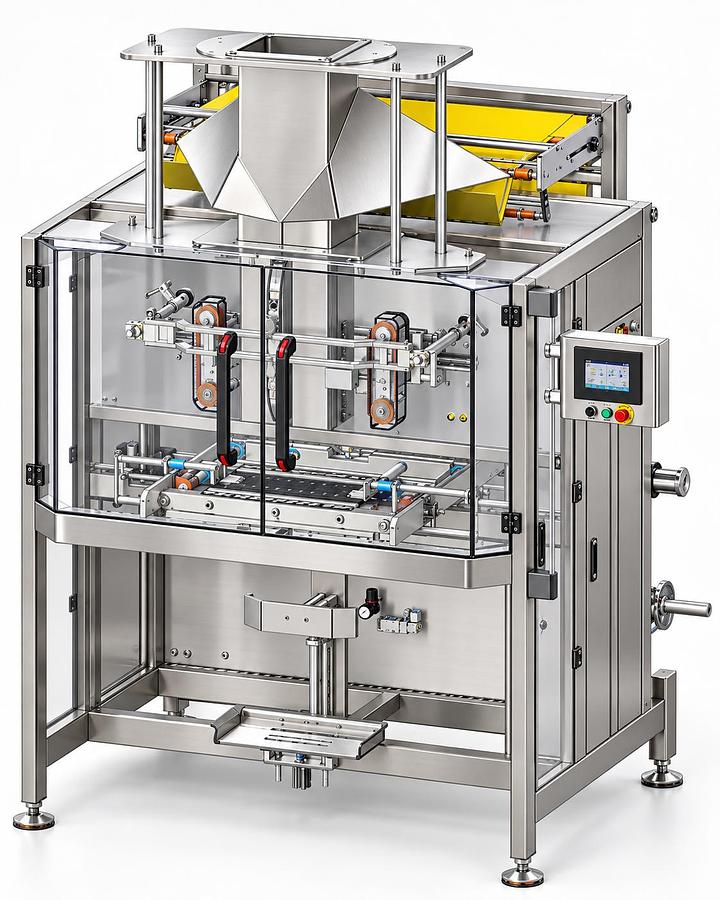

Vertical Packaging Machine ZV1200

Hongda provides complete processing and packaging equipment and solutions, with robotic integration for fully automated

production lines. Learn more at www.hongdaamerica.com.

1. Machine Function Overview

• This machine is designed for automatic coding, bag forming, air filling/exhausting, and packaging. When integrated with a weighing or dosing system, it can meet fully automatic packaging requirements for a wide variety of products, including granules, powders, and liquids.
• Typical applications include rice, mixed grains, pet food, chemical plastic granules, and other similar products.

2.Features

• Back-seal design provides an attractive bag appearance and stable bag forming.
• Newly upgraded design with an improved appearance and more practical structural layout.
• PLC control system with color touchscreen HMI for easy, intuitive operation.
• Servo film-feeding system with color-mark sensor ensures accurate positioning and consistent package appearance.
• Multiple bag styles available, including pillow bags, gusseted bags, bags with hang holes, and chain bags.
• Automatic deviation correction saves time, reduces labor, minimizes film waste, and makes operation more intelligent.
• External film-roll mounting system allows quick and easy film installation and replacement.
• When integrated with the appropriate weighing/dosing system, the machine can automatically complete the full packaging process, including weighing, feeding, bag forming, filling, air filling/exhausting, date coding, and counting.
• Comprehensive automatic alarm and protection system helps identify and troubleshoot faults promptly while minimizing wear and equipment downtime.

3. Product Features

• The filling system is customized based on the product characteristics and test results to ensure high accuracy, smooth material flow, and precise dosing.
• Bag dimensions and sealing methods can be customized according to the bag style, product characteristics, and fill weight.
• After packaging, the product is better protected against oxidation, mold, spoilage, and moisture, helping maintain freshness and extend shelf life.

4.Working Process

• Manually load the packaging film roll onto the film shaft and install it according to the film-threading diagram.
• The machine works with the appropriate weighing/filling system for product feeding and filling.
• The machine performs vertical sealing (back seal) and horizontal sealing, with optional easy-tear notches, euro slots, or round hang holes.
• The machine automatically completes date coding, bag forming, sealing, and cutting.
