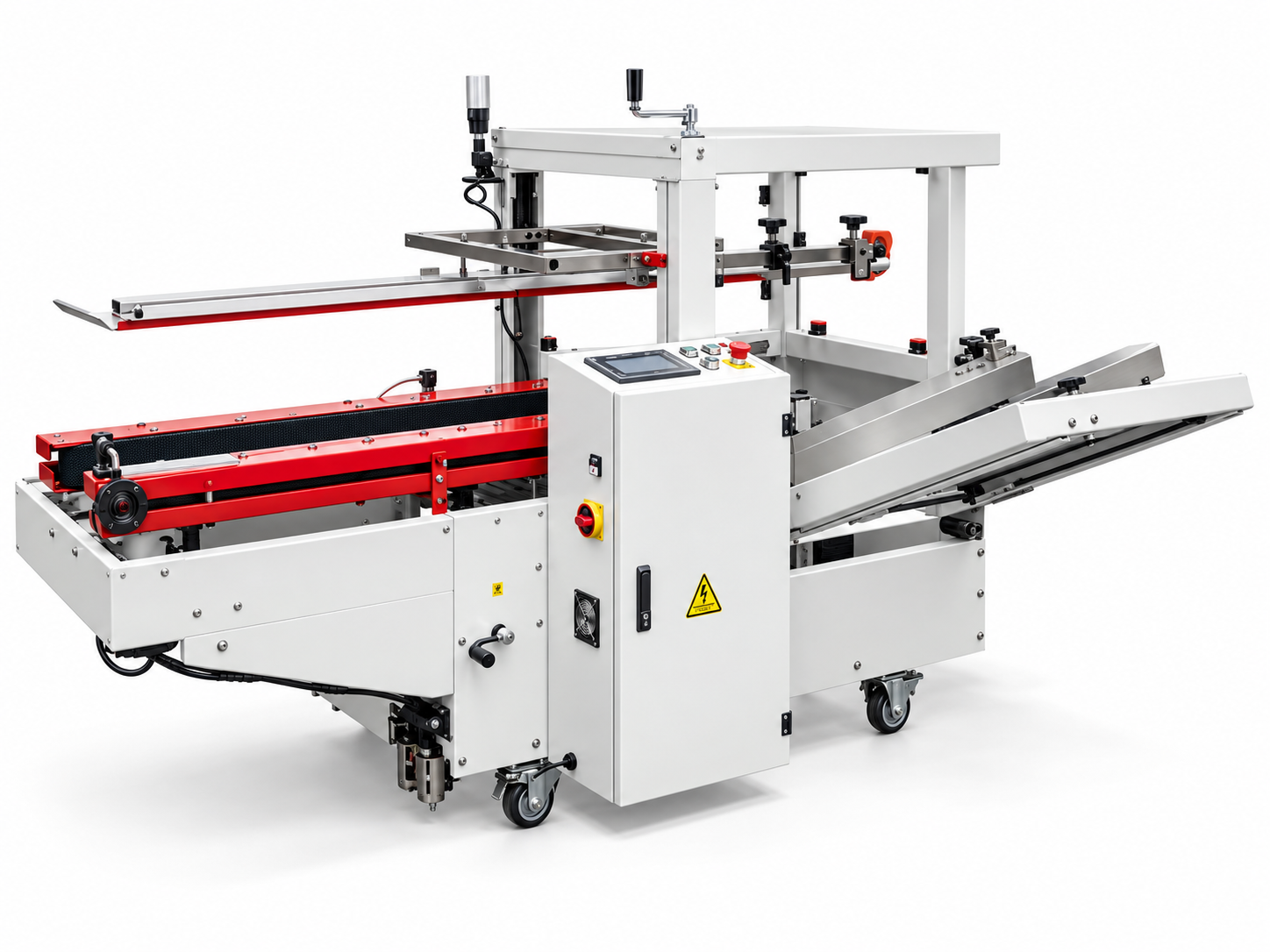

Servo-Driven High-Speed Carton Erecting Machine K20

Hongda provides complete processing and packaging equipment and solutions, with robotic integration for fully automated

production lines. Learn more at www.hongdaamerica.com.

Main Features

• Designed to meet production line requirements and floor layout specifications, featuring a robust structure and high-quality workmanship.
• Low power and compressed air consumption, with easy operation, adjustment, and maintenance.
• Equipped with comprehensive safety protection features, including overload protection and safety doors.
• Automatic alarms for missing adhesive tape and insufficient carton blanks.
• The carton magazine holds approximately 50 flat carton blanks (depending on carton thickness) and can be replenished during operation.
• The servo-driven carton pickup and pushing mechanism ensures fast, smooth, and accurate positioning for efficient, stable operation.

Size Changeover

• Standard:When changing carton sizes, the carton magazine, carton stops, and discharge width and height can be adjusted manually. The carton pickup and pushing positions can be switched with one touch via the touchscreen.
• Additional Cost:A fully servo-driven model with automatic size changeover can also be customized according to customer requirements.

Working Process

• Carton Pickup → Carton Erecting → Front & Rear Bottom Flap Folding → Left & Right Bottom Flap Folding → Bottom Tape Sealing
